MAN Diesel 4.09
Page 1 of 3
MAN Diesel
198 42 091.5MAN B&W K98MC/MC-C/ME/ME-C, S90MC-C/ME-C, K90MC-C/ME/ME-C,
S80MC/MC-C/ME-C, K80MC-C/ME-C, S70MC/MC-C/ME-C/ME-GI,
L70MC-C/ME-C, S65ME-C/ME-GI, S60MC/MC-C/ME-C/ME-GI/ME-B,
L60MC-C/ME-C, S50MC/MC-C/ME-C/ME-B, S46ME-B, S40ME-B, S35ME-B
L27/38 GenSet Data
Bore: 270 mm Stroke: 380 mm
Power layout
720 r/min 60 Hz 750 r/min 50 Hz
720/750 r/min
(MGO/MDO)
60/50 Hz
(MGO/MDO)
Eng. kW Gen. kW Eng. kW Gen. kW Eng. kW Gen. kW
5L27/38 1,500 1,440 1,600 1,536 - -
6L27/38 1,980 1,900 1,980 1,900 2,100 2,016
7L27/38 2,310 2,218 2,310 2,218 2,450 2,352
8L27/38 2,640 2,534 2,640 2,534 2,800 2,688
9L27/38 2,970 2,851 2,970 2,851 3,150 3,054
178 23 079.0
No. of Cyls. A (mm) * B (mm) * C (mm) H (mm)
**Dry weight
GenSet (t)
5 (720 r/min) 4,346 2,486 6,832 3,628 42.3
5 (750 r/min) 4,346 2,486 6,832 3,628 42.3
6 (720 r/min) 4,791 2,766 7,557 3,712 45.8
6 (750 r/min) 4,791 2,766 7,557 3,712 46.1
7 (720 r/min) 5,236 2,766 8,002 3,712 52.1
7 (750 r/min) 5,236 2,766 8,002 3,712 52.1
8 (720 r/min) 5,681 2,986 8,667 3,899 56.3
8 (750 r/min) 5,681 2,986 8,667 3,899 58.3
9 (720 r/min) 6,126 2,986 9,112 3,899 63.9
9 (750 r/min) 6,126 2,986 9,112 3,899 63.9

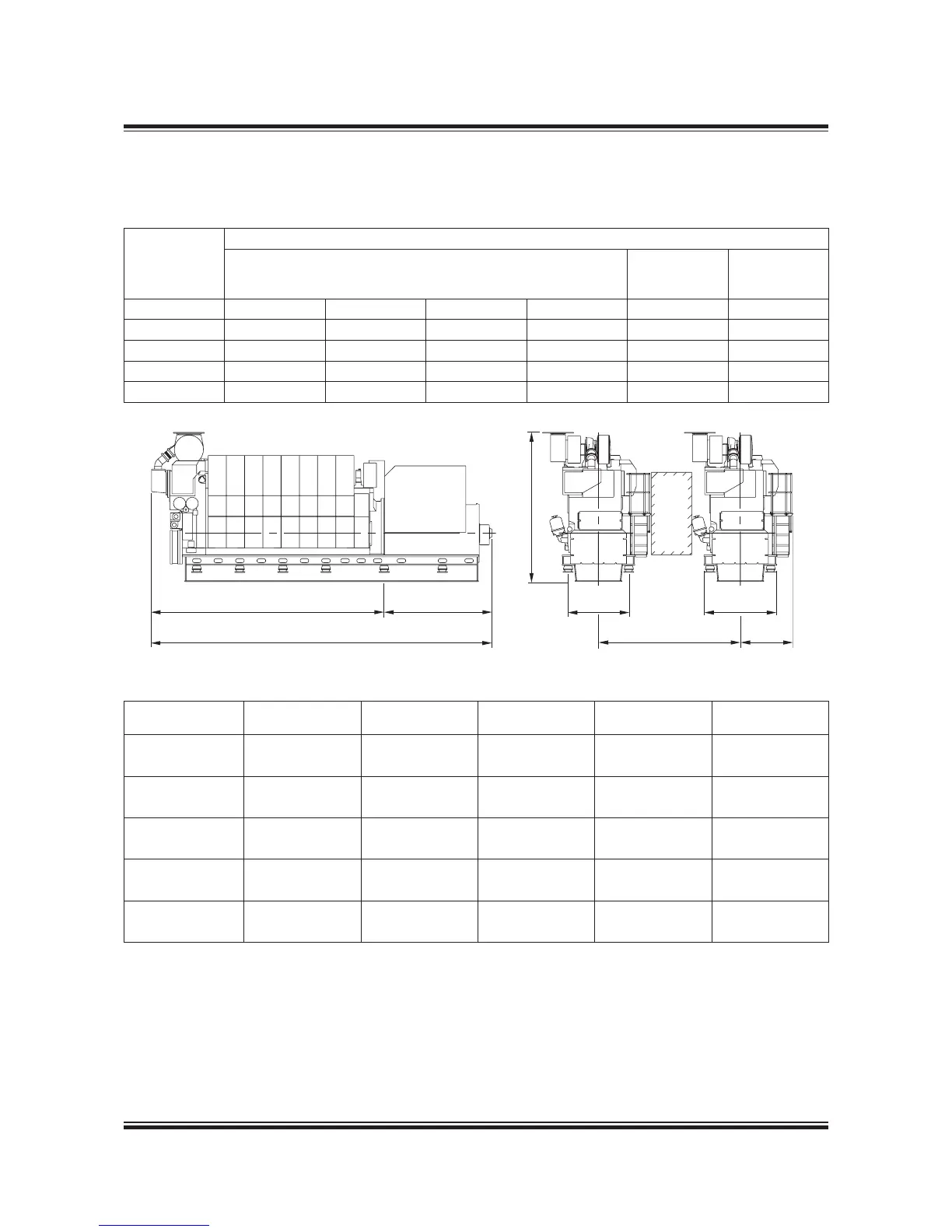

Fig. 4.09.01: Power and outline of L27/38
P Free passage between the engines, width 600 mm and height 2,000 mm
Q Min. distance between engines: 2,900 mm (without gallery) and 3,100 mm (with gallery)
* Depending on alternator
** Weight includes a standard alternator
All dimensions and masses are approximate and subject to change without prior notice.
178 33 898.2
A
C
B
H
1,480
P
Q
1,770
1,285
