MAN B&W 5.10
Page 1 of 3
MAN Diesel
MAN B&W MC/MC-C, ME/ME-C/ME-GI/ME-B engines 198 66 70-0.2
PCD
A
C
L
IL
E
G
Dia 1
W
IW
F
B
D
Dia 2
N x diameter (O) N x diameter (O)
G
B
F
A
C
IL
L
IW
W
D
Nx Thread (0)
22 x ø14
7x110
800
710
300
4x90
390

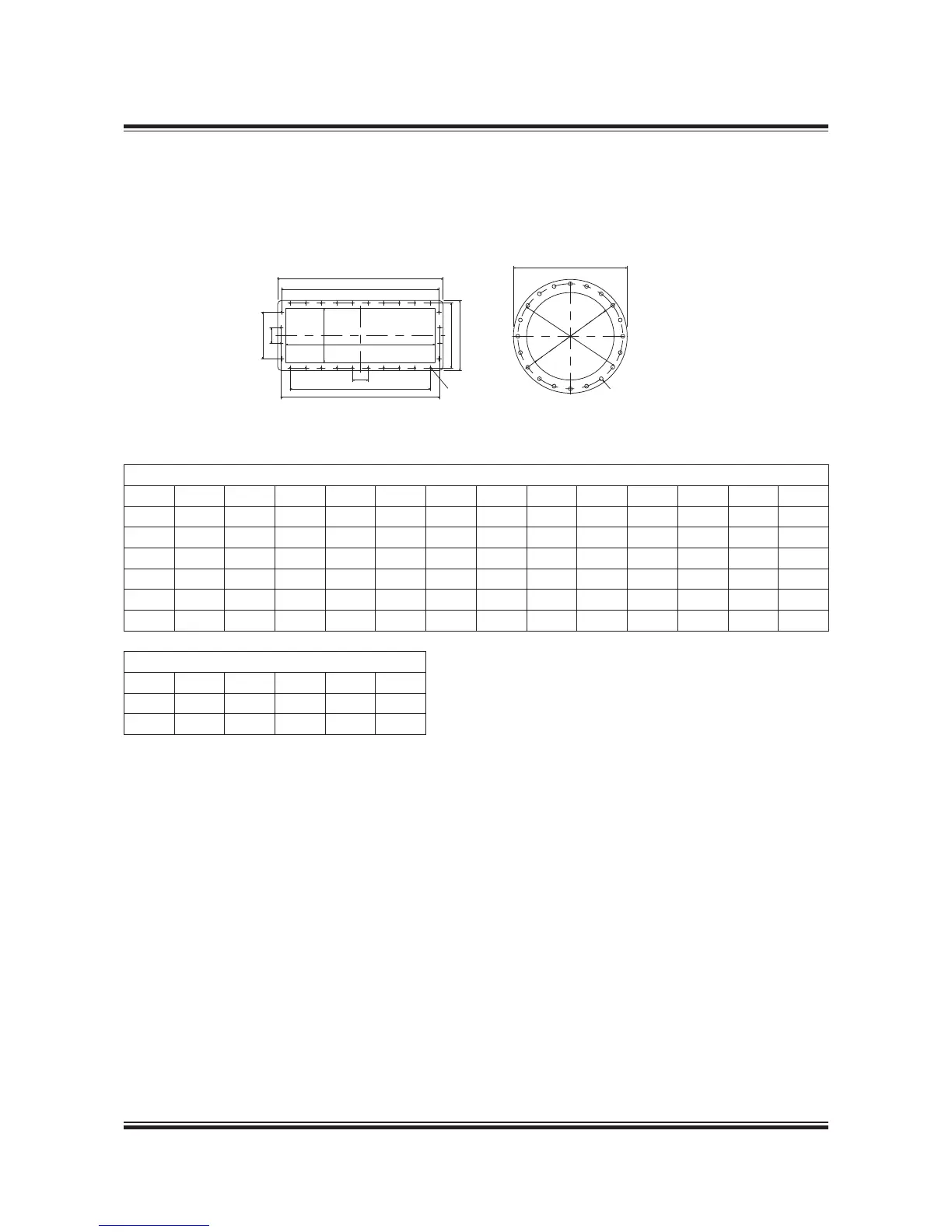

Counterflanges, Connection D
Type TCA series - Retangular type
T.C. L W I L I W A B C D E F G N O
TCA44 1,012 430 910 328 962 286 854 - 972 96 122 24 ø13
TCA55 1,206 516 1,080 390 1,143 360 1,000 472 1,155 120 125 26 ø18
TCA66 1,433 613 1,283 463 1,358 420 1,200 560 1,373 140 150 26 ø18
TCA77 1,694 720 1,524 550 1,612 480 1,280 664 1,628 160 160 34 ø22
TCA88 2,012 855 1,810 653 1,914 570 1,710 788 1,934 160 190 28 ø22
TCA99 2,207 938 1,985 717 2,100 624 1,872 866 2,120 208 208 28 ø22
Type TCR series - Round type
T.C. Dia 1 Dia 2 PCD N O
TCR18 425 310 395 12 ø22
TCR22 595 434 550 16 ø22
MAN Diesel Type TCA/TCR
