MAN Diesel

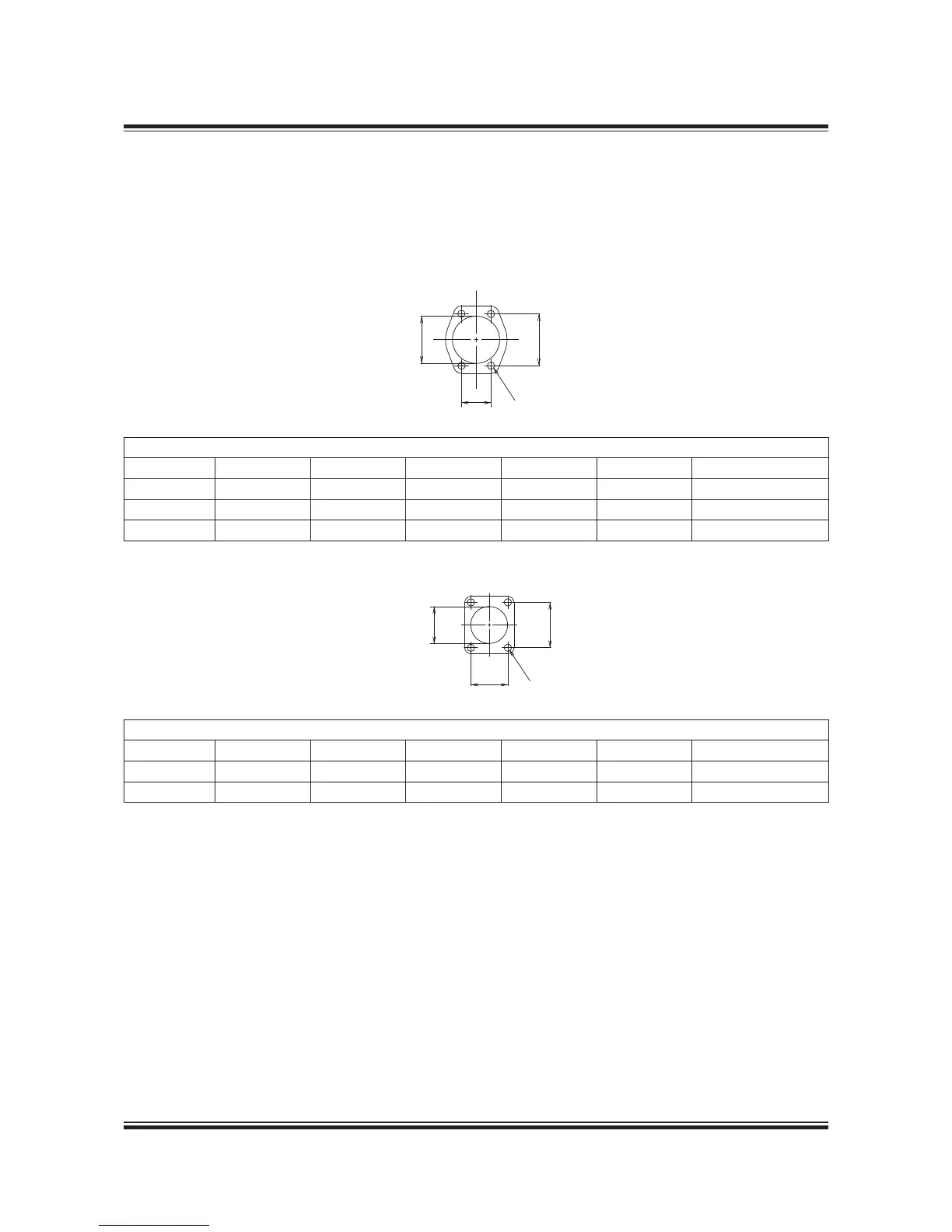

MAN B&W MC/MC-C, ME/ME-C/ME-GI/ME-B engines 198 70 27-3.0
Counterflanges, Connection E
MAN Diesel Type TCA
Dia
Dia
Dia 1
Dia 2
A
B
W
N x diameter (O)
N x diameter (O) PCD
N x diameter (O)
N x diameter (O) PCD
Dia 1
N x diameter (O) PCD
W
L
Dia
W
L
L
TCA
TPL
MET
Dia
Dia
Dia 1
Dia 2
A
B
W
N x diameter (O)
N x diameter (O) PCD
N x diameter (O)
N x diameter (O) PCD
Dia 1
N x diameter (O) PCD
W
L
Dia
W
L
L
TCA
TPL
MET
Type TCA series
T.C. Dia L W N O Thickness of flanges
TCA77 116 126 72 4 20 18
TCA88 141.5 150 86 4 20 18
TCA99 141.5 164 94 4 22 24
Type TCA series
T.C. Dia L W N O Thickness of flanges
TCA55 77.5 86 76 4 16 15
TCA66 90.5 110 90 4 18 16
