MAN B&W 2.05
Page 1 of 1
MAN Diesel
198 69 09-9.1MAN B&W K90MC-C6, K80MC-C/ME-C6-TII, S70MC-C/ME-C/ME-GI8-TII,
S65ME-C/ME-GI8-TII, S60MC-C/ME-C/ME-GI8-TII, S60ME-B-TII,
L60MC-C/ME-C7/8-TII, S50MC-C/ME-C8-TII, S50ME-B8/9-TII, S46MC-C8-TII,
S46ME-B8-TII, S42/35MC7-TII, S35/40ME-B9-TII, L35/S26MC6-TII

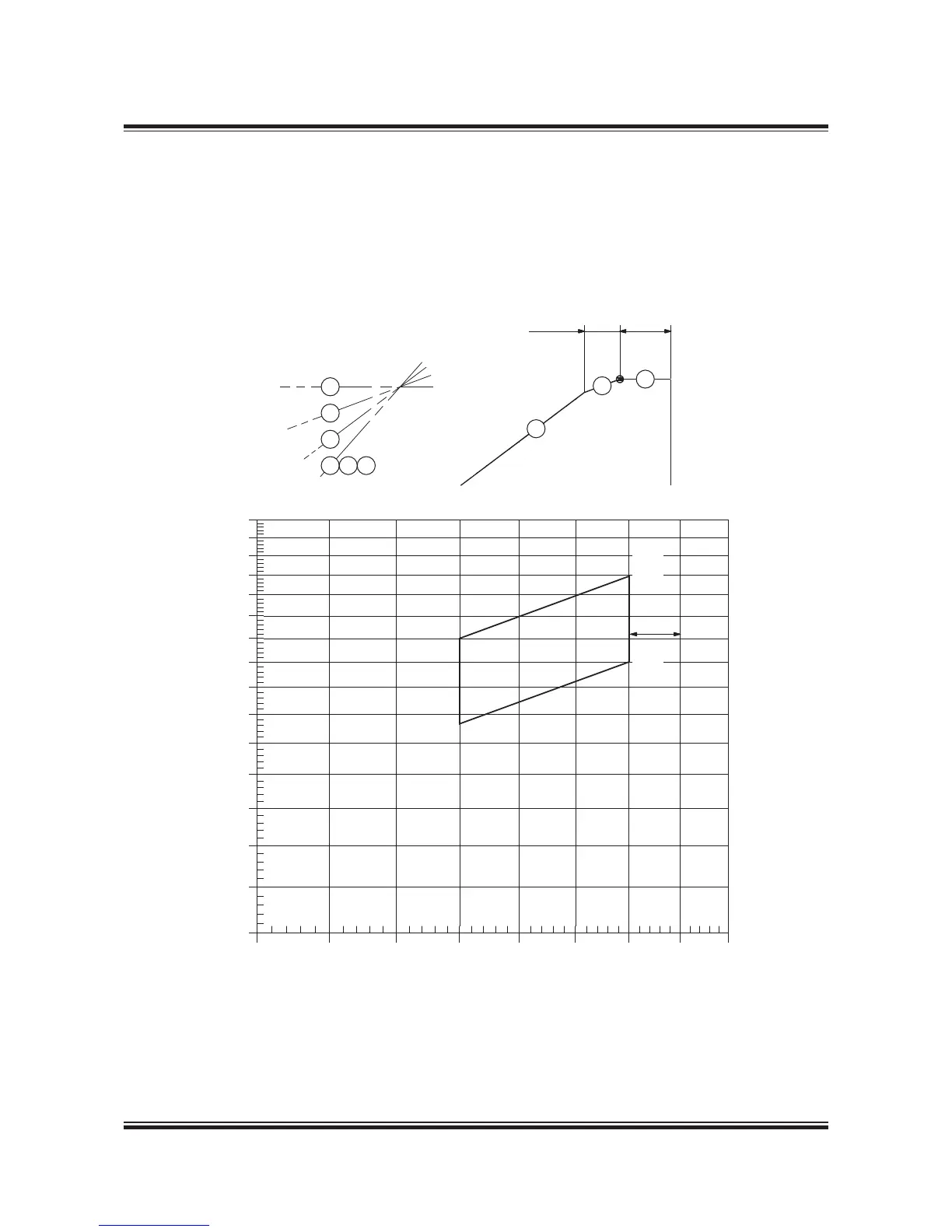

Fig. 2.05.01: Construction of layout diagram
70% 75% 80% 85% 90% 95% 100% 105% 110%
40%
50%
60%
70%
80%
90%
100%
110%
7
5
4
2 6 1
3.3%A
5%A
7
5
A
4
Engine s peed, % of L
1
Power, % of L
1
5%L
1
L
1
L
2
L
3
L
4
Diagram for actual project
This figure contains a layout diagram that can
be used for constructing the load diagram for an
actual project, using the %figures stated and the
inclinations of the lines.
178 06 37-5.3
