MAN Diesel 4.07
Page 2 of 3
MAN Diesel
198 42 066.5MAN B&W S80MC/MC-C/ME-C, K80MC-C/ME-C, S70MC/MC-C/ME-C/ME-GI,
L70MC-C/ME-C, S65ME-C/ME-GI, S60MC/MC-C/ME-C/ME-GI/ME-B,
L60MC-C/ME-C, S50MC/MC-C/ME-C/ME-B, S46MC-C/ME-B, S42MC,
S40MC-C/ME-B, S35MC/MC-C/ME-B, L35MC, S26MC
Fig. 4.07.02a: List of capacities for L21/31, 900 rpm, IMO Tier I. Tier II values available on request.
L21/31 GenSet Data
Cyl. 5 6 7 8 9
Maximum continuous rating at 900 rpm
kW 950 1,320 1,540 1,760 1,980
Engine-driven pumps:
LT cooling water pump (1-2.5 bar) m³/h 55 55 55 55 55
HT cooling water pump (1-2.5 bar) m³/h 55 55 55 55 55
Lubricating oil pump (3-5 bar) m³/h 31 31 41 41 41
External pumps:
Max. delivery pressure of cooling water pumps bar 2.5 2.5 2.5 2.5 2.5
Diesel oil pump (5 bar at fuel oil inlet A1) m³/h 0.65 0.91 1.06 1.21 1.36
Fuel oil supply pump (4 bar discharge pressure) m³/h 0.32 0.44 0.52 0.59 0.67
Fuel oil circulating pump (8 bar at fuel oil inlet A1) m³/h 0.66 0.92 1.07 1.23 1.38
Cooling capacities:
Lubricating oil kW 195 158 189 218 247
LT charge air kW 118 313 366 418 468
Total LT system kW 313 471 555 636 715
LT flow at 36°C inlet and 44°C outlet* m³/h 27.0 44.0 48.1 51.9 54.0
Jacket cooling kW 154 274 326 376 427
HT charge air kW 201 337 383 429 475
Total HT system kW 355 611 709 805 902
HT flow at 44°C inlet and 80°C outlet* m³/h 8.5 19.8 22.6 25.3 27.9
Total from engine kW 668 1082 1264 1441 1617
LT flow from engine at 36°C inlet m³/h 27.0 43.5 47.6 51.3 53.5
LT outlet temperature from engine at 36°C inlet °C 55 58 59 61 63

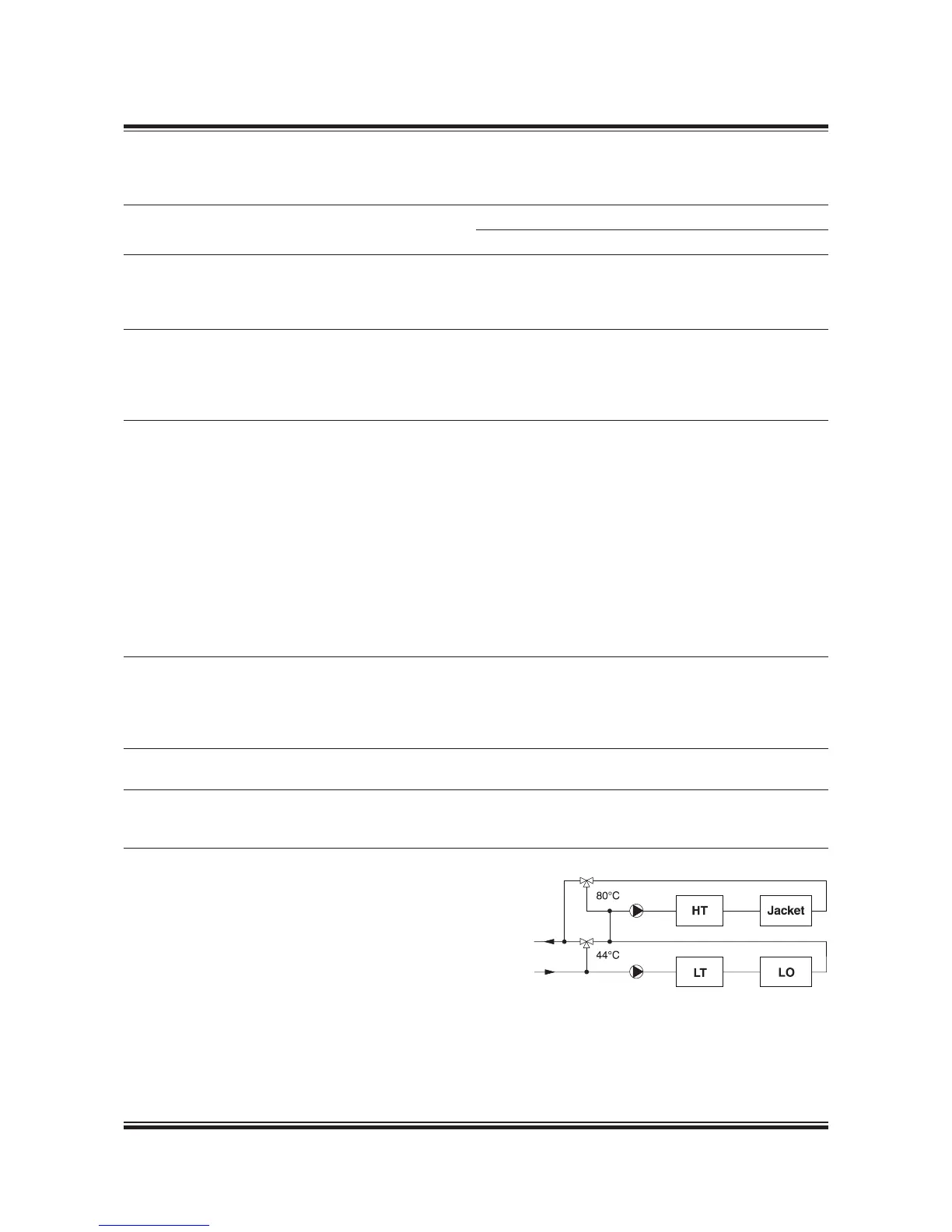

( 1-string cooling water system )
Gas data:
Exhaust gas flow kg/h 6,679 9,600 11,200 12,800 14,400
Exhaust gas temperature at turbine outlet °C 335 348 348 348 348
Maximum allowable back pressure bar 0.025 0.025 0.025 0.025 0.025
Air consumption kg/h 6,489 9,330 10,900 12,400 14,000
Starting air system:
Air consumption per start incl. air for jet assist Nm³ 1.0 1.2 1.4 1.6 1.8
Heat radiation:
Engine kW 49 50 54 58
Alternator kW ( See separate data from alternator maker )
The stated heat balances are based on 100% load and tropical
condition.
The mass flows and exhaust gas temperature are based on ISO
ambient condition.
* The outlet temperature of the HT water is fixed to 80°C, and
44°C for the LT water.
At different inlet temperature the flow will change accordingly.
Example: If the inlet temperature is 25°C then the LT flow will
change to (44-36)/(44-25)*100 = 42% of the original flow.
The HT flow will not change.
17856 53-3.0
