MAN B&W 16.01
Page 10 of 11
MAN Diesel
MAN B&W MC/MC-C engines 198 79 11-5.0
Engine Control Room Console
178 58 17-6.0

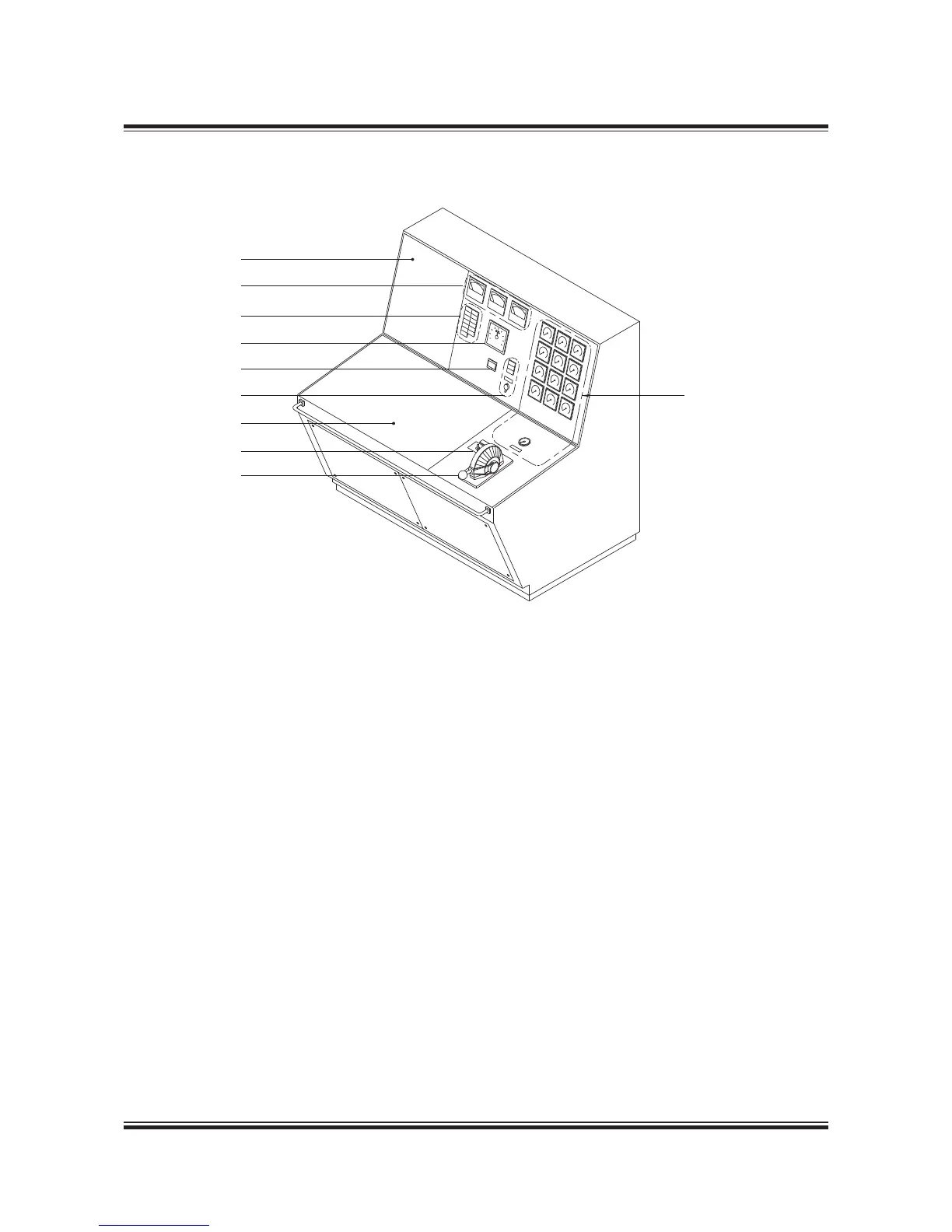

Fig. 16.01.07: Instruments and pneumatic components for Engine Control Room console, yard’s supply
1 Free space for mounting of safety panel
Engine builder’s supply
2 Tachometer(s) for turbocharger(s)
3 Indication lamps for:
Ahead
Astern
Engine Side Control
Control Room Control
Wrong way alarm
Turning gear engaged
Main starting valve in service
Main starting valve in blocked mode
Remote control
Shut down
(Spare)
Lamp test
4 Tachometer for main engine
5 Revolution counter
6 Switch and lamps for auxiliary blowers
7 Free spares for mounting of bridge control
equipment for main engine
Note: If an axial vibration monitor is ordered (option: 4
31 116 ) the manoeuvring console has to be extended
by a remote alarm/slow down indication lamp.
8 Switch and lamp for cancelling of limiters for
governor
9 Engine control handle, option: 4 65 625 from engine
maker
* 10 Pressure gauges for:
Scavenge air
Lubricating oil, main engine
Cooling oil, main engine
Jacket cooling water
Sea cooling water
Lubricating oil, camshaft
Fuel oil before filter
Fuel oil after filter
Starting air
Control air supply
* 10 Thermometer:
Jacket cooling water
Lubricating oil water
* These instruments have to be ordered as option:
4 75 645 and the corresponding analogue sensors on
the engine as option: 4 75 128.
1
2
3
4
5
6
7
8
9
10
