MAN B&W 3.03
Page 2 of 2
MAN Diesel
198 58 94-7.1MAN B&W MC/MC-C, ME/ME-C/ME-GI/ME-B Engines
Air
Process
computer
Evaporator
Ammonia
tank
Air outlet
Air intake
SCR reactor
Exhaust gas outlet
Deck
Support
Air
Orifice
Engine
NO and O analysers
x 2
High efficiency turbocharger
Preheating and sealing oil
Static mixer
198 99 271.0

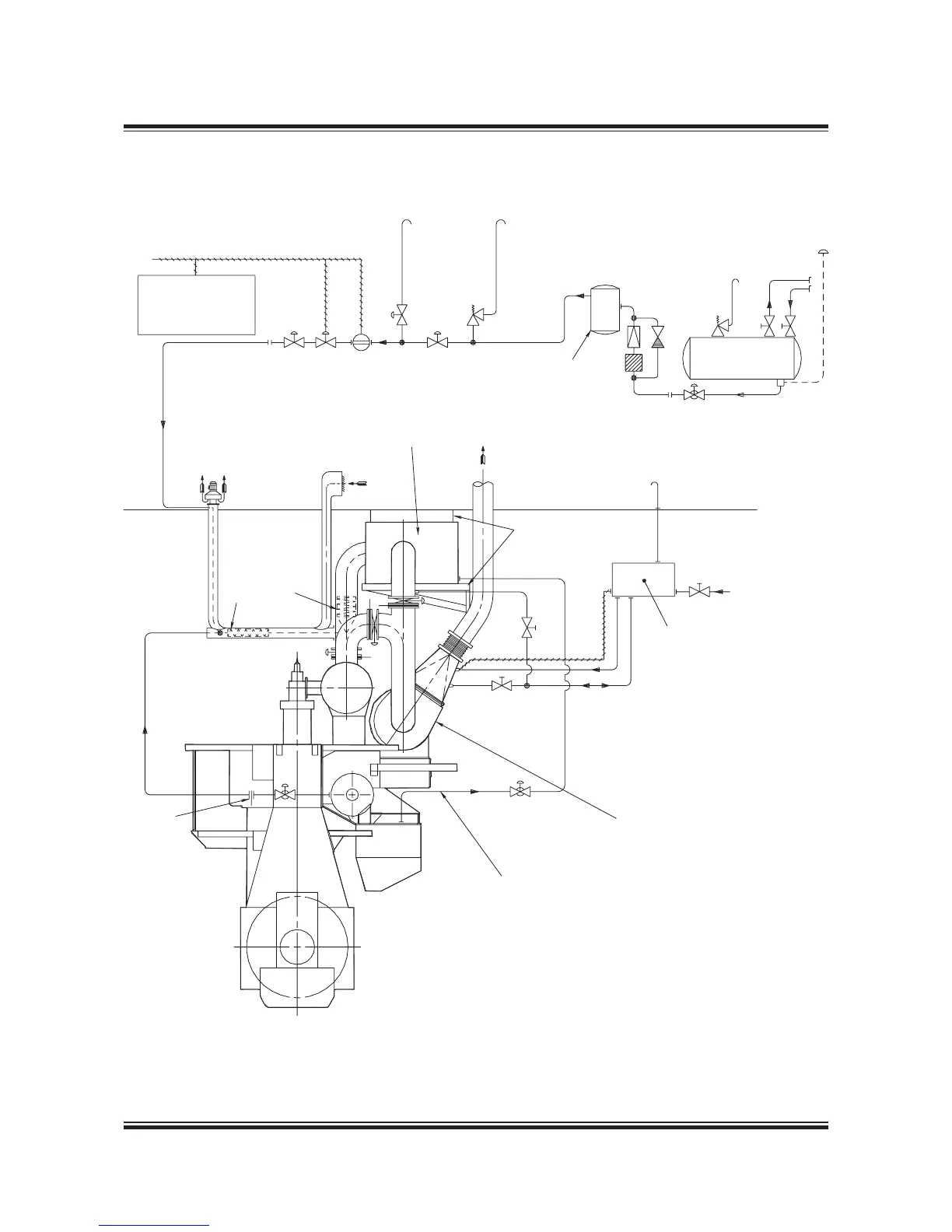

Fig. 3.03.01: Layout of SCR system
