MAN B&W 13.01
Page of
MAN Diesel
MAN B&W S50MC6, S50MC-C7/8 198 60 530.0
Starting and Control Air Systems

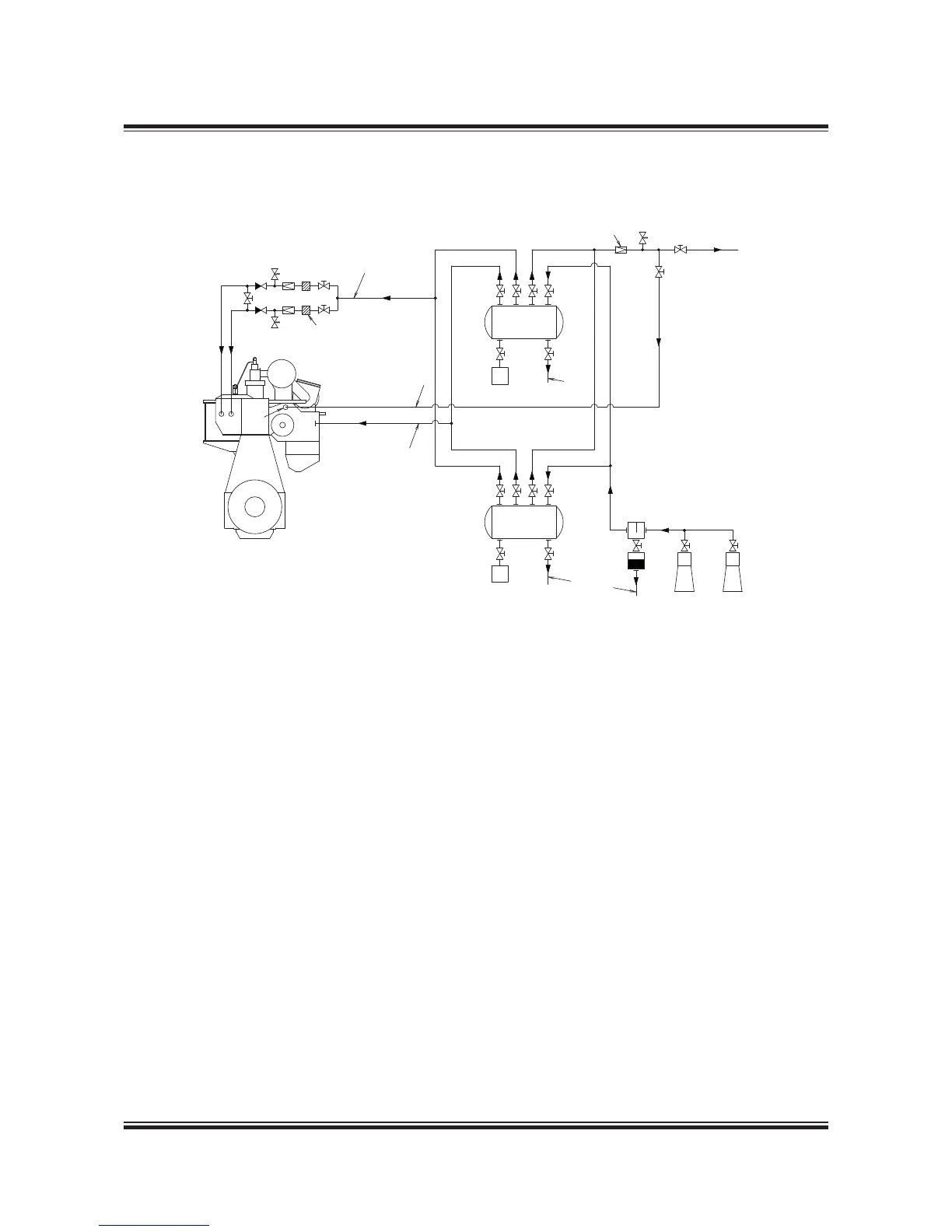

Fig. 13.01.01: Starting and control air systems
The starting air of 30 bar is supplied by the start-
ing air compressors to the starting air receivers
and from these to the main engine inlet ‘A’.
Through a reduction station, ltered compressed
air at 7 bar is supplied to the engine as:
• Control air for manoeuvring system and for ex-
haust valve air springs, through engine inlet ‘B’
• Safety air for emergency stop, through inlet ‘C’.
Through a reduction valve, compressed air is sup-
plied at 0 bar to ‘AP’ for turbocharger cleaning
(soft blast), and a minor volume used for the fuel
valve testing unit.
Please note that the air consumption for control
air, safety air, turbocharger cleaning and for fuel
valve testing unit are momentary requirements of
the consumers.
The components of the starting and control air
systems are further desribed in Section 3.02.
For information about a common starting air sys-
tem for main engines and MAN Diesel auxiliary
engines, please refer to our publication:
Uniconcept Auxiliary Systems for Twostroke Main
The publication is available at www.mandiesel.com
under ‘Quicklinks’ → ‘Technical Papers’
079 61 01-7.1.0
