MAN Diesel
MAN B&W S50MC-C/ME-C7/8, S50ME-B8
198 43 14-4.1
The stated kW at the generator terminals is available between 70% and 00% of the engine speed at specied MCR
Space requirements have to be investigated case by case on plants with 2600 kW generator.
Dimension H: This is only valid for A. van Kaick generator type DSG, enclosure IP23,
frequency = 60 Hz, speed = 800 r/min

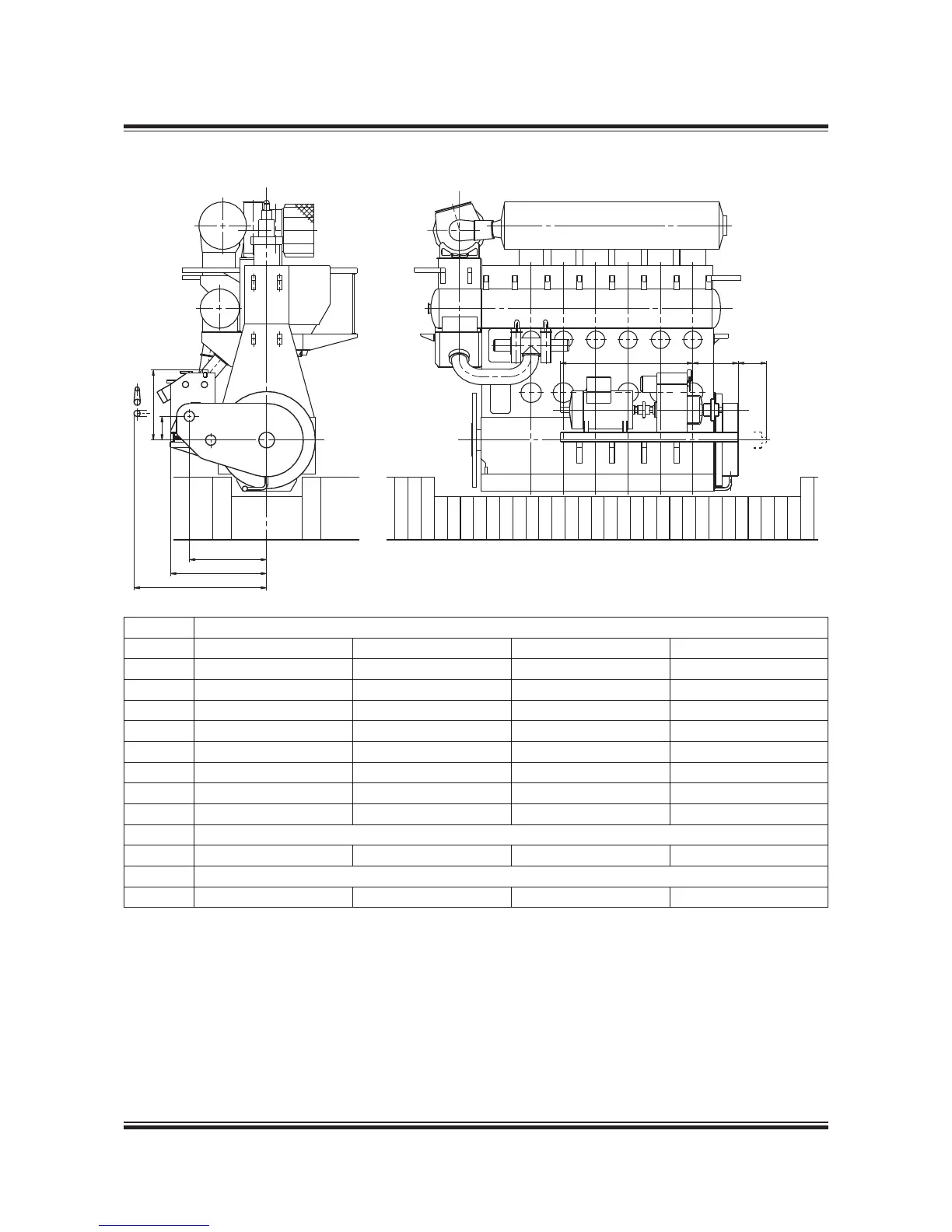

Fig. 4.02.01: Space requirement for side mounted generator PTO/RCF type BWlll S50C/RCF
178 05 117.0
(
' 3
&/2%
&
"
!
#
$
kW generator
700 kW 1200 kW 1800 kW 2600 kW
A 2,455 2,455 2,595 2,595
B 776 776 776 776
C 3,5 3,5 3,395 3,395
D 3,50 3,50 3,790 3,790
F ,826 ,946 2,066 2,76
G 2,24 2,24 2,54 2,54
H 2,289 2,79 3,96 4,526
S 380 470 500 590
System mass (kg) with generator:
22,750 26,500 37,00 48,550
System mass (kg) without generator:
20,750 23,850 32,800 43,350
