MAN B&W 5.03
Page 4 of 4
MAN Diesel
198 76 36-0.1MAN B&W S50MC6, S50MC-C/MEC7/8, S50ME-B8/9,
S46MC-C7/8, S46ME-B8, S40MC-C9, S40ME-B9,
S35MC-C9, S35ME-B9
Crane beam
for A/C
4
3
5
21
1 2 3
4
5
517 93 99-9.0.0

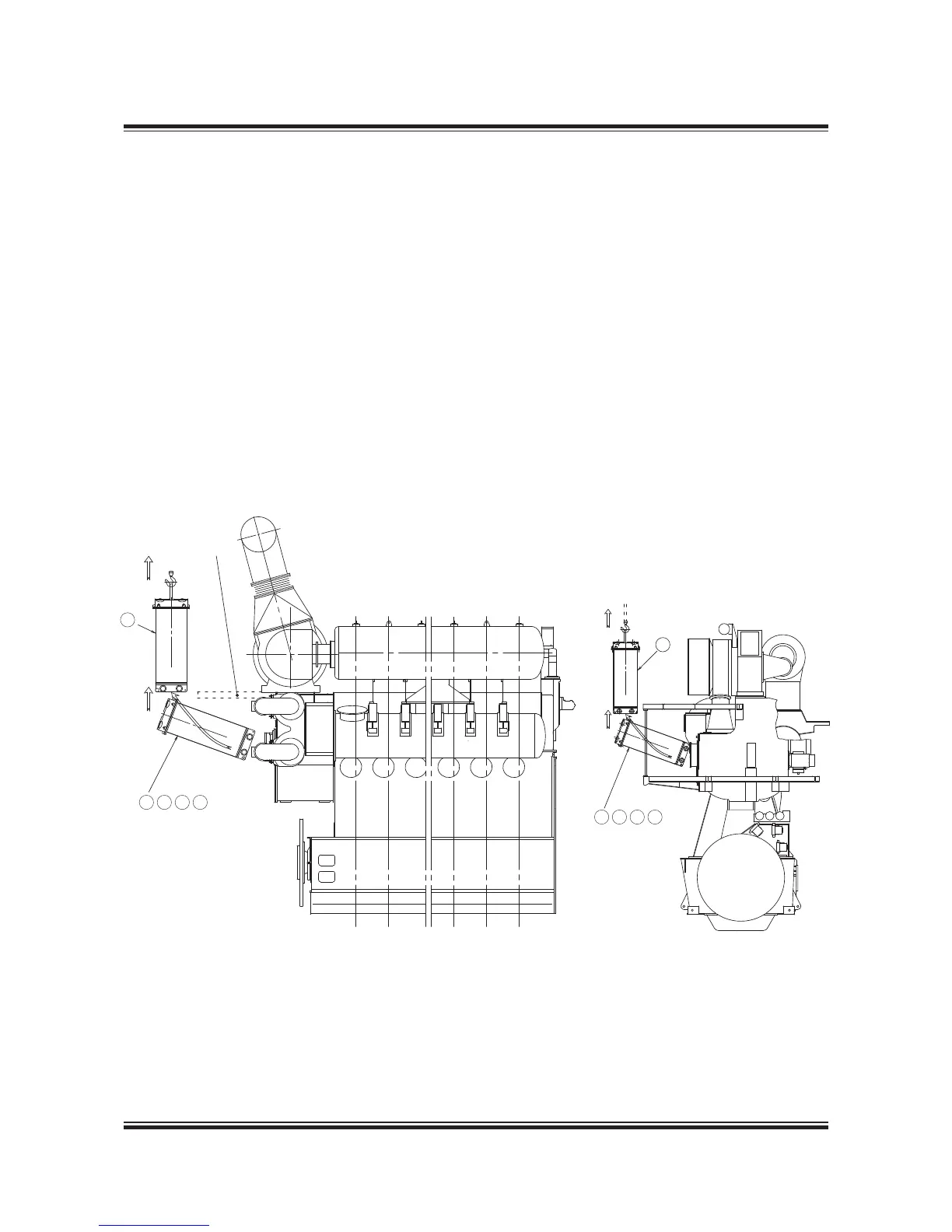

Fig.: 5.03.04: Crane beam for overhaul of air cooler, turbocharger located on aft end of the engine
Overhaul/exchange of scavenge air cooler.
The text and figures are for guidance only.
Valid for all engines with aft mounted Turbocharger.
1. Dismantle all the pipes in the area around the
air cooler.
2. Dismantle all the pipes around the inlet cover
for the cooler.
3. Take out the cooler insert by using the above
placed crane beam mounted on the engine.
4. Turn the cooler insert to an upright position.
5. By using the engine room crane the air cooler
insert can be lifted out of the engine room.
Crane beam for overhaul of air cooler
