Man B&W S50MC-C8-TII - Page 128

MAN B&W 5.06
Page 7 of 8
MAN Diesel
MAN B&W S50MC-C8
198 60 79-4.0




  

H


G 




Turbocharger type h
MAN
Diesel
TCA66 4,400
TCA77 4,400
ABB
TPL73-B-CL 4,000
TPL77-B 4,000
TPL80-B 4,400
MHI
MET53 *)
MET60MA 4,400
MET66 *)
MET7
*)
*) Available on request
Cylinder g
5 3,400
6 4,200
7 5,00
8 5,950
9 Data for 9 cylinders is available on request.
508 24 58-6.0.0a

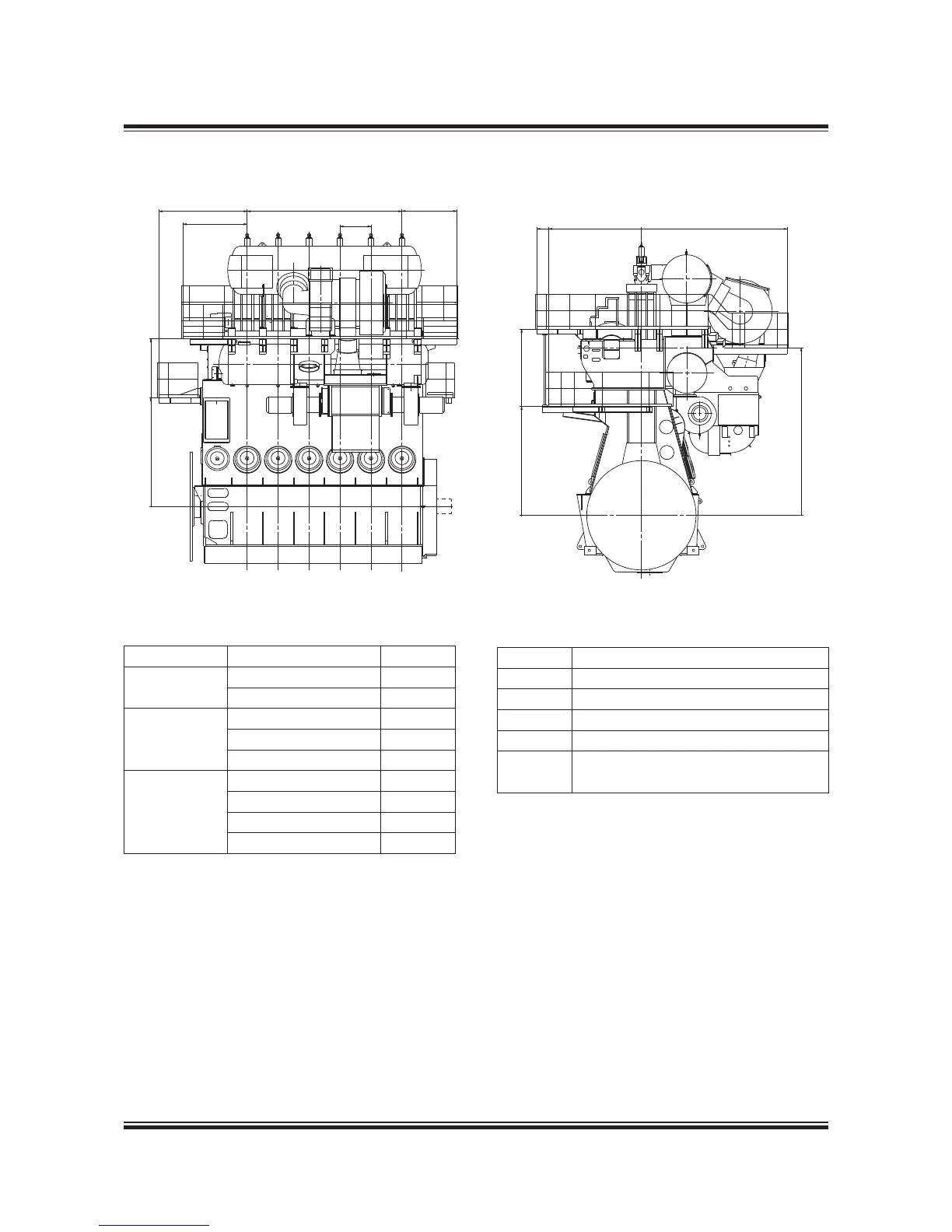

Fig. 5.06.4a: Gallery outline, 6S50MC-C8 with turbocharger on exhaust side
