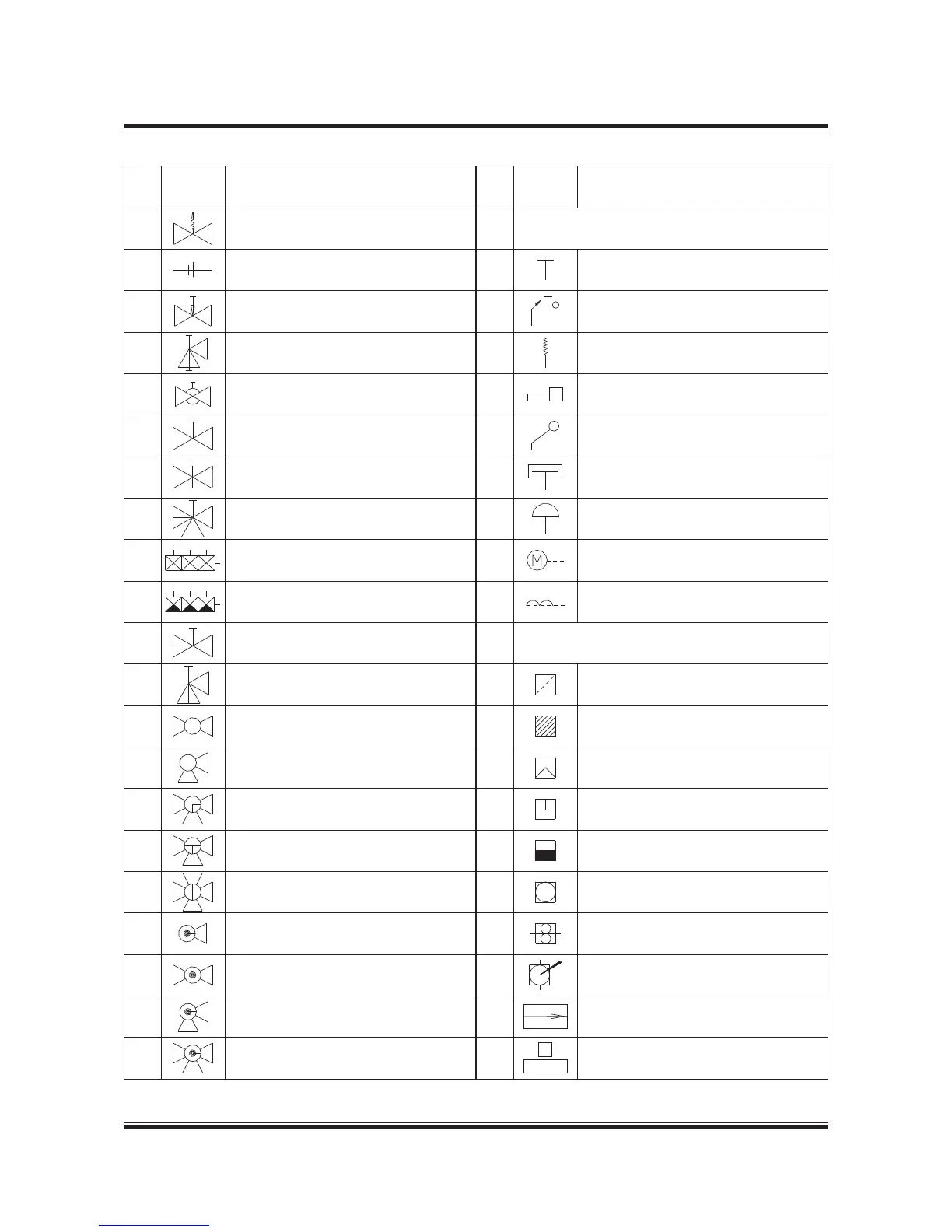

Man B&W S50MC-C8-TII User Manual

MAN B&W Appendix A
Page 2 of 3
MAN Diesel
MAN B&W MC/MCC, ME/MEC/MEGI/ME-B engines 198 38 662.3
No. Symbol Symbol designation
3.14
Quickopening valve
3.15
Quickclosing valve
3.16
Regulating valve
3.17
Kingston valve
3.18
Ballvalve (cock)
3.19
Butterfly valve
3.20
Gate valve
3.21
Doubleseated changeover valve
3.22
Suction valve chest
3.23
Suction valve chest with nonreturn
valves
3.24
Doubleseated changeover valve,
straight
3.25
Doubleseated changeover valve, angle
3.26
Cock, straight through
3.27
Cock, angle
3.28
Cock, threeway, Lport in plug
3.29
Cock, threeway, Tport in plug
3.30
Cock, fourway, straight through in plug
3.31
Cock with bottom connection
3.32
Cock, straight through, with bottom
conn.
3.33
Cock, angle, with bottom connection
3.34
Cock, threeway, with bottom connec-
tion
No. Symbol Symbol designation
4 Control and regulation parts
4.1
Handoperated
4.2
Remote control
4.3
Spring
4.4
Mass
4.5
Float
4.6
Piston
4.7
Membrane
4.8
Electric motor
4.9
Electromagnetic
5 Appliances
5.1
Mudbox
5.2
Filter or strainer
5.3
Magnetic filter
5.4
Separator
5.5
Steam trap
5.6
Centrifugal pump
5.7
Gear or screw pump
5.8
Hand pump (bucket)
5.9
Ejector
5.10
Various accessories (text to be added)
