Interface CAN-2 touch display
153
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

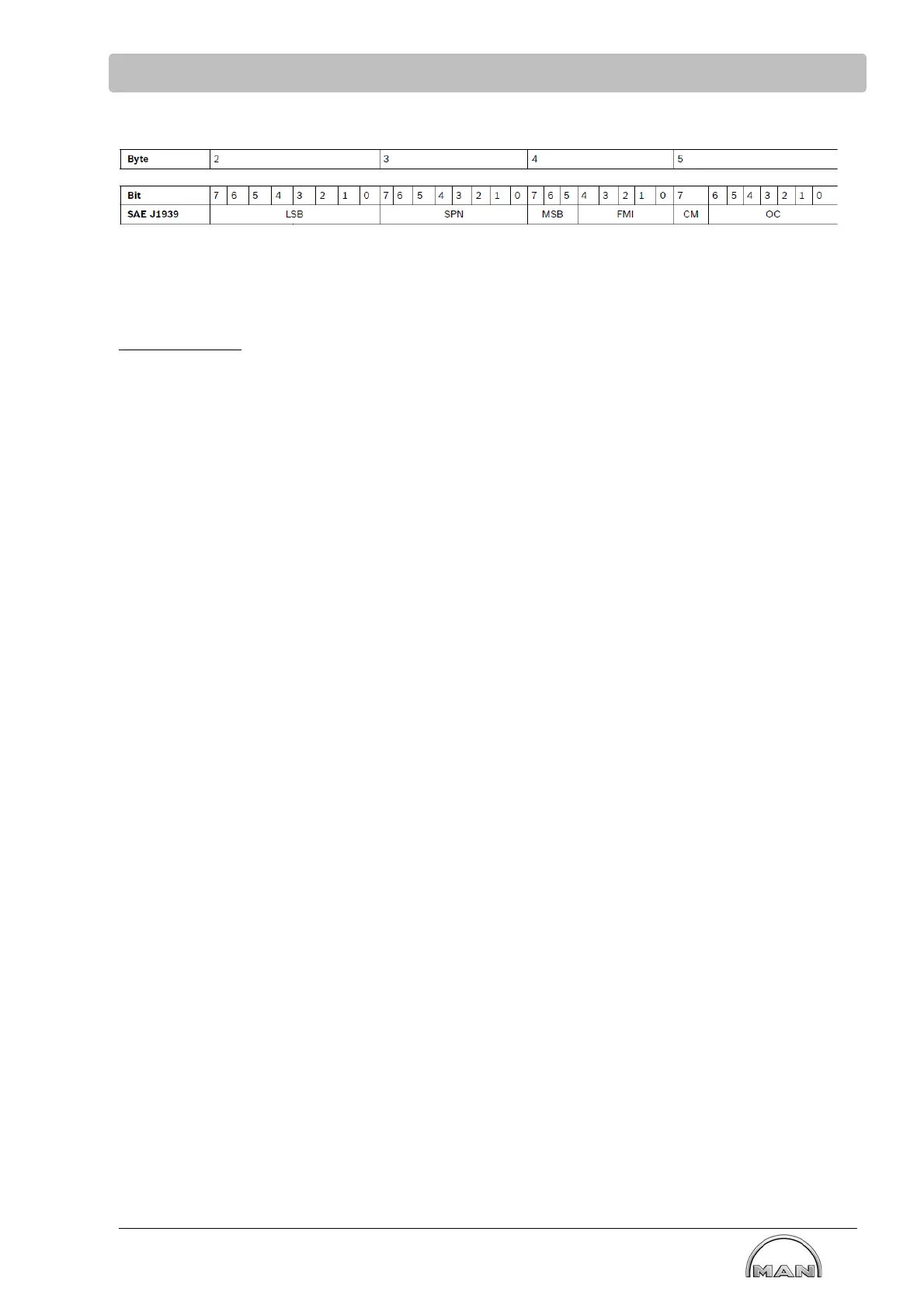

Overview of assignment byte 3 to 6:
Byte 7, 8: not used = 0xFFFF
Hint: The SPN is set to Zero if there is no fault active!
If there is more than one failure active, the DM1 Message is transmitted as multi packet message:
Header message:
BAM_MAN-Engine_to_global 0x1CECFF27
Byte 1: 0x20, broadcast announce message (BAM)
Byte 2, 3: Total length of the message (number of Use Bytes)
Byte 4: Number of the following packages (P_MAN-Engine)
Byte 5: 0x FF
Byte 6 - 7: PGN (= 0x FE CA)
Byte 8: 0x00
