Drive lever control unit
43
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

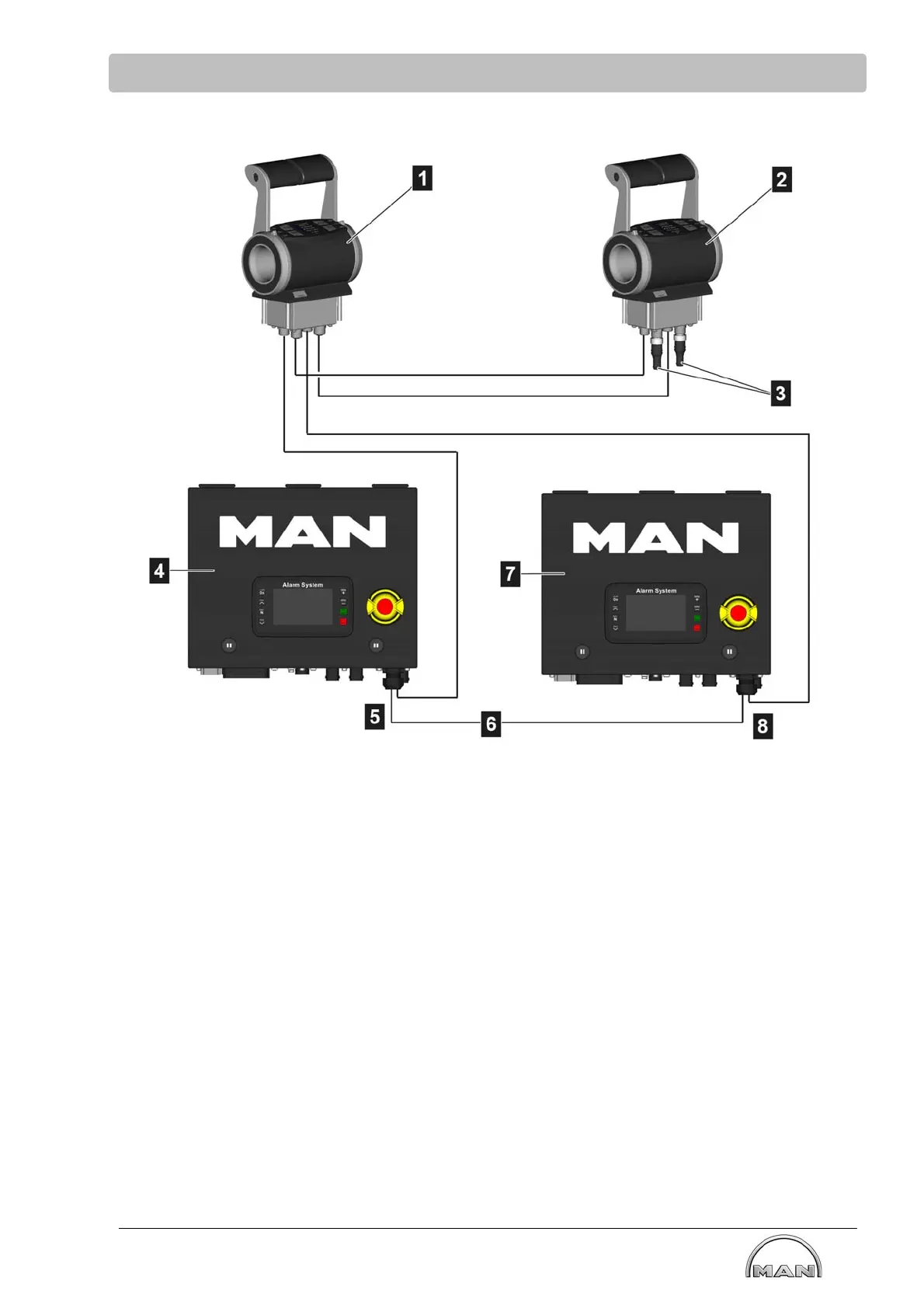

Example: E-box without acceptance with 2 engines and 2 drive levers
(1) Drive lever 1
(2) Drive lever 2
(3) CAN bus terminating resistor
(4) E-box, port
(5) Cable conduit for internal drive lever
control unit, port
(6) CAN cross-communication
(7) E-box, starboard
(8) Cable conduit for internal drive lever
control unit, starboard
