Main pages (1-3)
*When a red engine speed is displayed (top right), the system is in "wait mode". System is on OFF or CAN
connection not available.Video function (optional) remains.
The following values can be queried:
S Engine speed (RPM)*
S Oil pressure
S Oil temperature
S Coolant temperature
S Drive lever position
S Relative load
S Fuel total
S Fuel consumption
S Fuel trip consumption
S Charge air temperature
S Charge air pressure
S Gearbox oil pressure
S Gearbox oil temperature
S Exhaust gas temperature before turbo (2x)
S Fuel supply pressure
S Fuel temperature
S Battery voltage

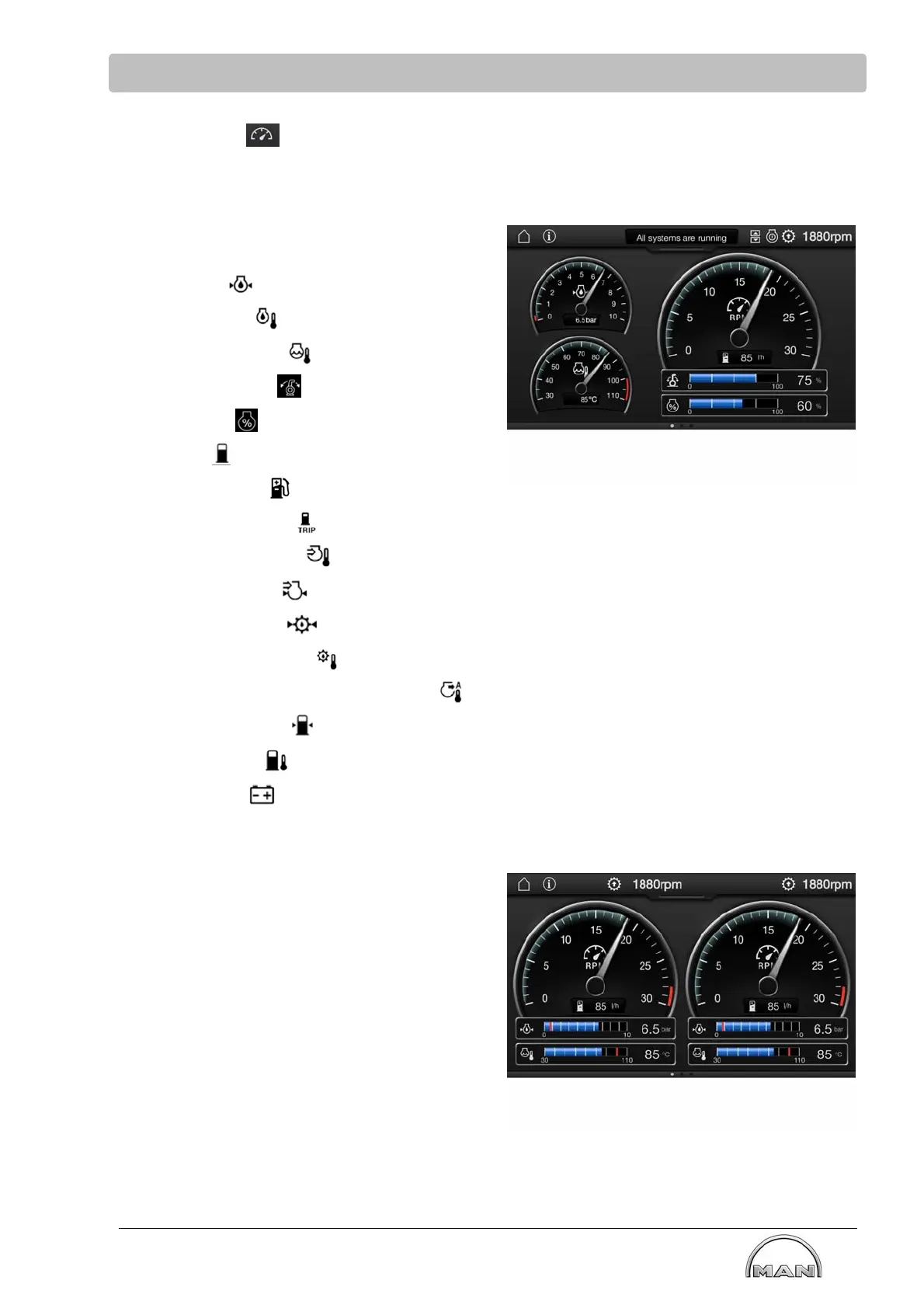

Display representation with “Dual engine system”
