Control and operation
78
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.
Main menu
Several graphic pages illustrate the recorded measurement values in the form of digital displays and round
instruments. To represent alarm conditions, the numerical values of the digital instruments are colored in
accordance with the alarm state. (yellow/red)

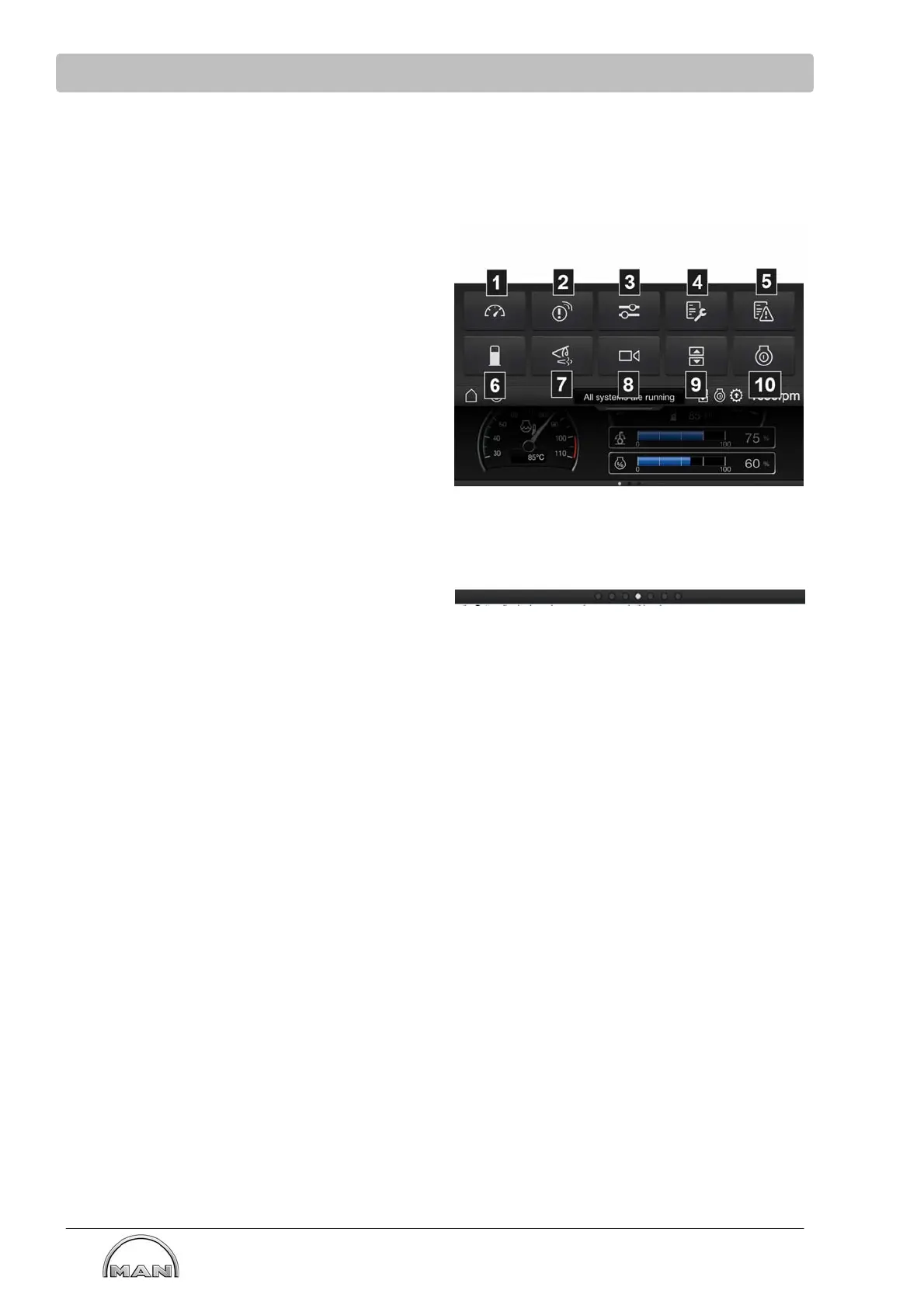

The following queries are possible in the main
menu structure:
1 Main pages (1-3)
2 Alarm page
3 Settings (Languages, time, etc.)
4 Service page
5 Electronic control units error memory (output)
(not for „twin engines“ display)
6 Fuel consumption page
7 Video page
8 Emergency drive (optional)
9 Start/stop
10 Aftertreatment system page
Functions 7and 8 only with 7 inch, 8 and 9 only
available with “non-classified” application
Overview of symbols in the display header line, page 97
The page count of a sub-menu is shown in the
footer line.
Change pages by “swiping” the screen to the
left/right.
