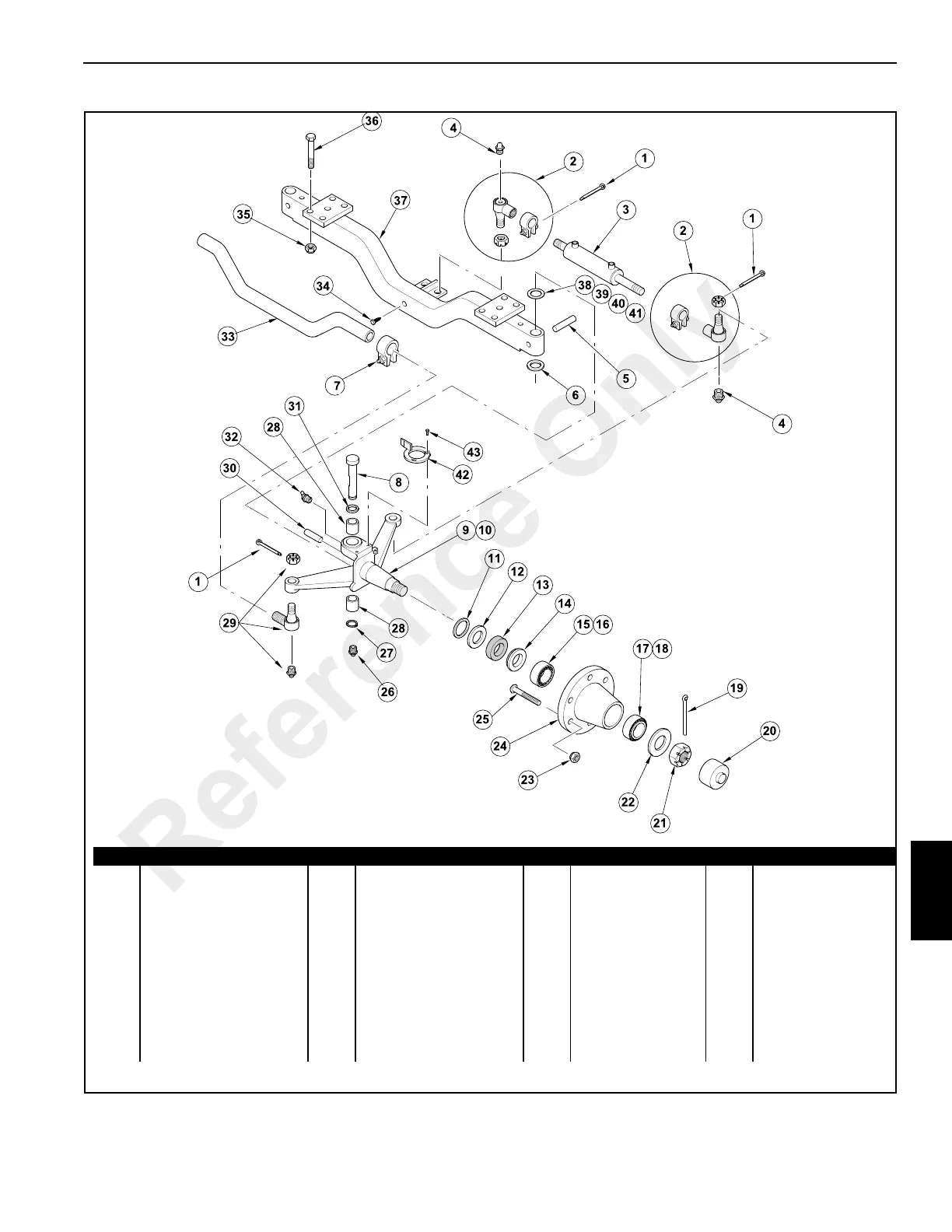

FIGURE 8-138
Item Description Item Description Item Description Item Description
1 Cotter Pin (6) 12 Oil Seal Retainer (2) 23 Hex Nut (12) 34 Tap Screw
2 Socket Assembly (4) 13 Seal (2) 24 Axle Hub (2) 35 Self-Locking Nut (8)
3 Steering Cylinder (2) 14 Oil Seal Retainer (2) 25 Wheel Stud (12) 36 Capscrew (8)
4 Grease Zerk (4) 15 Bearing Cone (2) 26 Grease Zerk (4) 37 Steering Axle Beam
5 Retainer Pin (2) 16 Bearing Cup (2) 27 Retainer Ring (2) 38 Shim (2)
6 Thrust Washer (2) 17 Bearing Cup (2) 28 Bearing (4) 39 Shim (2)
7 Clamp (2) 18 Bearing Cone (2) 29 Tie Rod End (2) 40 Shim (2)
8 Pin (2) 19 Cotter Pin (2) 30 Stud (4) 41 Shim (2)
9 Right Steering Knuckle 20 Hub Cap (2) 31 Thrust Washer (2) 42 Steering Bracket
10 Left Steering Knuckle 21 Slotted Nut (2) 32 Grease Zerk 43 Capscrew (2)
11 Spacer (2) 22 Flat Washer (2) 33 Tie Rod
