GROVE 9-13
CD3340B/YB4411 BRAKE SYSTEM
9
Published 04/07/2015 Control # 569-00
Item Description Item Description
1 Boot 9 O-Ring
2 Piston Assembly 10 Spring
3 Spring 11 Spool
4 Spring 12 Housing
5Spring 13Screw
6Shim 14Cup
7 Retainer Assembly 15 Seal
8 End Plug

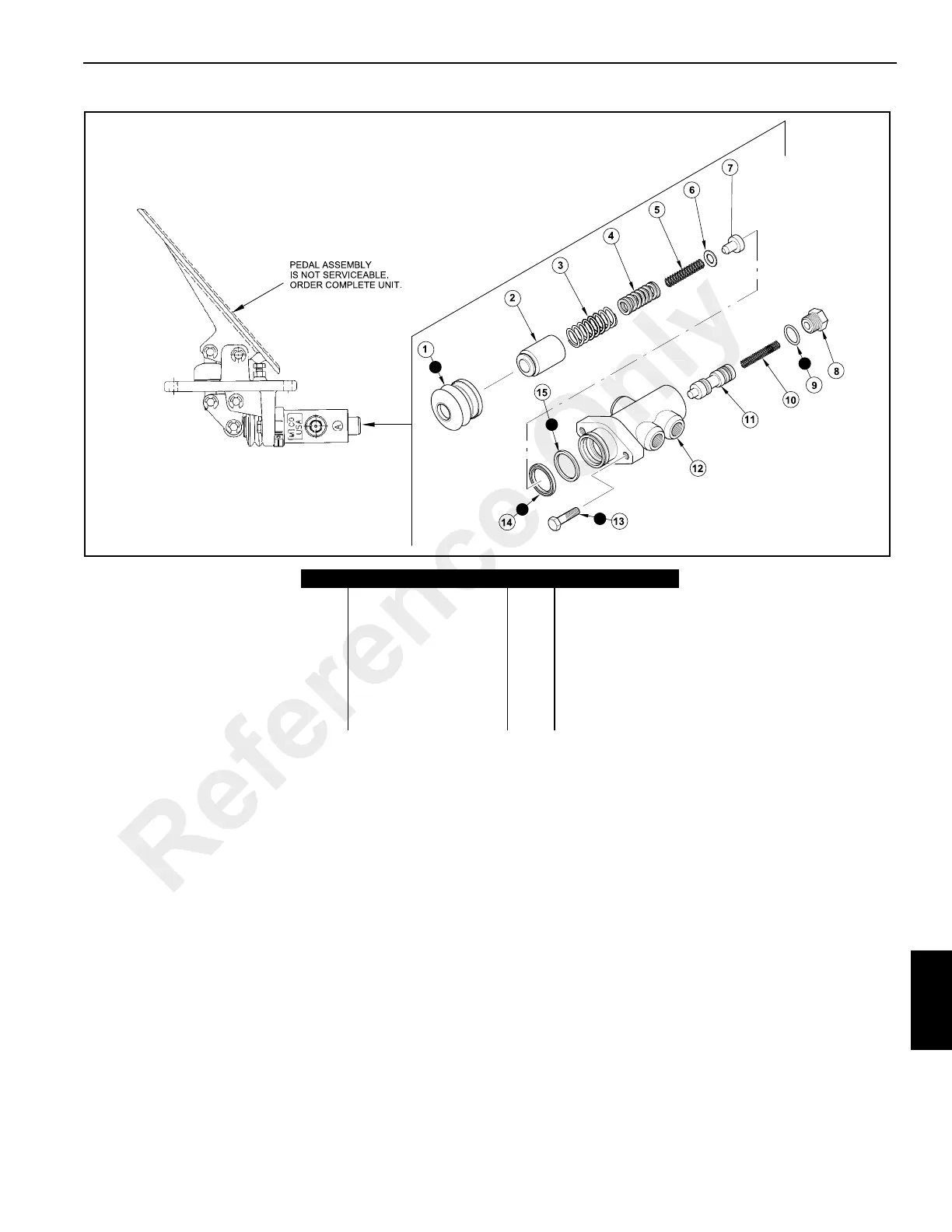

FIGURE 9-13
A0780
Reference Only
