STRUCTURAL CD3340B/YB4411

11-8

Published 04/07/2015 Control # 569-00

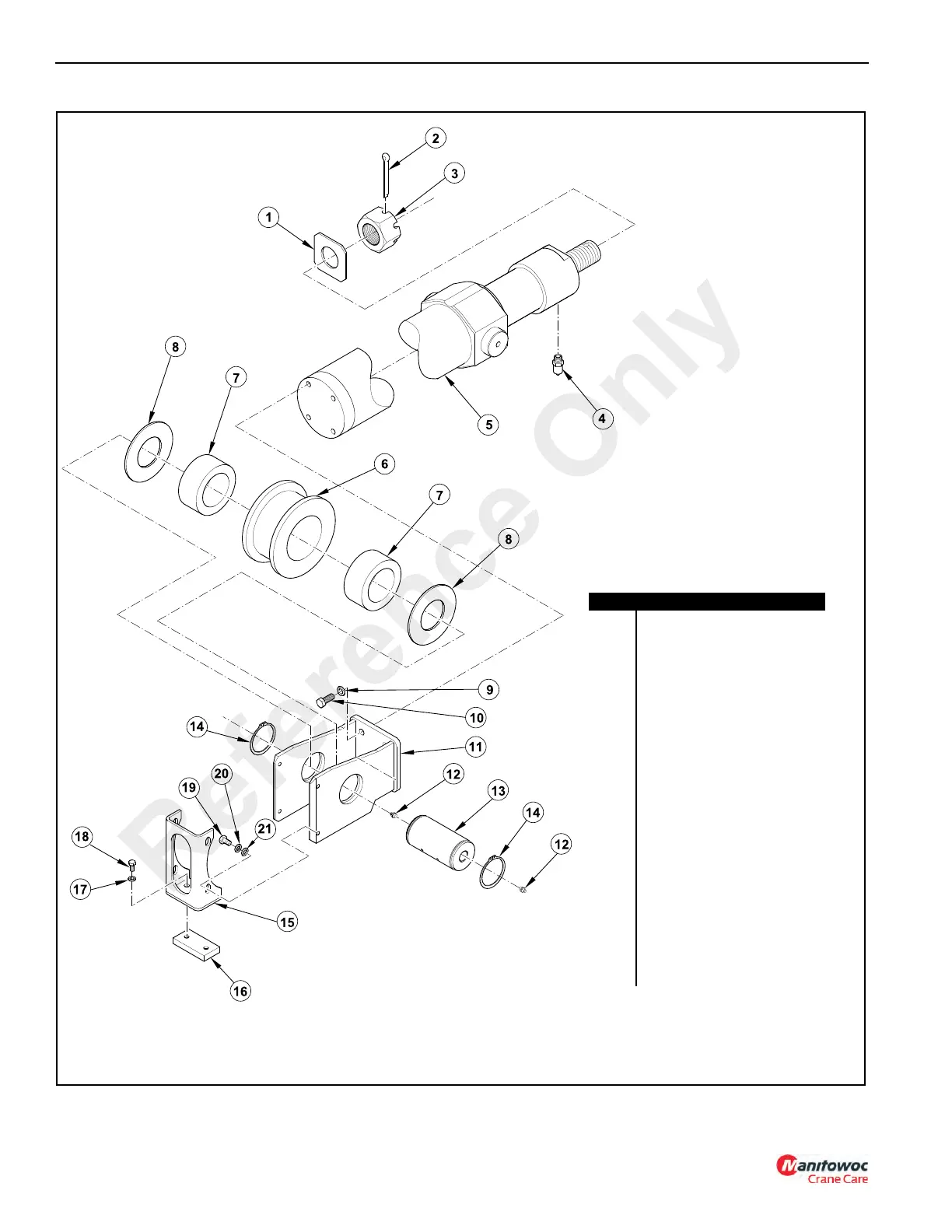

FIGURE 11-10

a0847

Item Description

1 Washer

2Cotter Pin

3Castle Nut

4 Counterbalance Valve

5 Telescope Cylinder

6 Chain Sheave

7 Bearing (2)

8 Nylatron Spacer (2)

9 Lockwasher (4)

10 Capscrew

11 Extend Chain Roller Bracket

12 Grease Filling (2)

13 Chain Roller Pin

14 Retaining Ring (2)

15 End Guide Bracket

16 Cylinder End Slide Pad

17 Lockwasher (2)

18 Capscrew (2)

19 Capscrew (4)

20 Lockwasher (4)

21 Flat Washer (4)

Reference Only
