ELECTRIC SYSTEM CD3340B/YB4411
3-12
Published 04/07/2015 Control # 569-00
8468-1
FIGURE 3-8
1
2
34
5
6
78
9
10

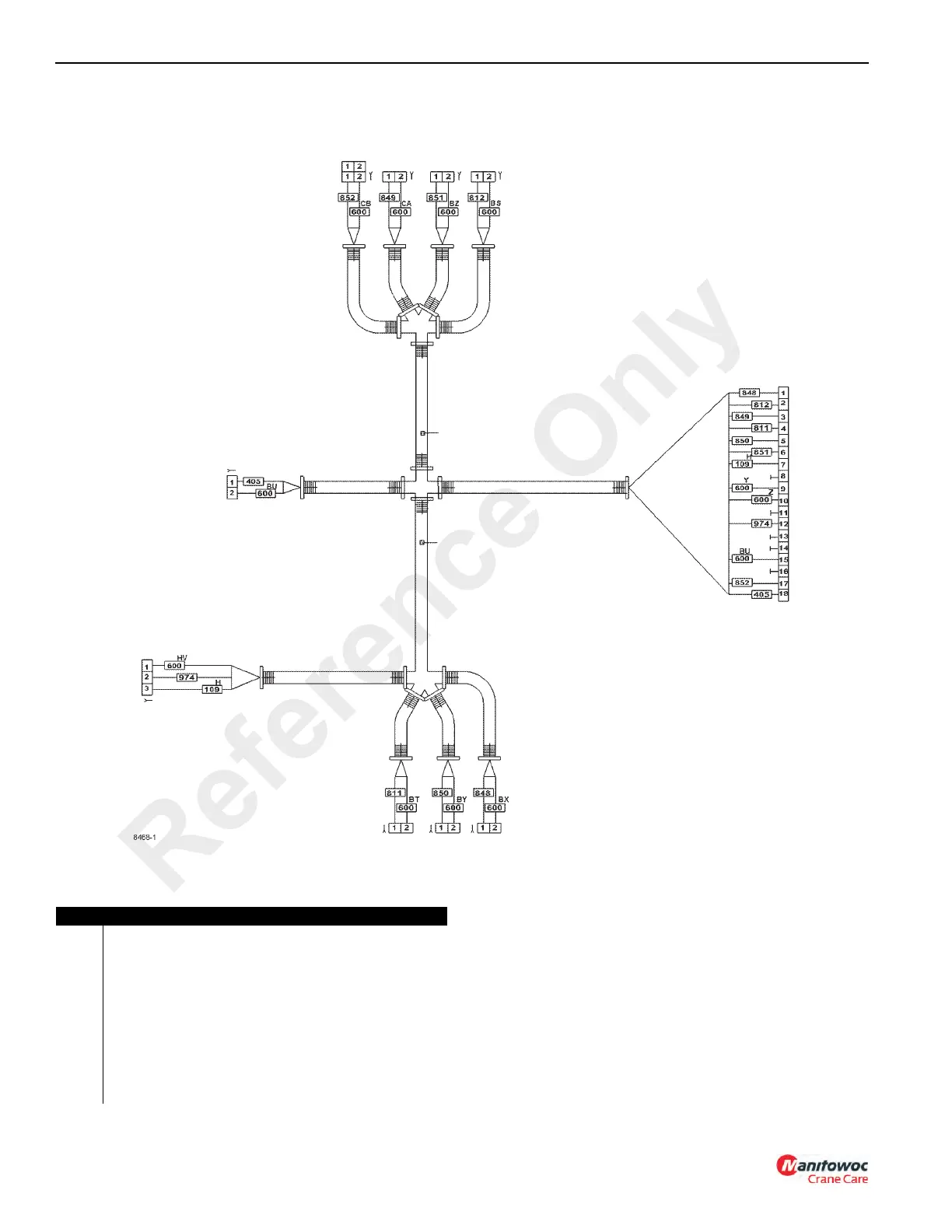

Transmission Wire Harness
Item Description
14WD
2 Forward Low Solenoid
3 Main Shaft Solenoid
4 Reverse High Solenoid
5 Gearbox Connector
6 Reverse Low Solenoid
7 Layshaft Solenoid
8 Forward High Solenoid
9 Speed Sensor
10 Pressure Switch
