BOOM TMS700E SERVICE MANUAL
4-28 Published 01-29-2015, Control # 512-01

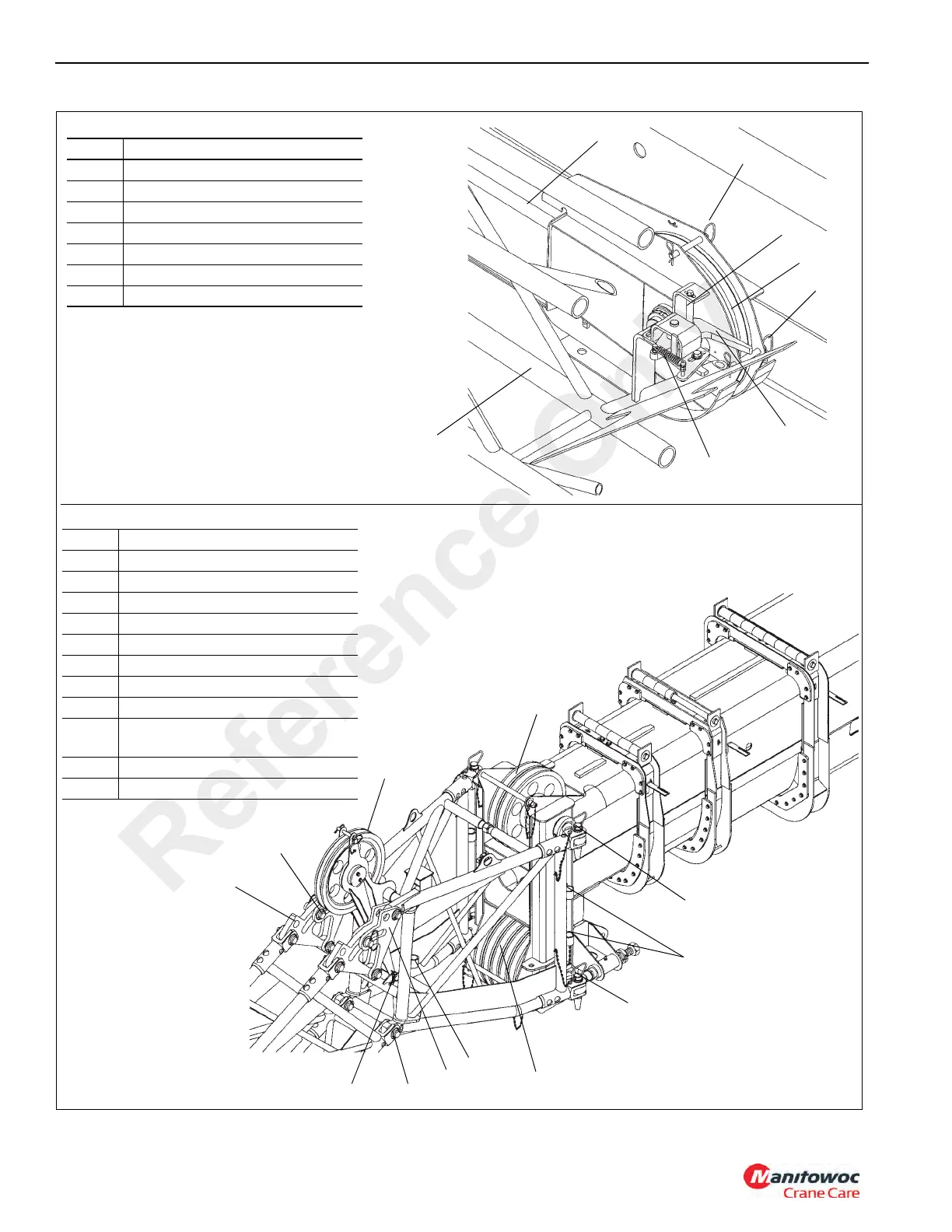

DETAIL E
NOTE: Offset shown at 25 degrees. To obtain 45 degree offset,
remove pin (item 56) and stow in lug.
Item Description
40 Swingaway Base
41 Swingaway Stinger
42 Stinger Sheave
43 Cable Retainer Pin
44 Latch Hook
45 Spring
46 Latch Bar
40
45
44
43
42
46
43
41
Item Description
47 Boom Nose Upper Sheaves
48 Mast Assembly
49 Offset Link
50 Offset Pivot Points
51 Offset Link Pins Stowage Lugs
52 Mast Assembly Pin
53 Boom Nose Lower Sheaves
54 Swingaway Attachment Pins
55
Swingaway Attachment Pins
Stowage Lugs
56 Offset Link Pins
57 Zero Degree Offset Hole
47
48
56
57
54
55
54
53
51
49
50
52
FIGURE 4-5 continued
Reference Only
