Grove Published 01-29-2015, Control # 512-01 7-27
TMS700E SERVICE MANUAL POWER TRAIN
7
Item Description
1 Radiator/Charge Air Cooler
2 Recovery Tank
3Drain Cock
4 Left Hand Baffle
5 Right Hand Baffle
6 Top Radiator Tube (ISX)
7 Bottom Radiator Tube (ISX)
8 Cold CAC Tube (ISX)
9 Hot CAC Tube (ISX)
10 Radiator Mount
11 Fan Guards
12 Coolant Recovery Hose
13 Vent Hoses

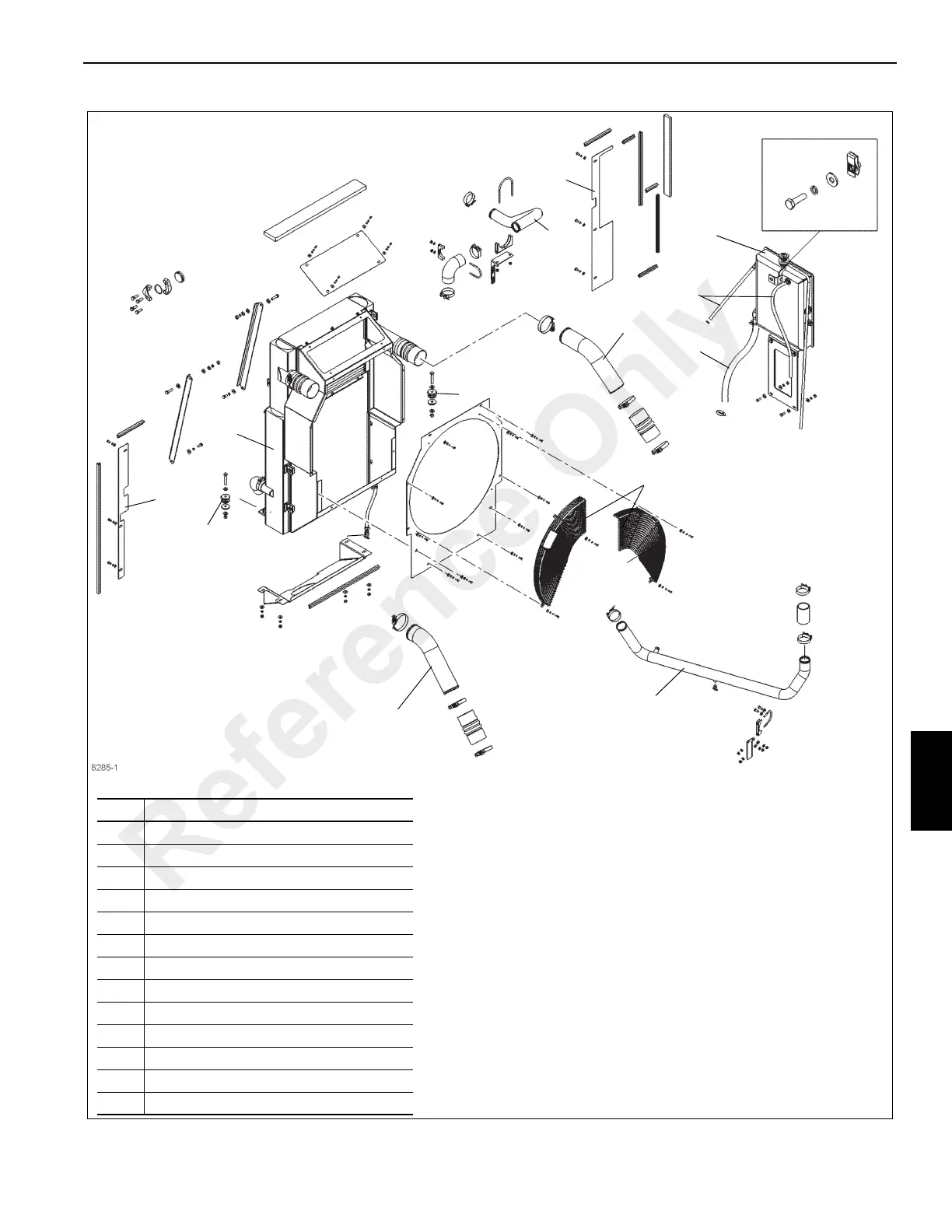

FIGURE 7-10
1
4
6
2
8
10
7
5
3
9
11
10
13
ISX Engine Radiator/Charge Air Cooler Assembly
12
Reference Only
