OPERATING CONTROLS AND PROCEDURES MLC165-1 OPERATOR MANUAL
3-50
Published 08-06-19, Control # 237-09_v1

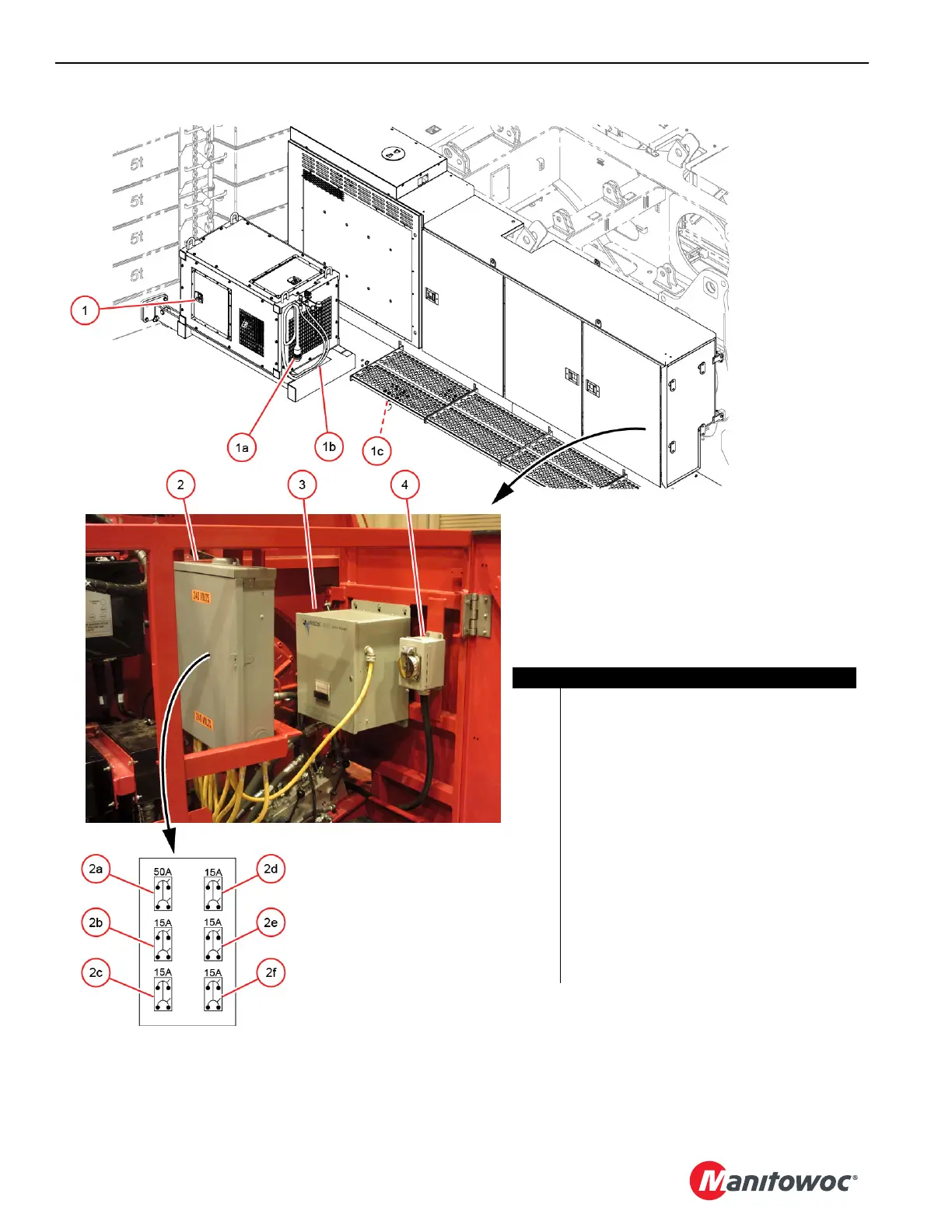

Figure 3-18. 240VAC Electric System
Item Description
1 7.5 kW Generator
1a Power Supply Cord
1b Fuel Lines
1c Fuel Line Couplers
2 Load Center
2a 50A Main Circuit Breaker
2b 15A Circuit Breaker: Rotating Bed Work Lights
2c 15A Circuit Breaker: Boom Work Lights
2d 15A Circuit Breaker: Engine Oil Heater, Battery
Pad Heaters, and Engine Coolant Heater
2e 15A Circuit Breaker: Hydraulic Tank Heater
2f 15A Circuit Breaker: Cab Console Heater and
Battery Charger
3 Battery Charger
4 240 VAC Receptacle
M102113
