MLC165-1 OPERATOR MANUAL SETUP AND INSTALLATION
4
Jib #134 Assembly
Assemble the jib in the exact sequence shown in the Jib
Assembly Drawing at the end of this section.
Review the topics after Boom and Jib Rigging on page 4-86
.
NOTE For guidance on component identification, see
Identifying Boom and Jib Components on page 4-
86.
For boom and jib length limitations, see the Liftcrane Jib
Capacities chart.
NOTE The upper boom point must be removed before the
jib can be installed.
Handling Jib Sections
When lifting lugs are not provided, as in the case of jibs:
• Lift against the chords only, never against the lacings.
• Use synthetic lifting slings. If wire rope or chain slings
are used, use protective covering (such as sections of
rubber tire) between the slings and the chords.

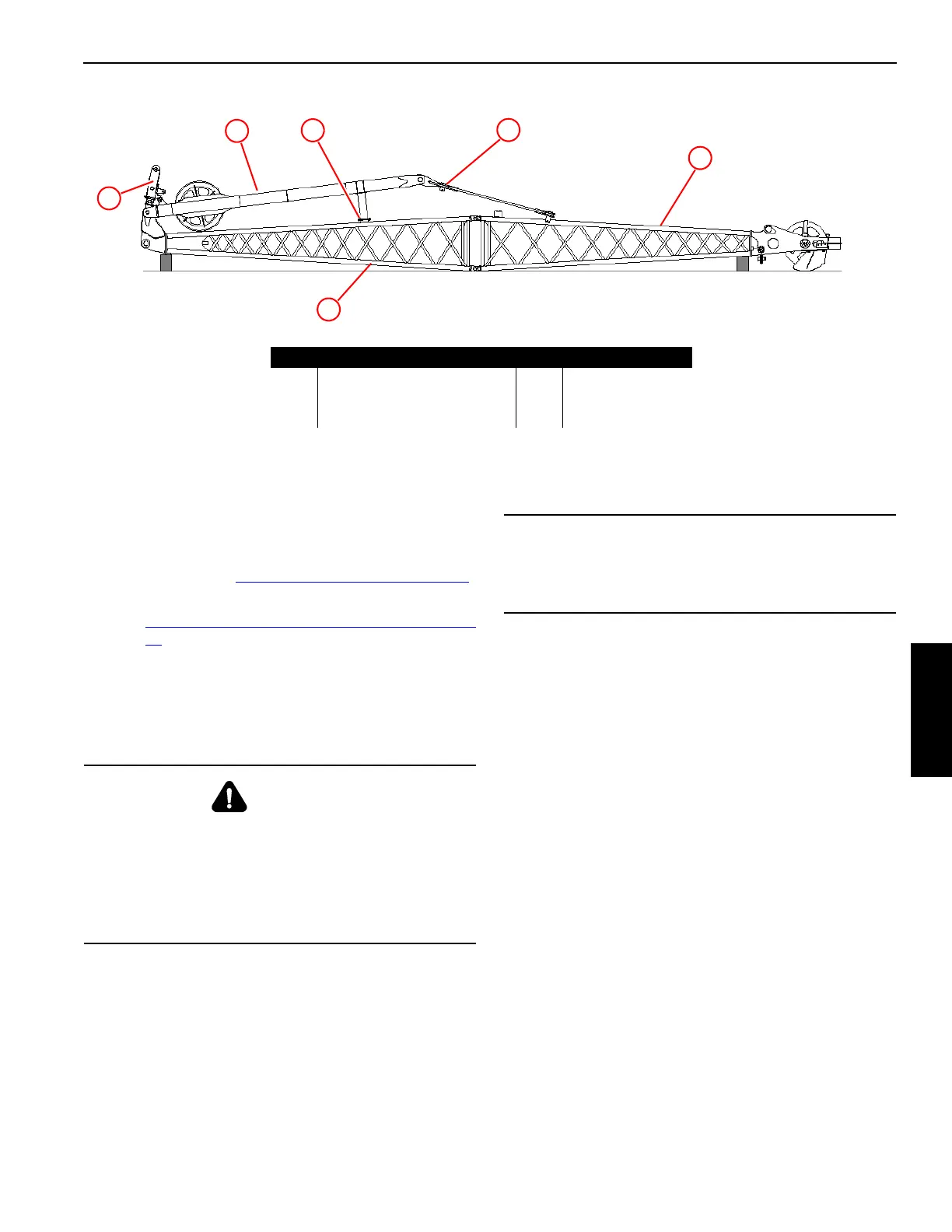

Figure 4-78
1
3
5
4
Item Description Item Description
1Jib Strut 4Jib Top
2 Bumper 5 Jib Butt
3 Backstay Links and Spreaders 6 Jib Stop
14COM4166b
6
2
Shipping Configuration
WARNING
Crushing Injury Hazard!
To prevent death or serious injury, do not stand on, inside,
or under the jib components when they are being lifted
into place.
Stay outside the jib components when installing
connecting pins.
CAUTION
Avoid Jib Damage!
Use synthetic lifting slings when handling components
that do not have lifting lugs.
