SETUP AND INSTALLATION MLC165-1 OPERATOR MANUAL
4-12
Published 08-06-19, Control # 237-09_v2
Remove Cab Window Covers
If equipped, remove and store the cab window covers:
• Standard Cab, see Figure 4-6 on page 4-8
.
• Vision Cab, see Figure 4-7 on page 4-9
.
Deploy Operator Cab
See Figure 4-9 for the following procedure.
Rotate the operator cab (1) to the operating position as
follows:
1. Remove the hair-pin cotter (3, View A) from the top
retaining hole in the hitch pin (4).
2. Raise the hitch pin (4, View A) to the disengaged
position (bottom retaining hole visible) and reinstall the
hair-pin cotter (3).
3. Rotate the cab (1) 90° from the shipping position (View
B) to the working position (View C).
4. Remove the hair-pin cotter (3, View A) and lower the
hitch pin (4) to the engaged position.
5. Reinstall the hair-pin cotter (3, View A).
6. Rotate the mirror (5, View C) to the operating position.
Item Description
1 Operator Cab
2 Rotating Bed
3 Hair-Pin Cotter
4Hitch Pin
5 Mirror
A Shipping Hole
B Operating Hole
View A
View B
SHIPPING
View C
WORKING

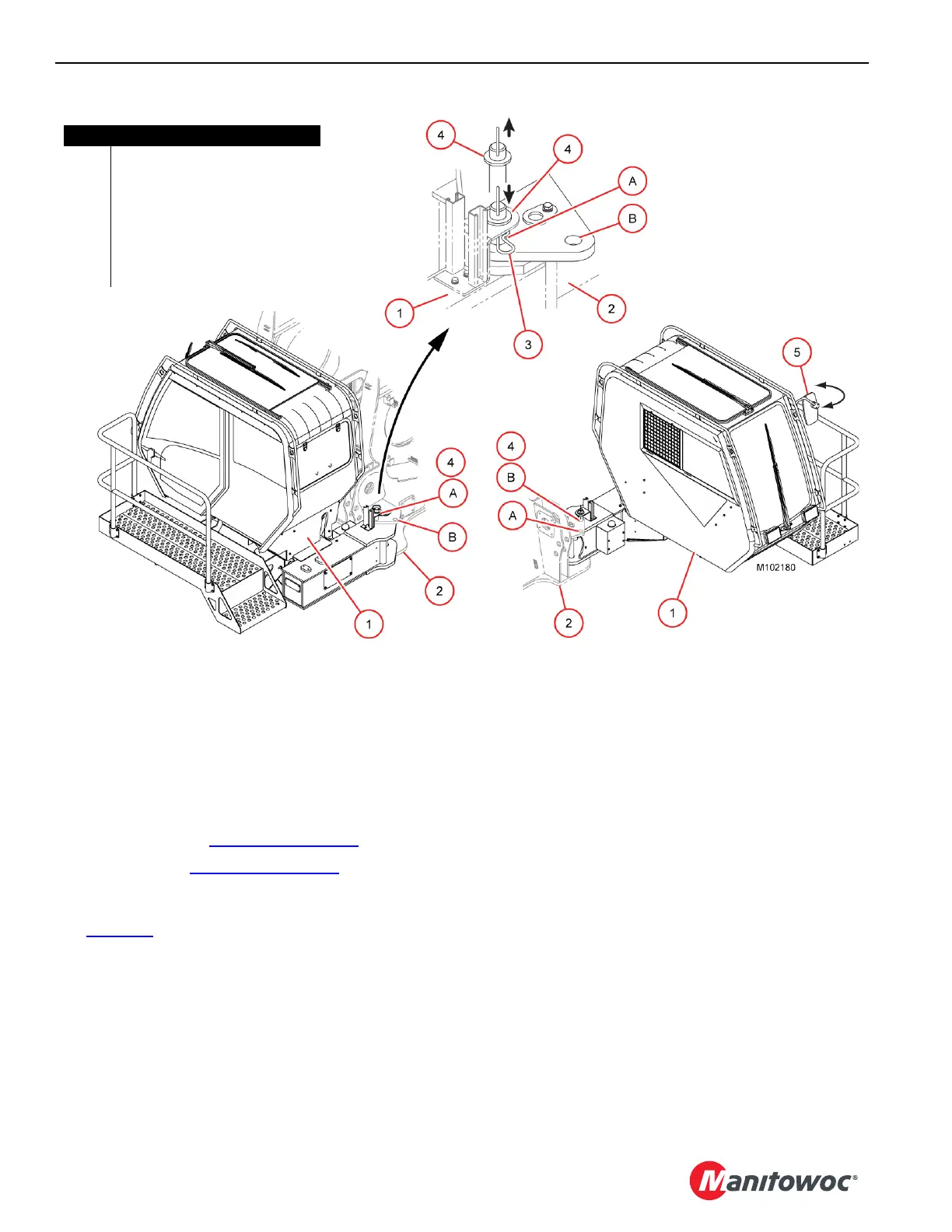

Figure 4-9
STANDARD CAB SHOWN
VISION CAB SIMILAR
