SETUP AND INSTALLATION MLC165-1 OPERATOR MANUAL
4-124
Published 08-06-19, Control # 237-09_v2
RIGGING WINCH OPERATION

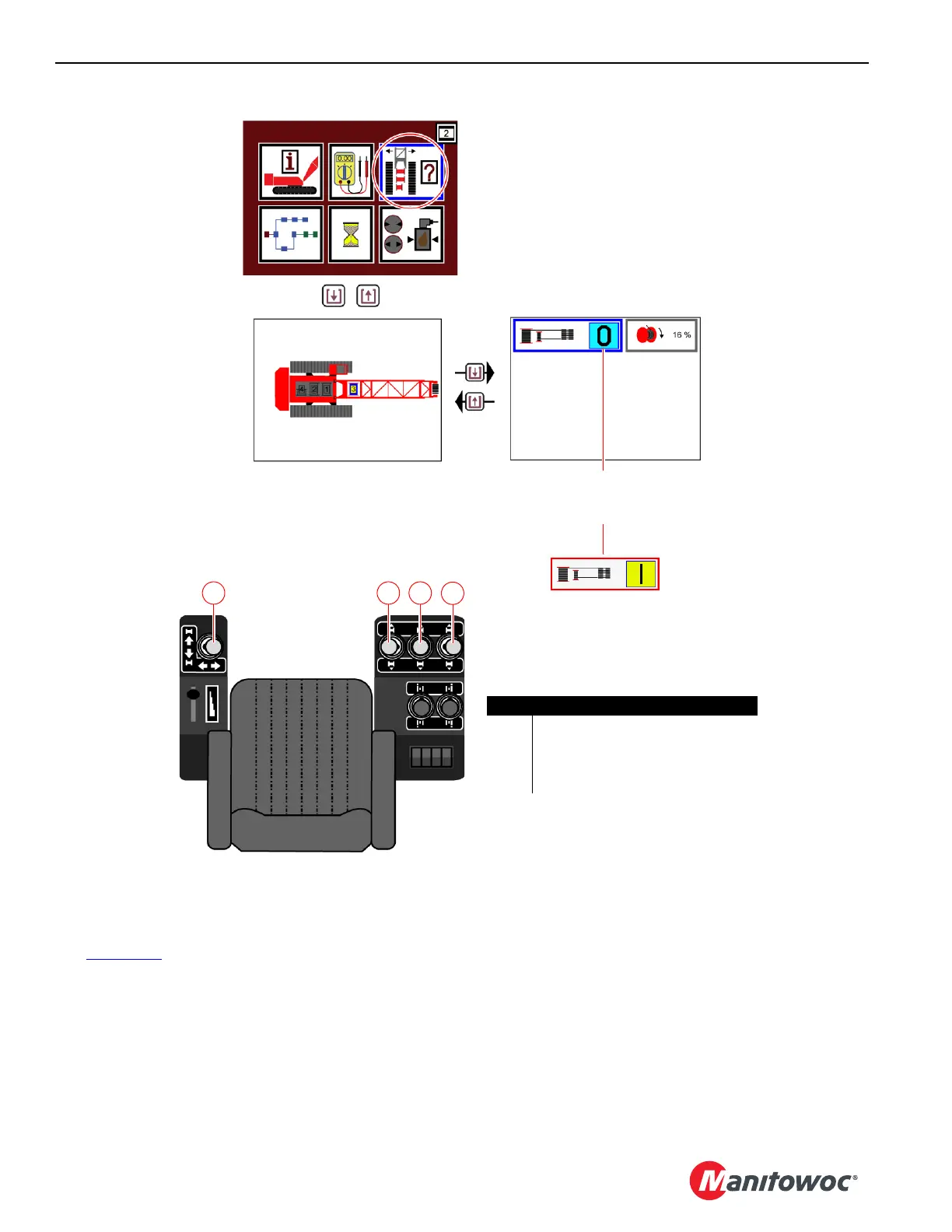

See Figure 4-97 for the following instructions.
If your crane is equipped with the optional rigging winch
(Drum 0), it can be used to assist in reeving the desired load
line through the boom point and load block sheaves.
See the Rigging Winch Assembly drawing at the end of this
section for wire rope routing.
Selecting Rigging Winch Mode
TO TURN RIGGING WINCH MODE ON —
1. Navigate to the desired Function Mode screen in the
main display.
See the MLC165-1 Main Display Operation Manual for
detailed instructions.
2. Enter the function mode screen.
Main Display Screen
Function Selection Screen
Function Mode Screen
Rigging Winch OFF
OR
Rigging Winch ON
0 1 2
3
Item Description
0 Drum 0 (rigging winch)
1 Drum 1 (front drum)
2 Drum 2 (rear drum)
3 Drum 3 (auxiliary drum in boom butt)
Figure 4-97
