MLC165-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3

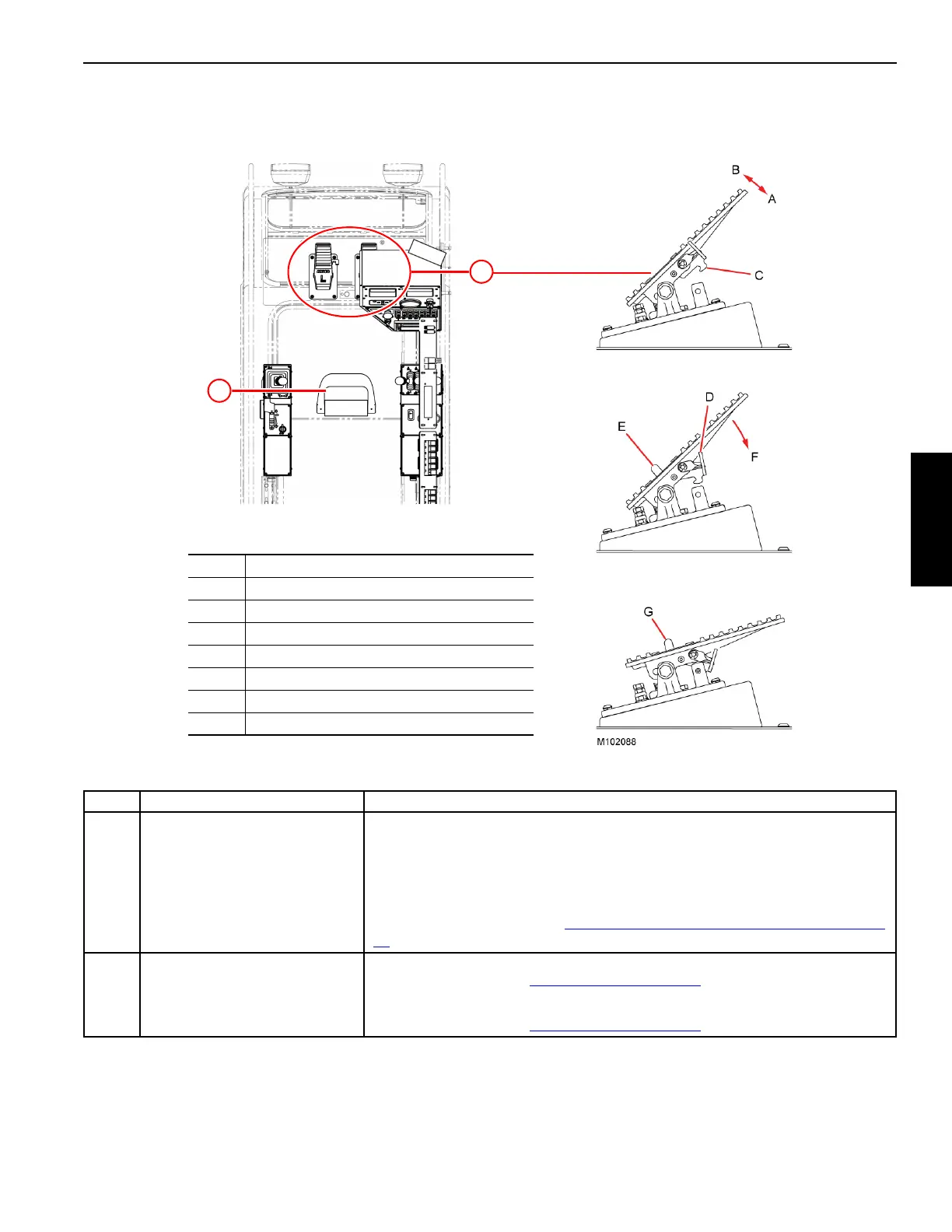

Foot Pedals
Table 3-3. Foot Pedals
Item Name Description
1 Free Fall Brake Pedals
The crane can be equipped with 1 or 2 optional free fall brake pedals. The left
pedal is for Drum 1 and the right pedal is for Drum 2.
Each free fall equipped drum has a spring-applied, hydraulically-released
clutch/brake that is controlled by the brake pedals shown above.
When free falling a load, the brake pedal must be used to slow down and stop
the load. To use free fall, see Drum 1 or Drum 2 Free Fall Operation on page 3-
42.
2 Foot Throttle
• Press down on the foot throttle to INCREASE engine speed above the hand
throttle setting (see Hand Throttle on page 3-6
).
• Release the foot throttle to DECREASE engine speed to idle or to the hand
throttle setting (see Hand Throttle on page 3-6
).
Front
Operator cab
M100234
Item Description
A Press Pedal Down to Apply Brake
B Ease Pedal Up to Release Brake
C Latch Stored
D Press Latch Down
E Latch Release Pops Up
F Press Pedal Down Fully to Latch It
G Press Latch Release to Unlatch Pedal
1
2
