Manitowoc MLC165-1 User Manual

Manitowoc Published 08-06-19, Control # 237-09_v2 4-111
MLC165-1 OPERATOR MANUAL SETUP AND INSTALLATION
4
Connect Backstay Pendants to Boom
See Figure 4-84 for the following procedure.
1. Pin the backstay links (10) to the backstay lugs (11).
2. Raise the jib strut (1):
a. Using appropriate slings, attach a hook from an
assist crane to the jib strut (1).
b. Slowly lift the strut over-center with the assist crane.
Use extreme caution not to side load the strut while
lifting.
c. If required to gain enough slack to allow pinning the
backstay pendants (2), raise the jib point (12). Use a
fork-lift truck or another crane.
3. Connect the backstay pendants (2):
• For 0° offset, connect backstay pendants (2) to
backstay links (10, Figure 4-84
).
• For 15° offset, connect offset links (8, Figure 4-83
)
to backstay links (10).
• For 25° offset, connect offset pendants (9,
Figure 4-83
) to backstay links (10).
4. Disconnect the lifting slings.

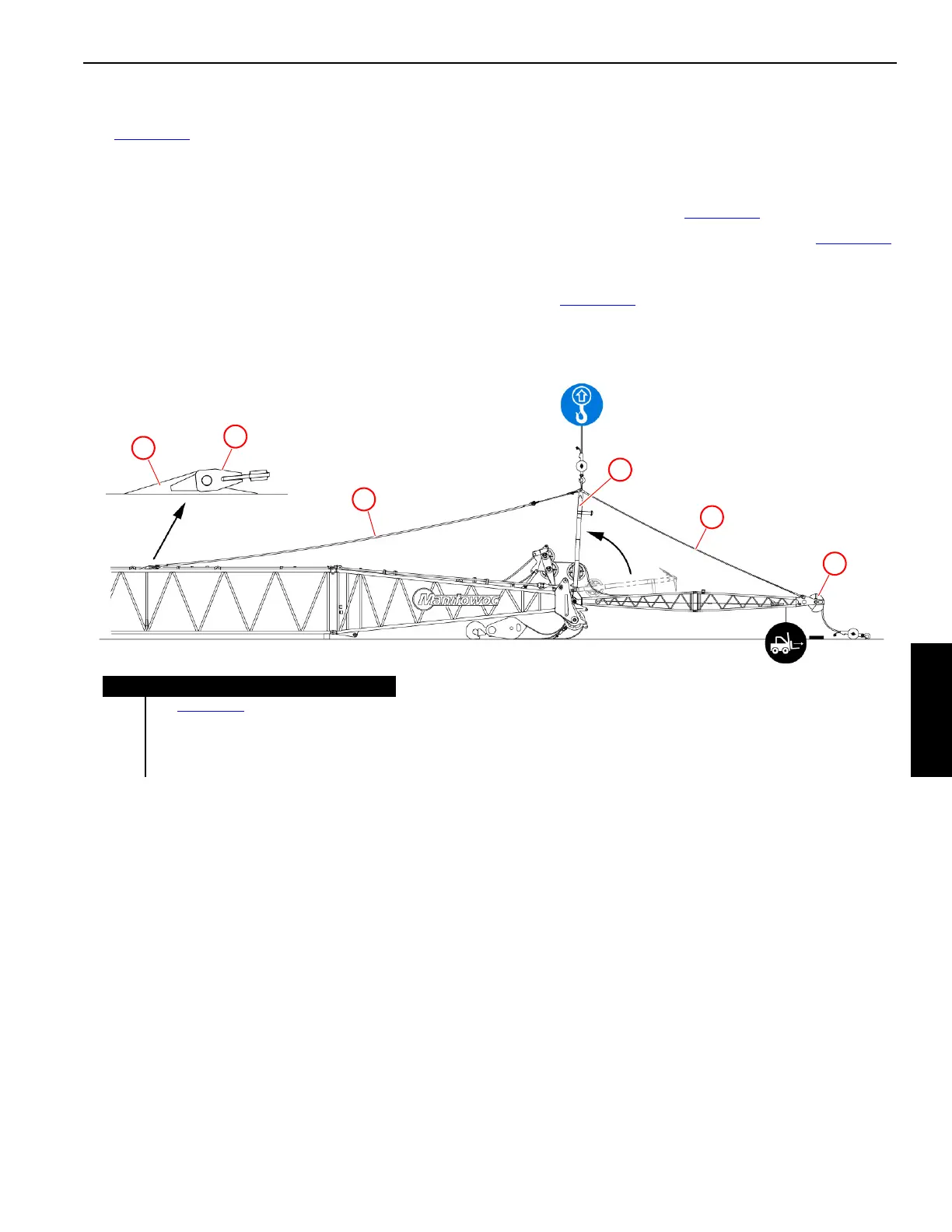

Figure 4-84
Item Description
1-9 See Figure 4-83
10 Backstay Link with Pin and Cotter Pins (2)
11 Backstay Lug (2)
12 Jib Point
M100925
1
7
12
11
10
2
