OPERATING CONTROLS AND PROCEDURES MLC165-1 OPERATOR MANUAL
3-22
Published 08-06-19, Control # 237-09_v1
Camera Controls

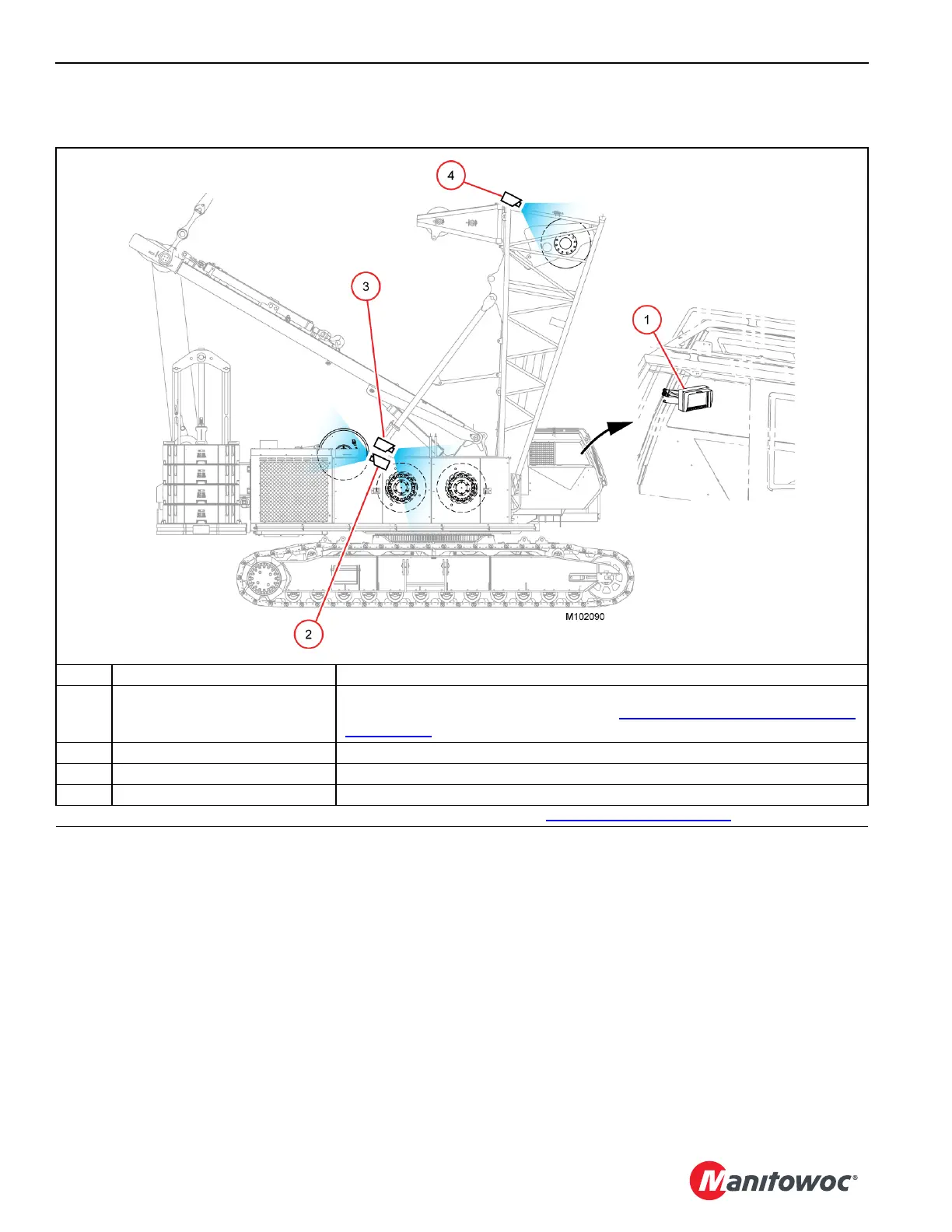

Table 3-8. Camera Controls
Item Name Description
1 Camera Monitor
The camera monitor displays the selected drum and contains switches for
selecting and operating the cameras. See Camera Monitor Operating Controls
on page 3-23.
2 Drum 1 and Drum 2 Camera Views the front and rear load drums.
3 Drum 4 Camera Views the boom hoist drum.
4 Drum 3 Camera Views the drum in the boom butt (auxiliary or luffing).
NOTE Each camera has a light. To turn the camera lights on and off, see Light Switches on page 3-19
.
