Manitowoc MLC165-1 User Manual

Manitowoc Published 08-06-19, Control # 237-09_v2 4-109
MLC165-1 OPERATOR MANUAL SETUP AND INSTALLATION
4
Install Jib Pendants
The jib pendants (and backstay pendants) are furnished in
matched sets of two and must be installed in matched sets.
1. Attach the two basic (30 ft 9 in, 9,4 m) pendants (1,
Figure 4-82
) to the lugs on the jib top using pins and
cotter pins (2).
2. Attach any remaining jib pendants according to the jib
length. For the correct pendants to use, refer to the table
in the Jib Assembly Drawing at the end of this section.
The shortest pendants must be closest to the butt.
3. Pin the pendants to the jib strut (3).

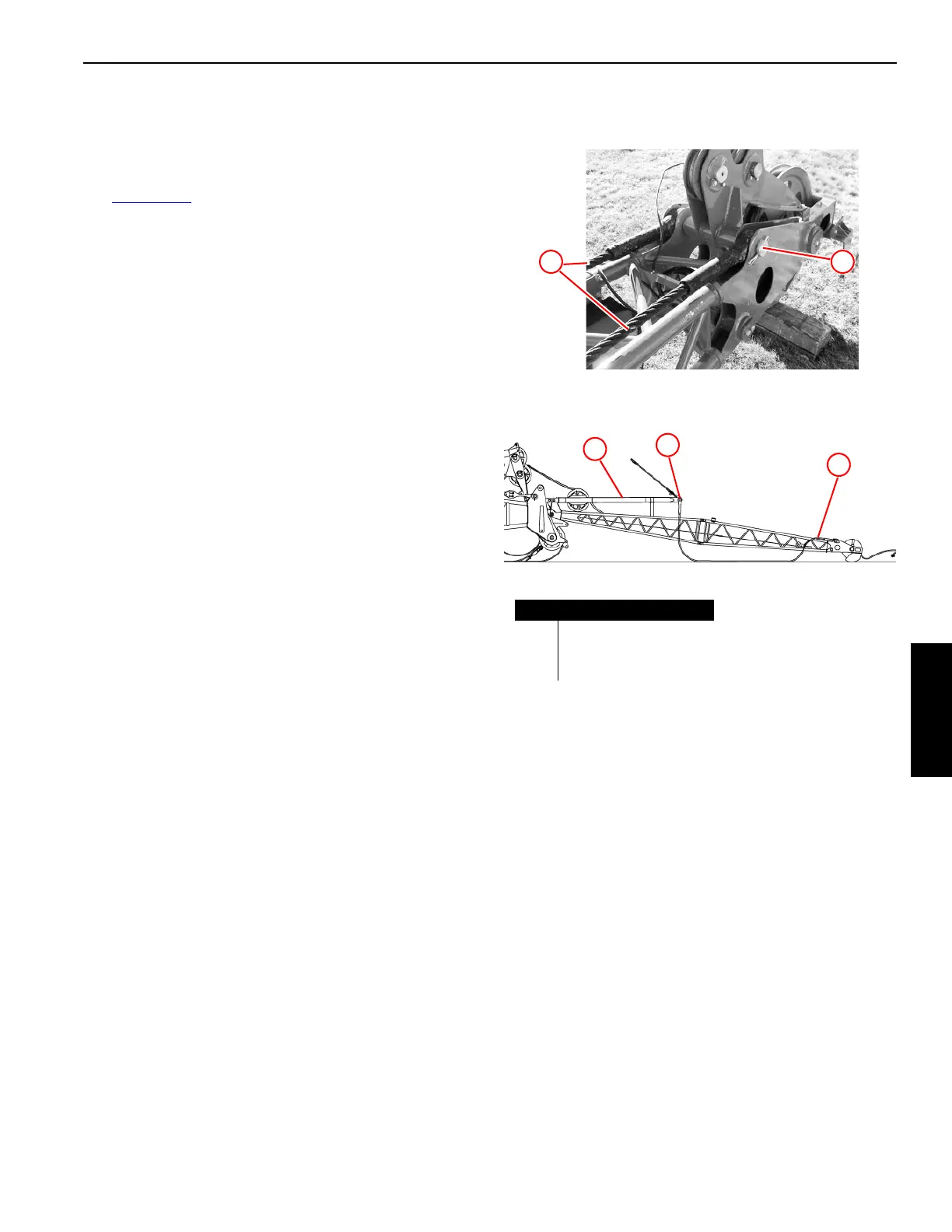

Figure 4-82
2
3
2
1
Item Description
1 Basic Pendants
2 Pin with Cotter Pin
3Jib Strut
P548a
M100923
1
