SETUP AND INSTALLATION MLC165-1 OPERATOR MANUAL
4-10
Published 08-06-19, Control # 237-09_v2

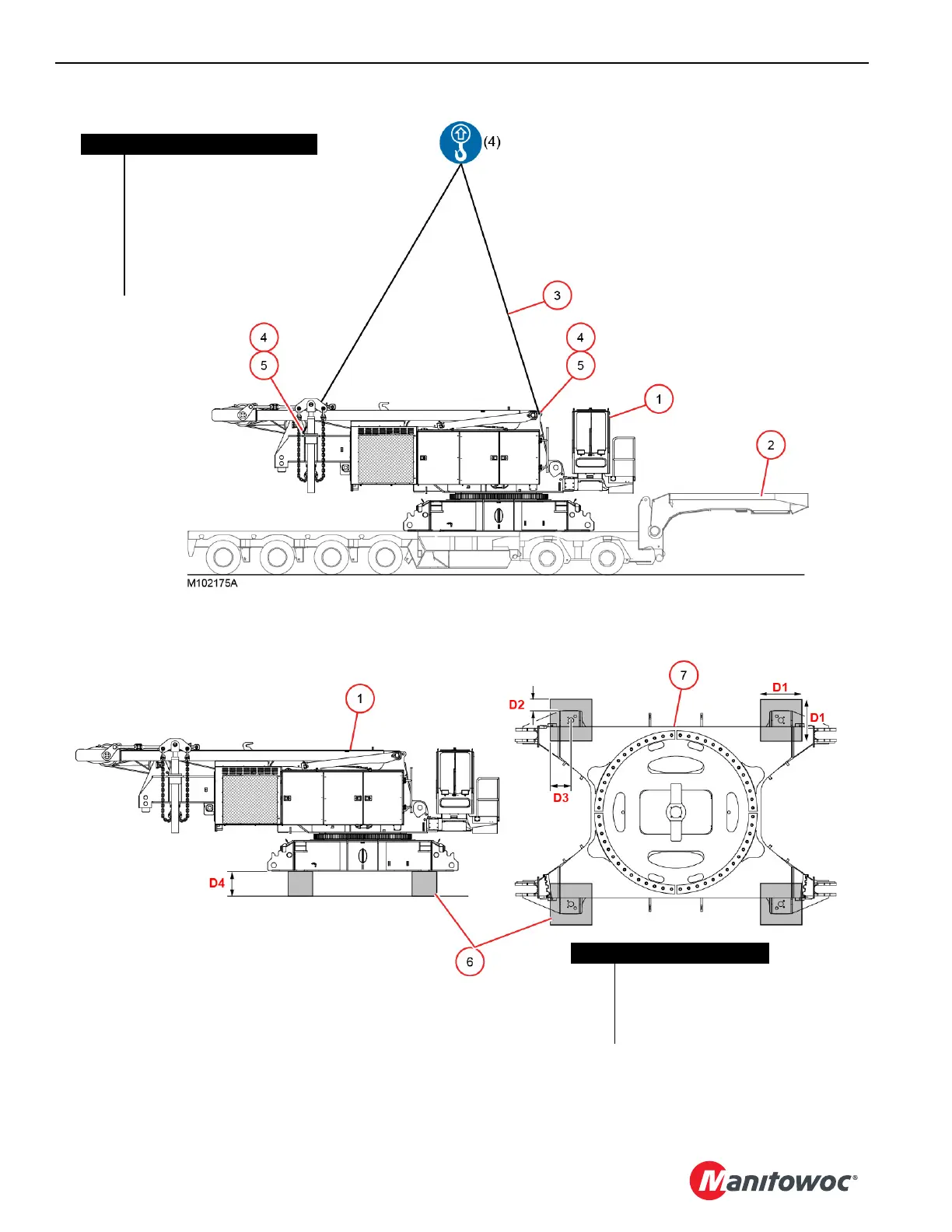

Figure 4-8
Item Description
1 MLC165-1 Shipping Package
2Trailer
3 Lifting Sling (4)
4 Shackle (4)
5 Lifting Hole (4)
6Blocking
7 Carbody
Item Dimension
D1 24 in (610 mm)
D2 6 in (152 mm)
D3 12 in (305 mm)
D4 25-28 in (635-711 mm)
