SETUP AND INSTALLATION MLC165-1 OPERATOR MANUAL
4-56
Published 08-06-19, Control # 237-09_v2

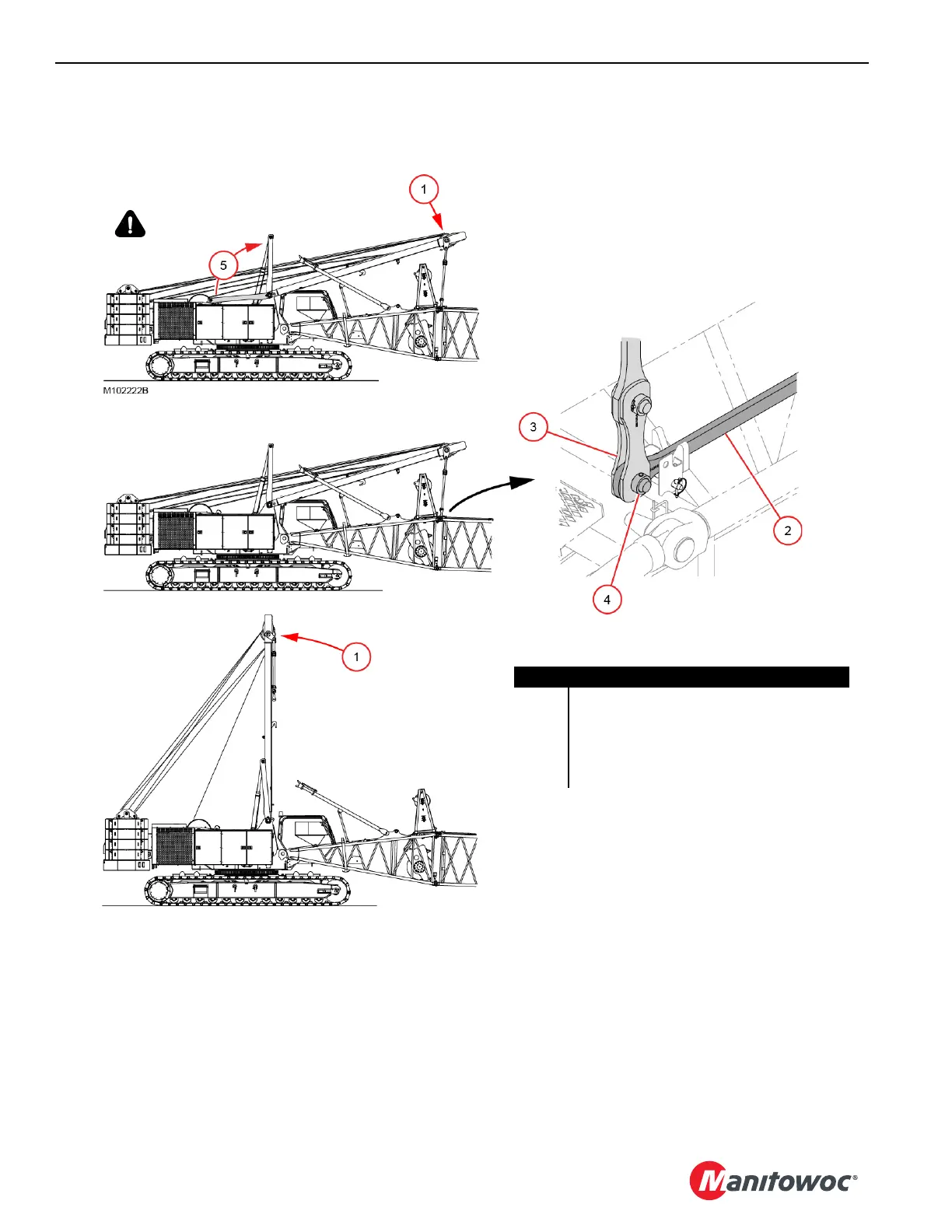

Figure 4-46
Item Description
1 Mast Lowered to 162°
2 Boom Strap (2)
3 Mast Link (4)
4 Pin with Collar, Clevis Pin and Cotter Pin (2)
5 Mast Assist Arms (fully raised)
View B
View A
View C
FULLY
RAISED
