SETUP AND INSTALLATION MLC165-1 OPERATOR MANUAL
4-64
Published 08-06-19, Control # 237-09_v2

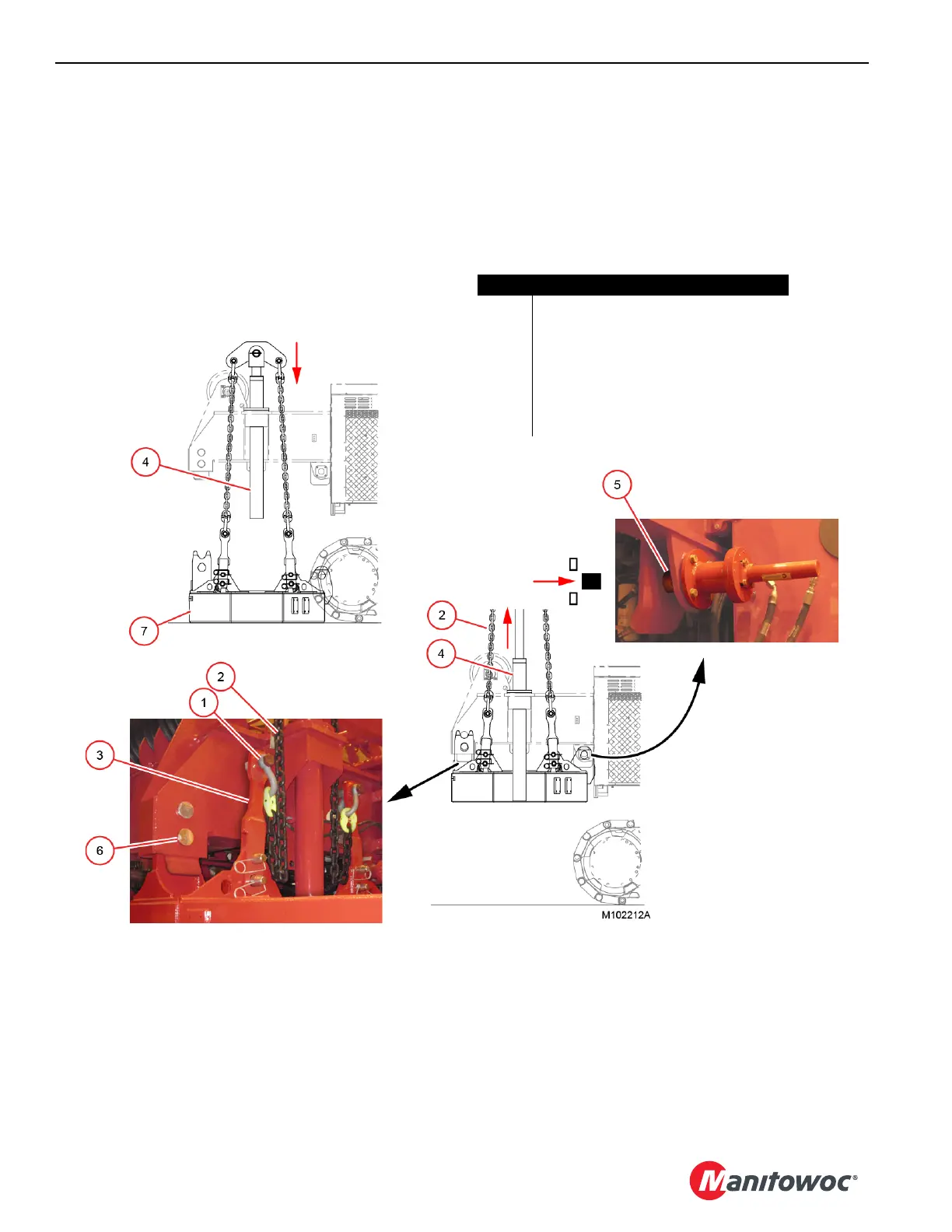

Figure 4-51
NOTE: For clarity, the counterweight boxes are not shown.
View A
View C
View D
Item Description
1 Shackle (4)
2 Handling Chain (4)
3 Lifting Link (4)
4 Counterweight-Handling Cylinder (2)
5 Inner Connecting Pin (2)
6 Outer Connecting Pin with Safety Pin (2)
7 Counterweight Tray
View B
