Manitowoc MLC165-1 - Page 201

Manitowoc Published 08-06-19, Control # 237-09_v2 4-87
MLC165-1 OPERATOR MANUAL SETUP AND INSTALLATION
4
View A
View B
M100450
1
2
3
4
4
6
8
9
4
7
5
4
Item Description
1 Boom or Jib Chord
2 Boom or Jib Number
3 Manitowoc Manufacturing Code
4 Manitowoc Part Number
5 Pendant
5a Aluminum Tag (if equipped)
6 Manitowoc Purchase Order Number
7 Manufacturer’s Number
8 Wire Rope Type
9Diameter
10 Length
11 Boom Strap
12 Link
13 Part Number and Serial Number
5a
6
10
10

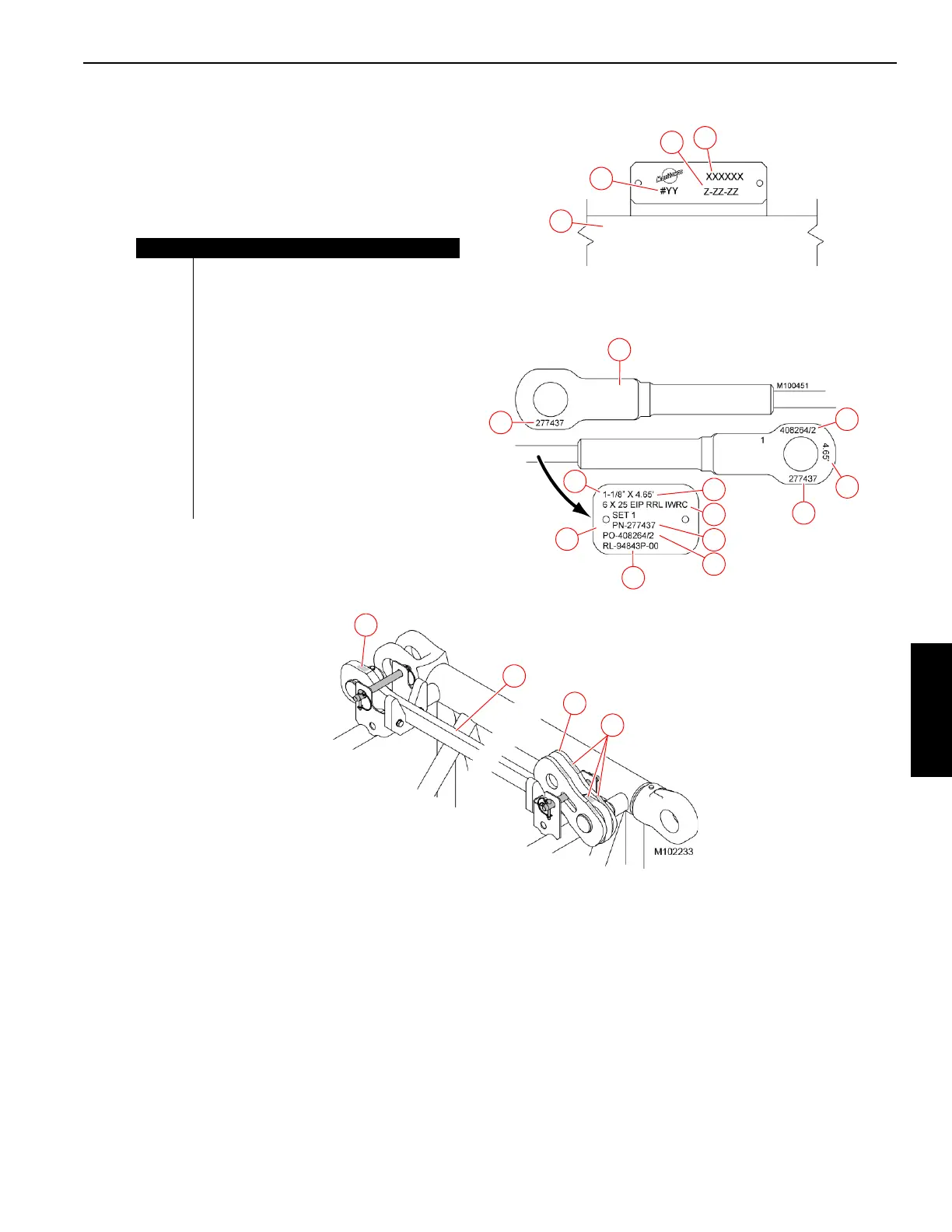

Figure 4-63
11
12
View C
13
13
