Manitowoc Published 08-06-19, Control # 237-09_v1 3-3
MLC165-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
6 Sun Visor Optional. Can be positioned to reduce sun glare through windows.
7 Front Window Emergency exit. Can be kicked out if the sliding door cannot be used.
8 Overhead Windshield Wiper See Windshield Wipers on page 3-18
.
9 Dome Light Light has an on-off push button switch.
10 Overhead Shade
Optional. Can be positioned to block sun glare through overhead
window.
11 RCL/RCI Warning Light Optional. See RCL/RCI Warning Light on page 3-26
.
12 GPS Antenna (if equipped) For CraneSTAR use.
13 Fire Extinguisher
Used to extinguish Class A, B, or C fires. One fire extinguisher is
located in the cab. A second, optional fire extinguisher is located in the
right side enclosure.

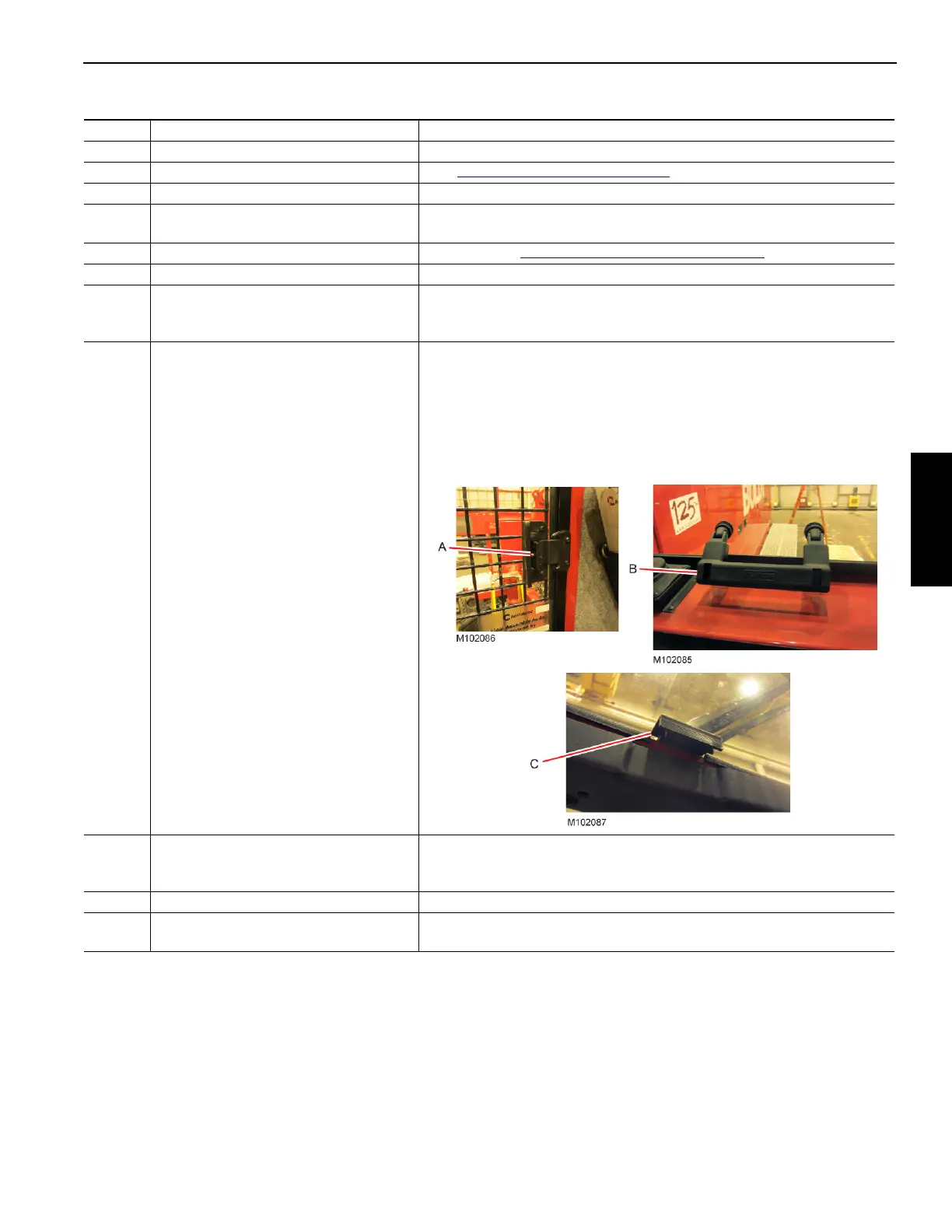

14 Window Latches
Right window latch (A): squeeze handle to unlatch and slide window
forward for ventilation. Pull handle fully back to latch window closed.
Rear window latch (B): raise handle to unlatch and open window for
ventilation. Push handle down to close and latch window.
Overhead window latch (C): squeeze handle to unlatch and slide
window back for ventilation. Push handle fully forward to latch window
closed.
15 Rear-View Mirrors
Optional. Adjustable rear-view mirrors mounted on the operator cab
and at the right-front corner of the rotating bed allow the operator to
view the rear of the crane.
16 Windshield Washer Tank Fill the windshield washer tank with a non-freezing cleaning fluid.
17 External Limit Bypass Switch
Cranes that comply with CE requirements are equipped with this
switch. See the MLC165-1 RCL/RCI Manual.
Table 3-1. Cab Controls and Indicators
