Set Home
Establish the starting position of the crosshead as the Home position. You can auto-return to this
position; this may be set in subsequent sections of the wizard.
Height Mode
To measure distance relative to a reference point established via the Height / Length Offset
function in Manual Control, enable Height Mode. Height measurements are commonly used in
spring testing.
Single Reading
Only a single result and graph data point are displayed, useful when running a batch of tests
requiring only one result, such as a maximum load. Select the desired result in Results Setup.
Sample Rate
By default, IntelliMESUR records continuous data points for each run. Set the desired rate, up to
1,000 Hz (data points per second). IntelliMESUR can capture up to 4 million data points per run,
up to 10 runs, for a total of 40 million data points.
Digital Filter
Smooths out load readings in situations where there is mechanical interference in the work area
or test sample, as explained in the Preferences section.
Batch Mode
To set up a batch of multiple runs, enable this mode, then specify the number of runs.

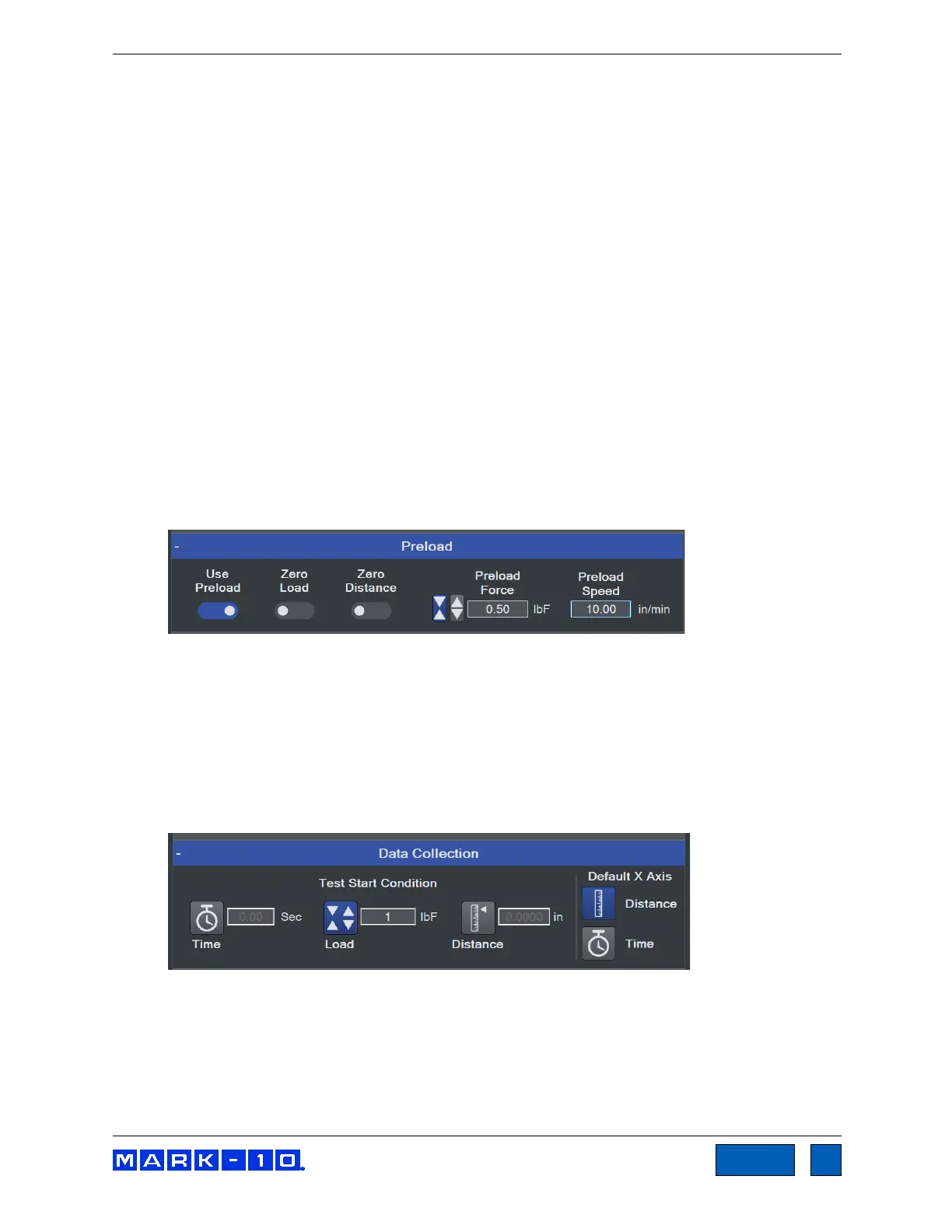

Preload Panel
The preload function zeroes the load and/or position values upon contact with the sample,
defined as a user-specified force. The speed of the preload phase of the test may also be set
independently of the main test speed, which is configured in the subsequent step, Load Limit
Setup.
If preload is desired, enable the appropriate functions and specify the desired preload force and
speed.
Data Collection Panel
Configure the trigger at which data collection will start. Select from an elapsed time (relative to the
start of crosshead motion), load, or distance. The default graph x-axis may be also be configured,
although this can be changed at time of test in the Graph screen.
