Marvell Integrated Controller 88F6281 - Figure 18: MDC Master Mode Test Circuit; Figure 19: SMI Master Mode Output AC Timing Diagram; Figure 20: SMI Master Mode Input AC Timing Diagram

88F6281
Hardware Specifications
Doc. No. MV-S104859-U0 Rev. E Copyright © 2008 Marvell
Page 100 Document Classification: Proprietary Information December 2, 2008, Preliminary

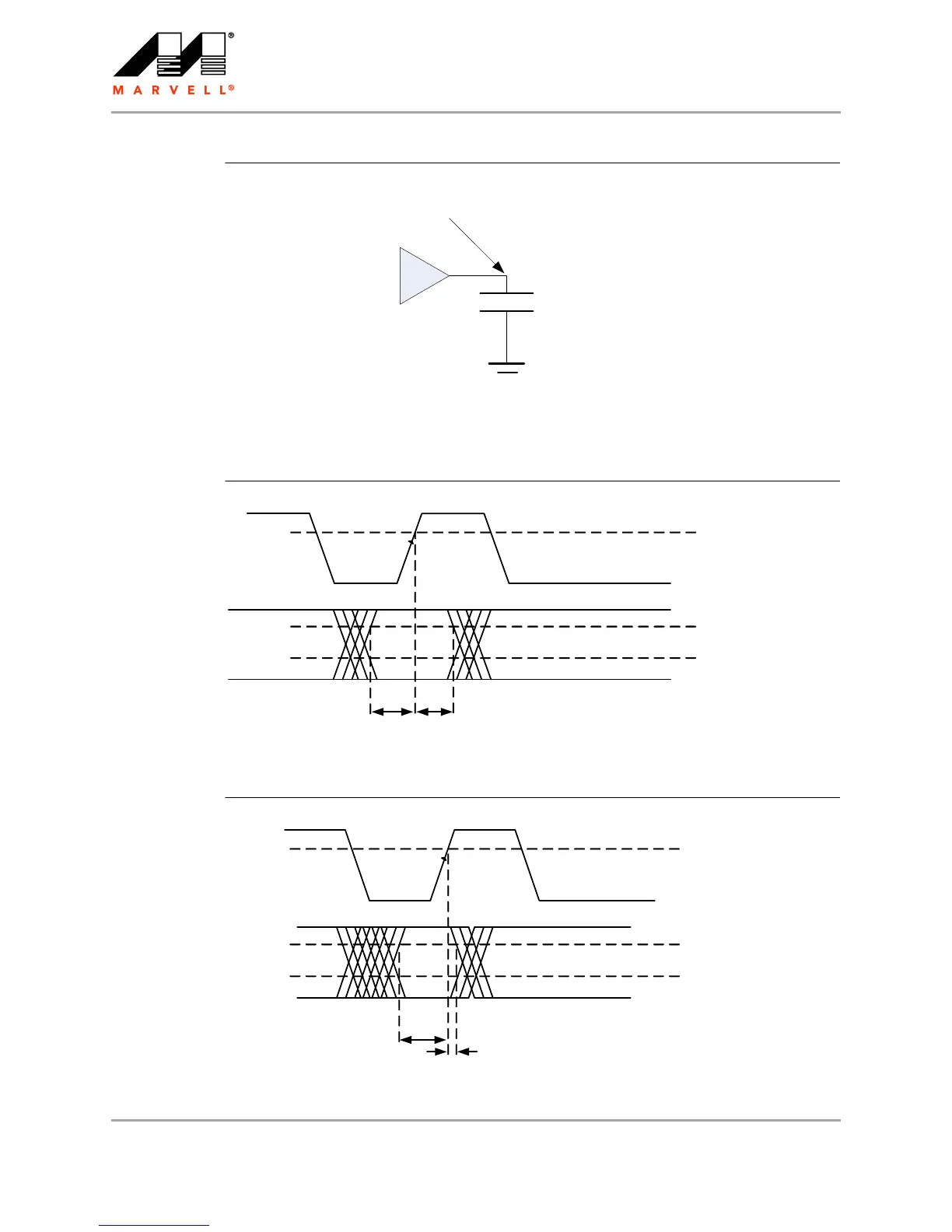

Figure 18: MDC Master Mode Test Circuit
8.6.6.3 SMI Master Mode AC Timing Diagrams
Figure 19: SMI Master Mode Output AC Timing Diagram
Figure 20: SMI Master Mode Input AC Timing Diagram
CL
Test Point
MDC
MDC
MDIO
VIH(min)
VIH(min)
VIL(max)
tOVAtOVB
MDC
MDIO
VIH(min)
VIH(min)
VIL(max)
tSU
tHO
