Marvell Integrated Controller 88F6281 - Figure 9: RGMII Test Circuit; Figure 10: RGMII AC Timing Diagram

88F6281
Hardware Specifications
Doc. No. MV-S104859-U0 Rev. E Copyright © 2008 Marvell
Page 94 Document Classification: Proprietary Information December 2, 2008, Preliminary
8.6.3.2 RGMII Test Circuit

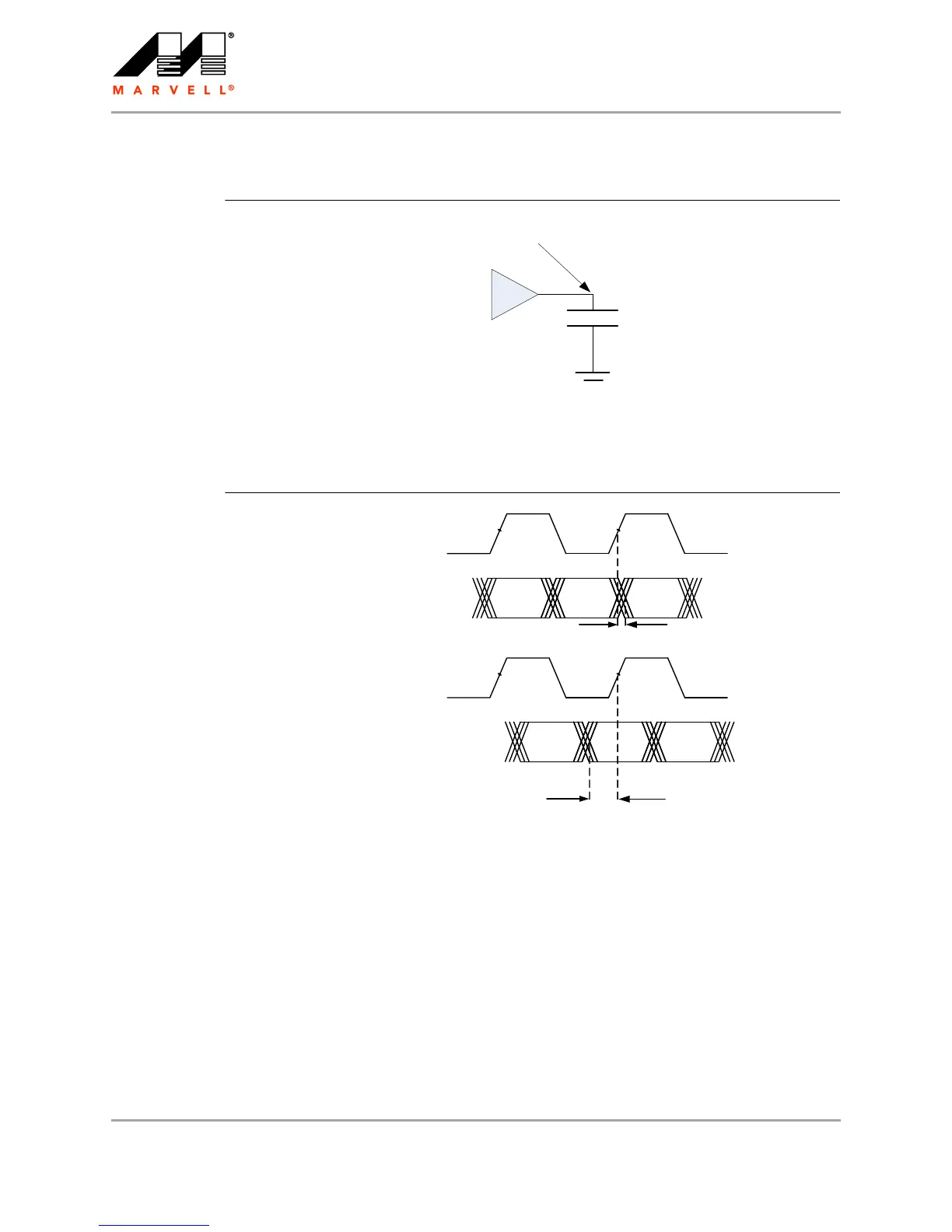

Figure 9: RGMII Test Circuit
8.6.3.3 RGMII AC Timing Diagram
Figure 10: RGMII AC Timing Diagram
CL
Test Point
(At Transmitter)
TX
DATA
TX
CLOCK
RX
DATA
RX
CLOCK
(At Receiver)
TskewT
TskewR
