Marvell Integrated Controller 88F6281 - Table 54: JTAG Interface AC Timing Table; Figure 21: JTAG Interface Test Circuit

Electrical Specifications
AC Electrical Specifications
Copyright © 2008 Marvell Doc. No. MV-S104859-U0 Rev. E
December 2, 2008, Preliminary Document Classification: Proprietary Information Page 101
8.6.7 JTAG Interface AC Timing
8.6.7.1 JTAG Interface AC Timing Table

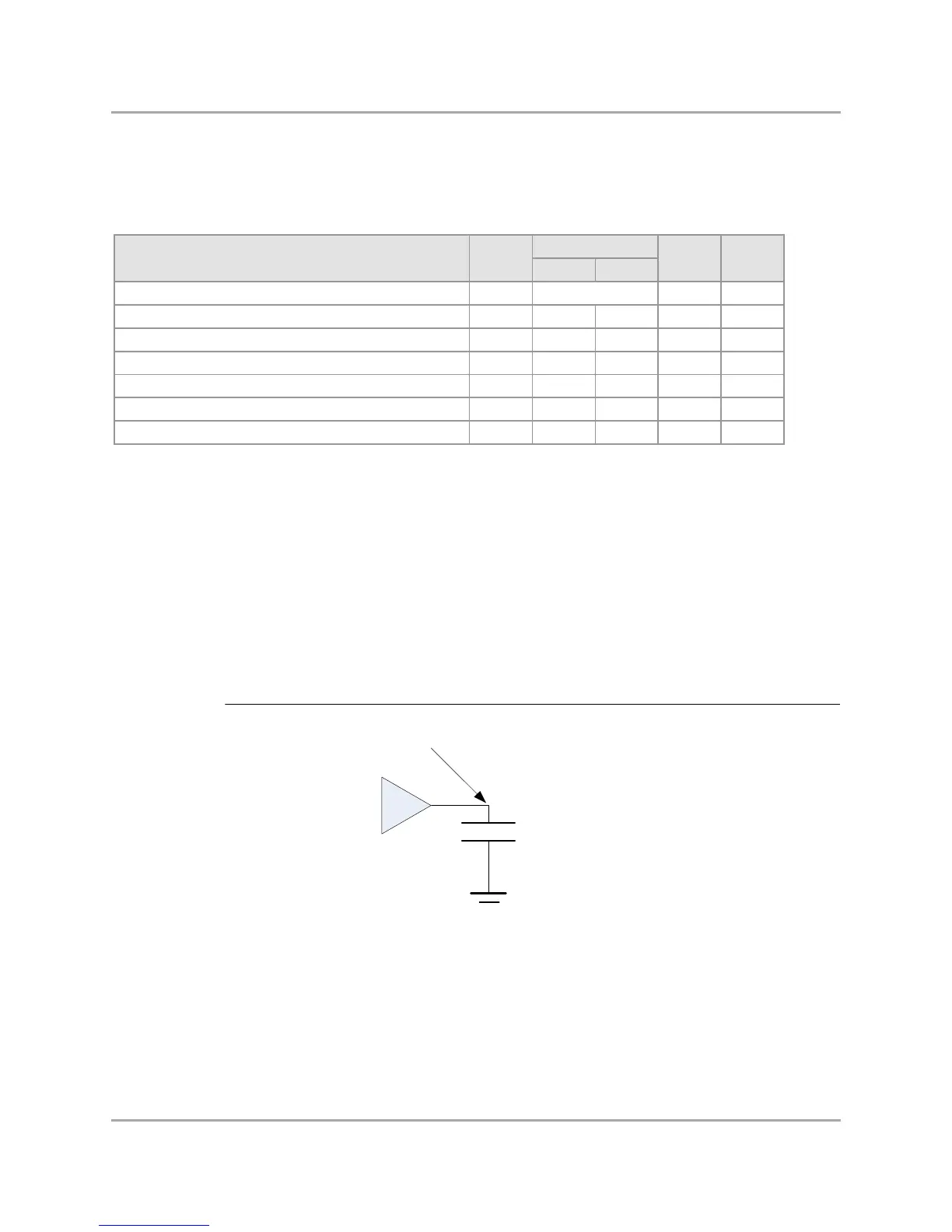

Table 54: JTAG Interface AC Timing Table
8.6.7.2 JTAG Interface Test Circuit
Figure 21: JTAG Interface Test Circuit
Min Max
JTClk frequency fCK MHz -
JTClk minimum pulse w idth Tpw 0.45 0.55 tCK -
JTClk rise/fall slew rate Sr/Sf 0.50 - V/ns 2
JTRSTn active time Trst 1.0 - ms -
TMS, TDI input setup relative to JTClk rising edge Tsetup 6.67 - ns -
TMS, TDI input hold relative to JTClk rising edge Thold 13.0 - ns -
JTClk falling edge to TDO output delay Tprop 1.0 8.33 ns 1
Note s:
General comment: All values w ere measured from vddio/2 to vddio/2, unless otherw ise specified.
General comment: tCK = 1/fCK.
1. For TDO signal, the load is CL = 10 pF.
2. Defined from VIL to VIH for rise time, and from VIH to VIL for fall time.
30.0
Note s
30 MHz
Description Symbol Units
CL
Test Point
