Electrical Specifications

Differential Interface Electrical Characteristics

December 2, 2008, Preliminary Document Classification: Proprietary Information Page 121

8.7.2.2 PCI Express Interface Test Circuit

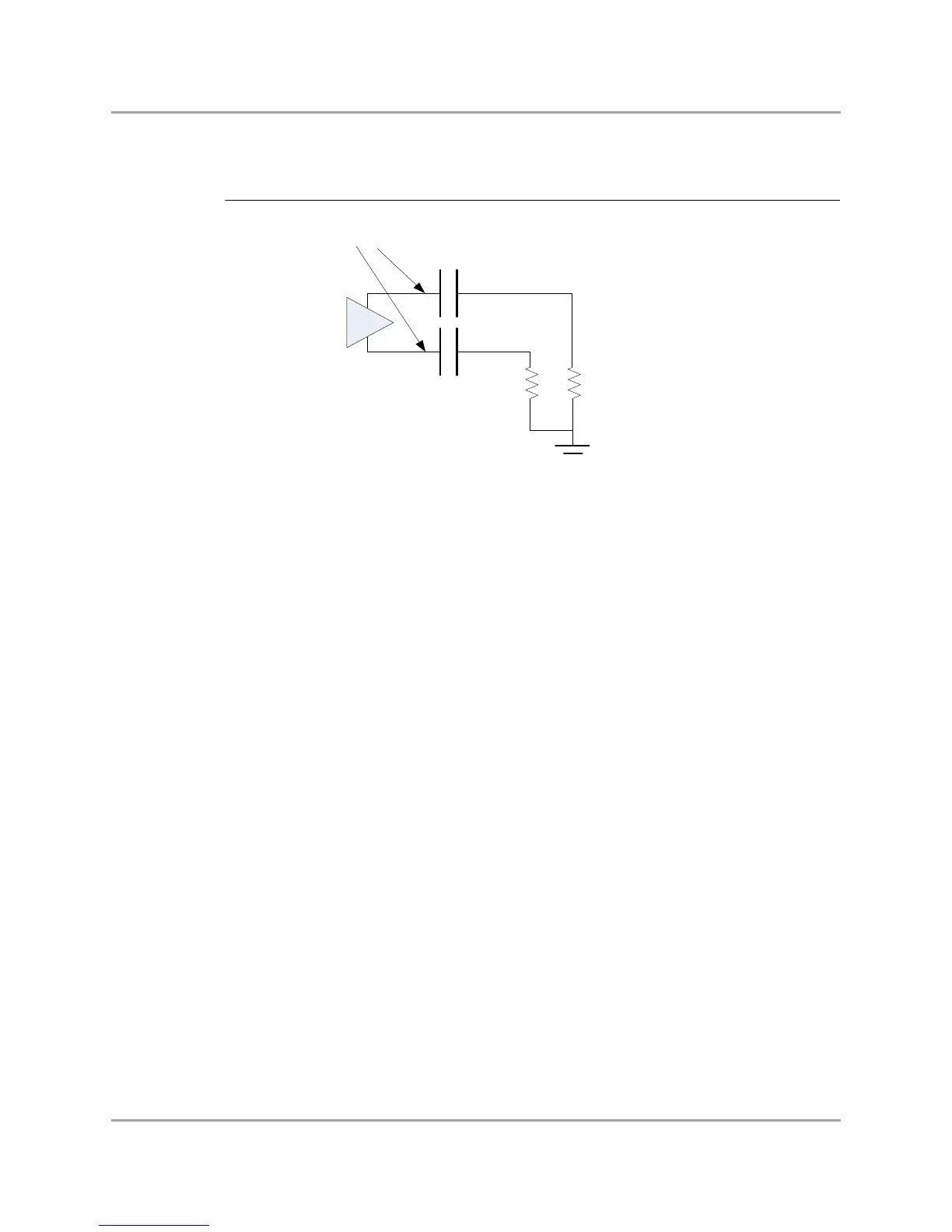

Figure 43: PCI Express Interface Test Circuit

When measuring Transmitter output parameters, C_TX is an optional portion of the

Test/Measurement load. When used, the value of C_TX must be in the range of 75 nF to 200 nF.

C_TX must not be used when the Test/Measurement load is placed in the Receiver package

reference plane.

Test Points

C_TX

50 ohm50 ohm

C_TX

D+

D-
