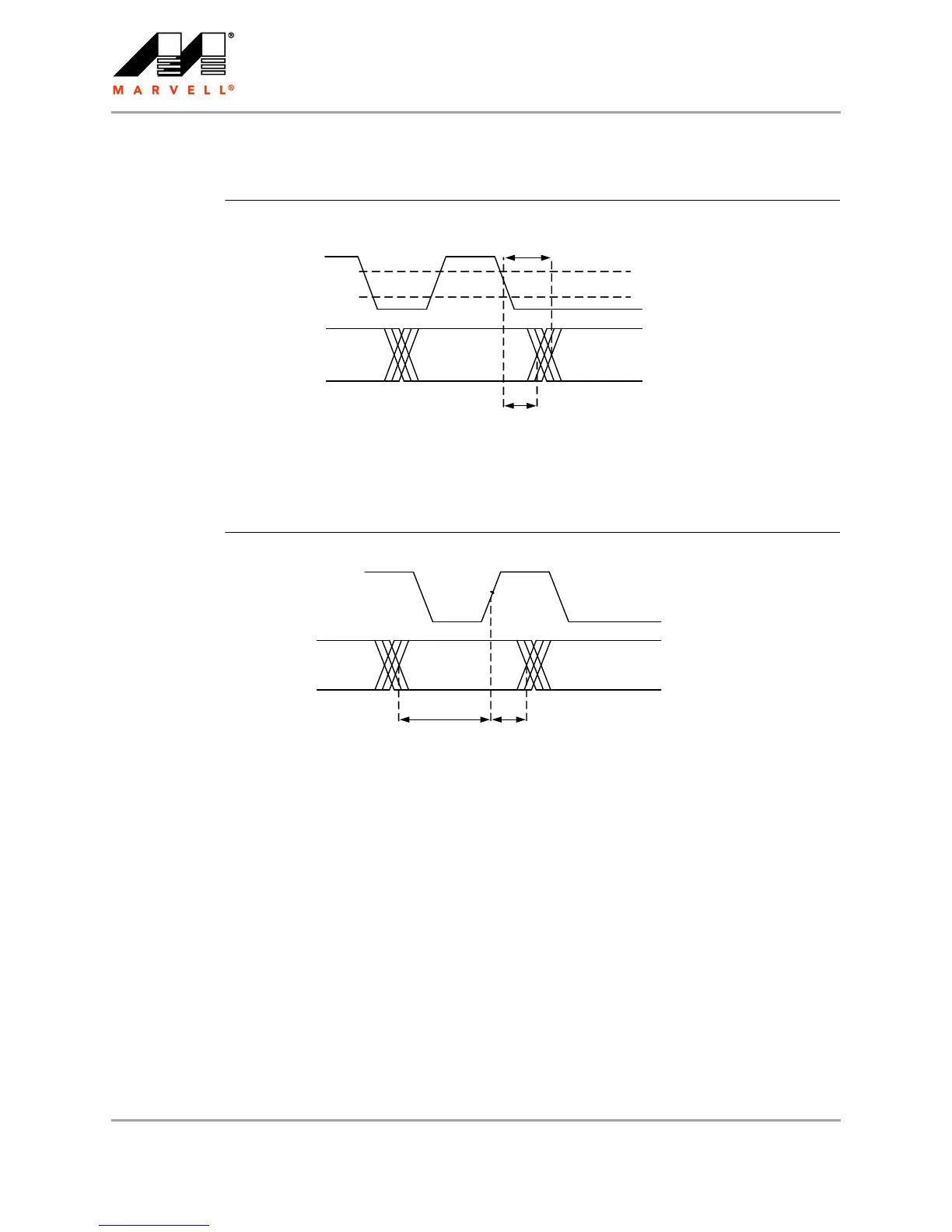

8.6.7.3 JTAG Interface AC Timing Diagrams
Figure 22: JTAG Interface Output Delay AC Timing Diagram
Figure 23: JTAG Interface Input AC Timing Diagram
JTCK
TDO
Tprop
(min)
Tprop
(max)
VIH
VIL
Thold
Tsetup
JTCK
TMS,TDI
