11.2 Package Marking
Figure 49 shows a sample Commercial package marking and pin 1 location for the 88F6281.

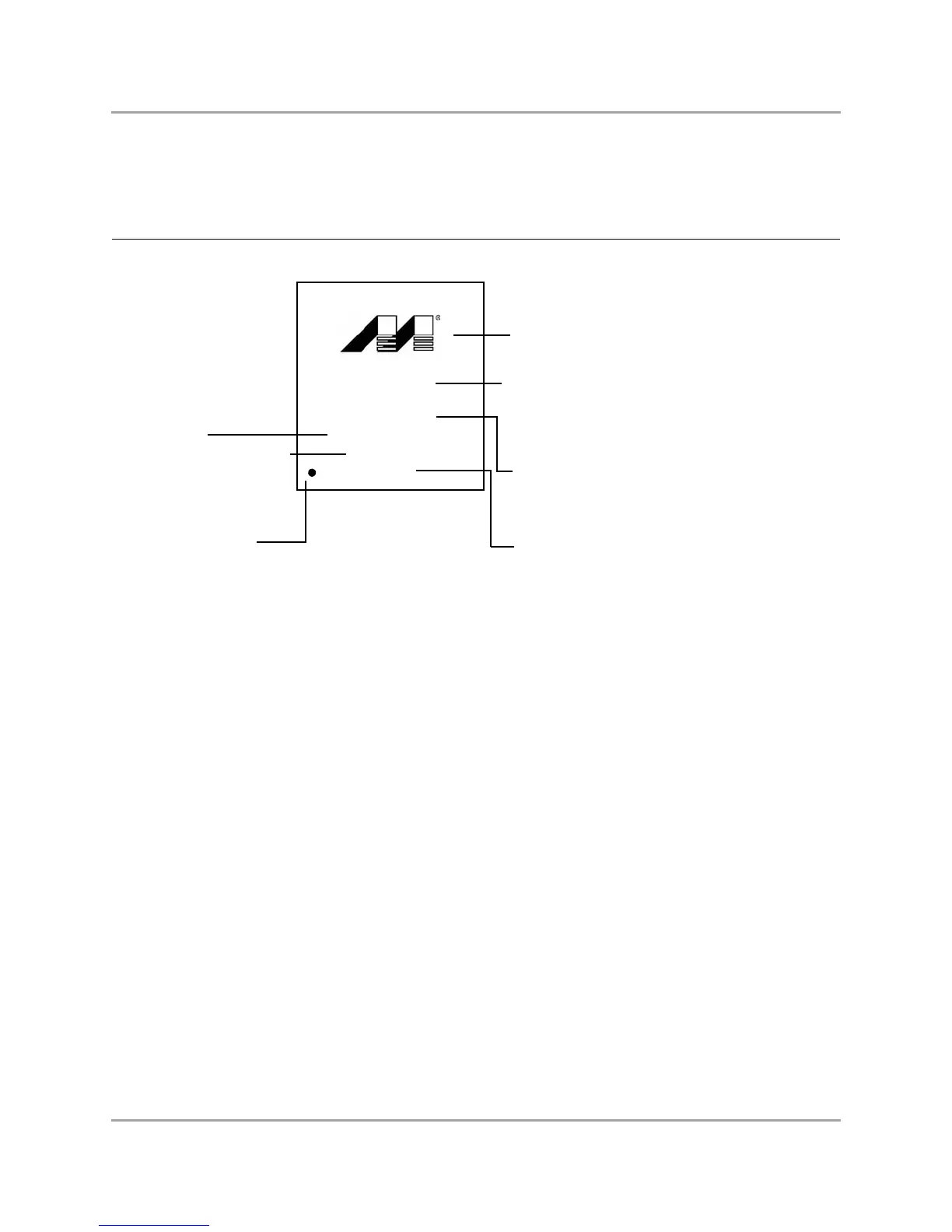

Figure 49: Commercial Package Marking and Pin 1 Location
88F6-BIAe
Lot Number
YYWW xx@
Country of Origin
88F6281-xx
XXXX
Marvell logo
Date code, custom code, assembly plant code
YYWW = Date code (YY = year, WW = Work Week)
xx = Custom code
@ = Assembly plant code
Country of origin code
(Contained in the mold ID or
marked as the last line on
the package.)
Part number prefix, package code, environmental code
88F6 = Part number prefix
BIA = Package code
e = Environmental code: 2 = Green
Note: The above drawing is not drawn to scale. Location of markings is approximate.
Pin 1 location
Temperature and speed code
C100 = Commercial, 1.0 GHz
C120 = Commercial, 1.2 GHz
C150 = Commercial, 1.5 GHz
Part number and die revision
code
88F6281 = Part number
xx = Die revision code
