Marvell Integrated Controller 88F6281 User Manual

88F6281
Integrated Controller
Hardware Specifications
Copyright © 2008 Marvell Doc. No. MV-S104859-U0 Rev. E
December 2, 2008, Preliminary Document Classification: Proprietary Information Page 3
PRODUCT OVERVIEW
The Marvell
®
88F6281 is a high-performance, highly integrated controller. The 88F6281 is based on the Marvell
proprietary, ARMv5TE-compliant, high-speed Sheeva
™
CPU core. The CPU core integrates a 256 KB L2 cache.
Sheeva™ CPU Core
16 KB-I, 16 KB-D
Up to 1.5 GHz
AES/DES/
3DES
SHA-1/MD5
Processor
Memory
Security Engine
L2
Cache
256 KB
DDR
SDRAM
Controller
JTAG Interface
PCI Express
SATA
USB 2.0
High Speed I/0
PCI Express x1
Dual SATA ports
USB 2.0 port

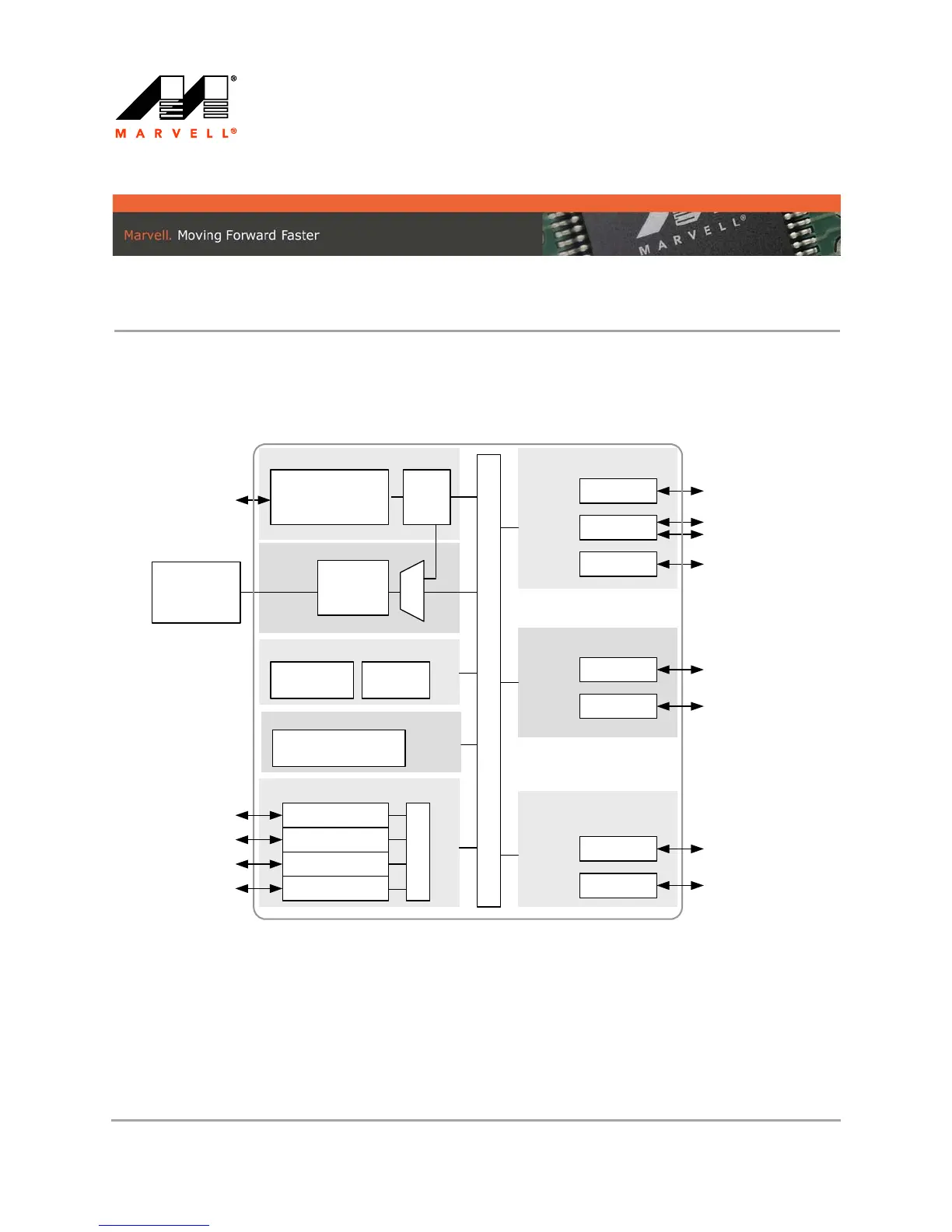

88F6281 Functional Block Diagram
External DDR
800 MHz
Misc
FXS / FXO
SPI, NAND, SDIO
Slow Bus
TDM
UART x2
GPIO, TWSI
Flash, SDIO
4 XOR/DMA channels
XOR Engine
Internal Bus
Gigabit Ethernet
IEEE 1588AVB support
GE
GE
MPEG2-TS
I
2
S / S/PDIF
Media Interfaces
MPEG TS
Audio

Marvell Integrated Controller 88F6281 Specifications

General

Brand	Marvell
Model	Integrated Controller 88F6281
Category	Controller
Language	English
