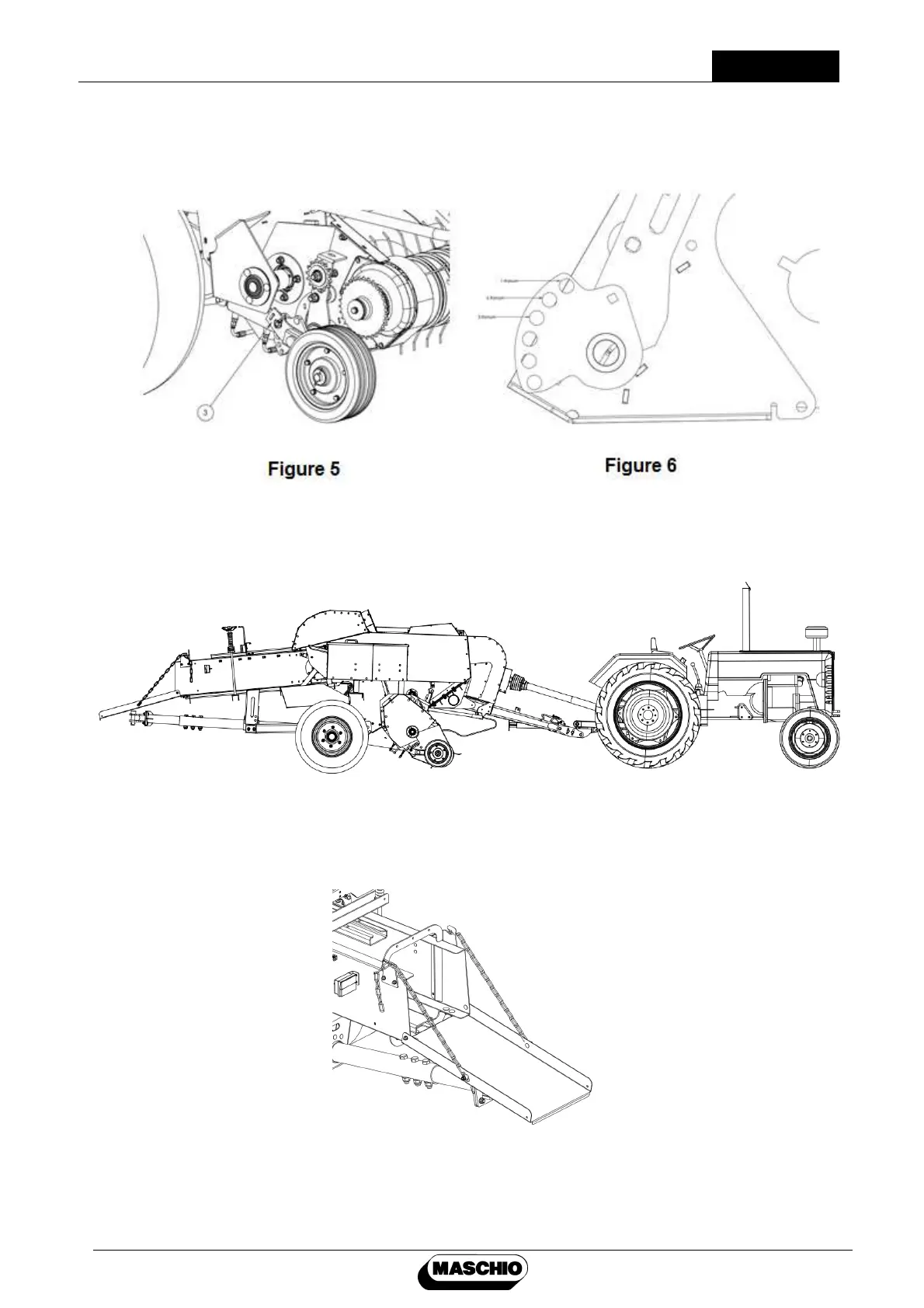

Collection wheel (Figure 5) is adjusted to positions 1, 2 or 3 from height adjustment
plate eyelets (Figure 6) using wheel positioning shaft according to terrain conditions. Lock the
safety pin after adjustment.
The machine looks as in Figure 7 in work position
.
Work Position
Figure 7
Tail bale drop plate should be opened as in Figure 8, and the inclination should be
adjusted using the chain to ensure a smooth drop on to the ground.
Figure 8
