Bring collection piston to closed position as shown in Figure 9.

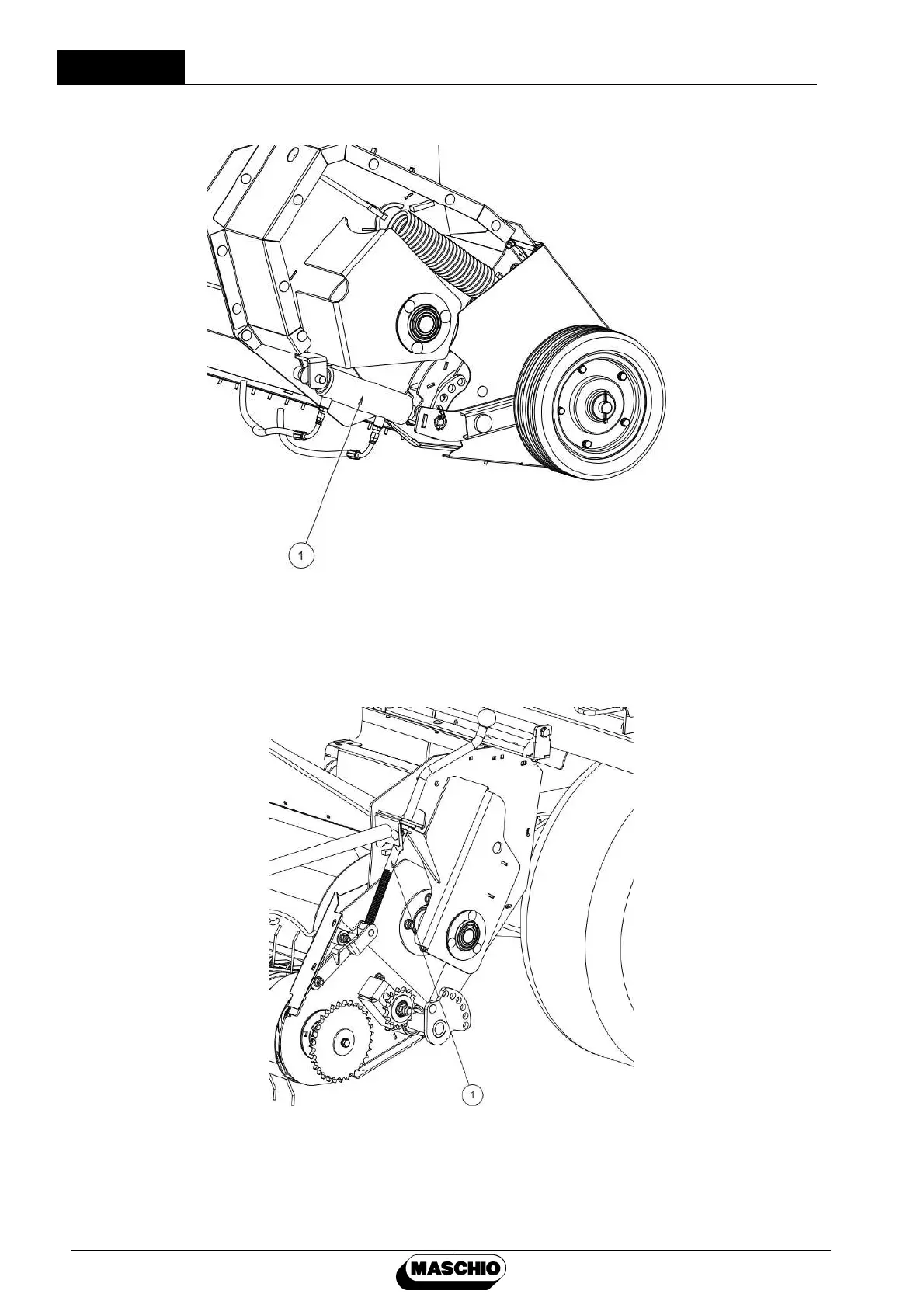

Figure 9
Collection unit is lowered and raised via collection piston. Distance of collection harrow
to the ground can be adjusted using height adjustment level of the collection unit (Figure 10).
Collection harrow height A from the ground must be 50mm-10mm. (Figure 11).
Figure 10
