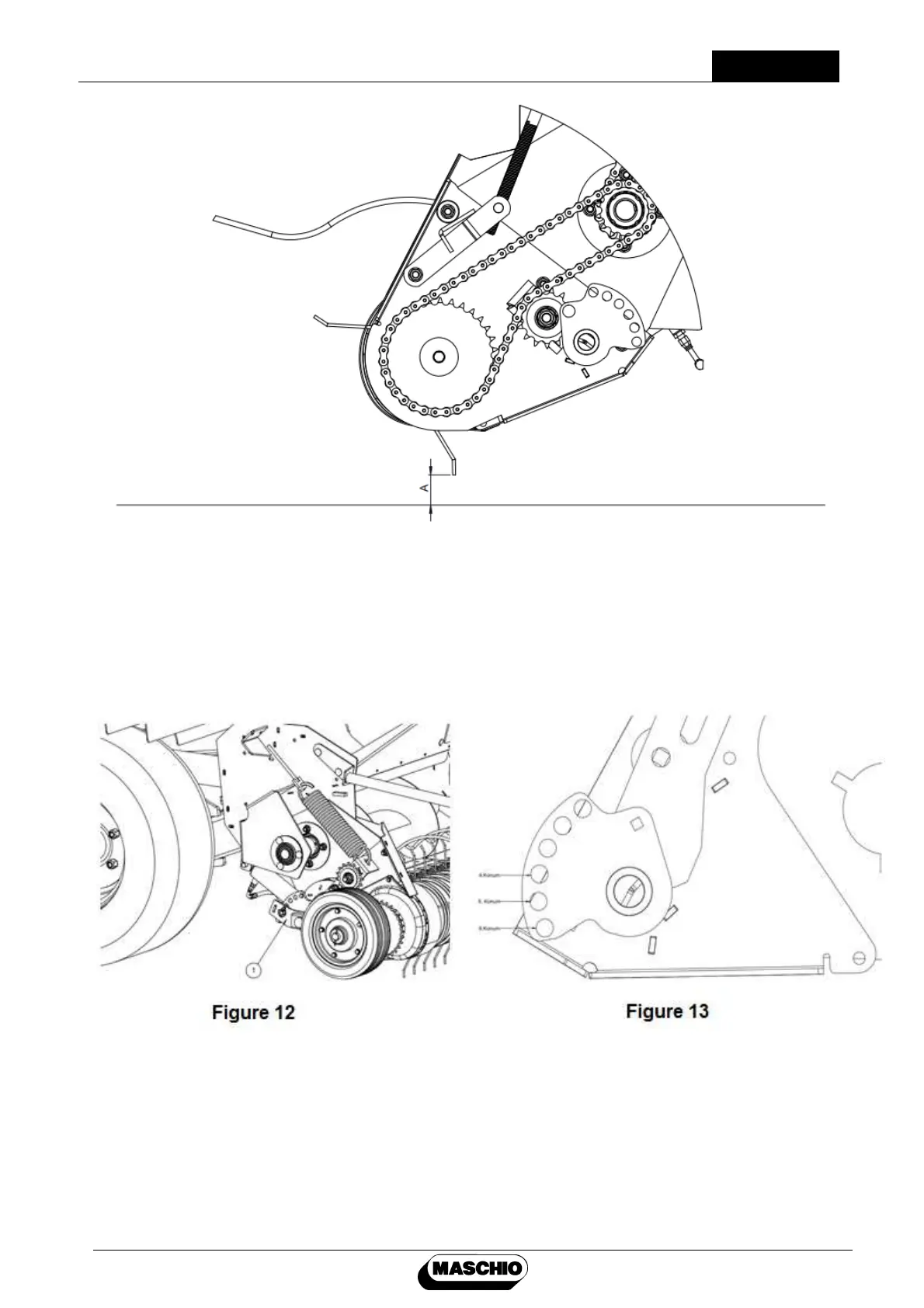

Figure 11
Collection wheel (Figure 12) is adjusted to positions 4, 5 or 6 from collection wheel
height adjustment plate eyelets (Figure 13) to upwards position via wheel positioning shaft.
After performing the adjustment, lock the safety pin.
