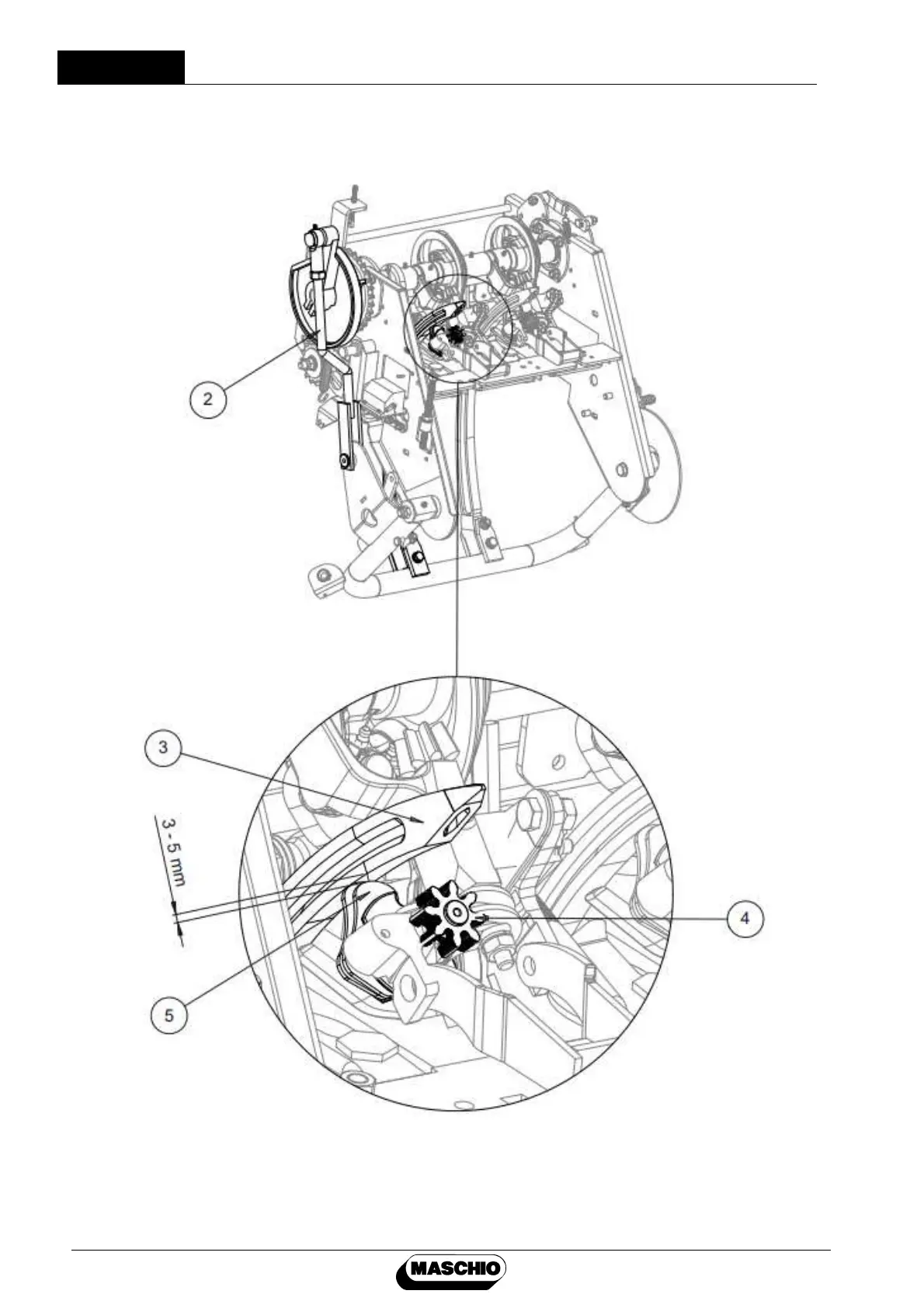

• Then, turn the needle saddle drive rod (2) and protrude needle tip (3) a little out of
pinion gear (4) top surface to check it. The distance between star plate (5) and needle
should be 3-5 mm in this position. (Figure 3.)
Figure 3
