OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
81
For Cormick Knotter Set;

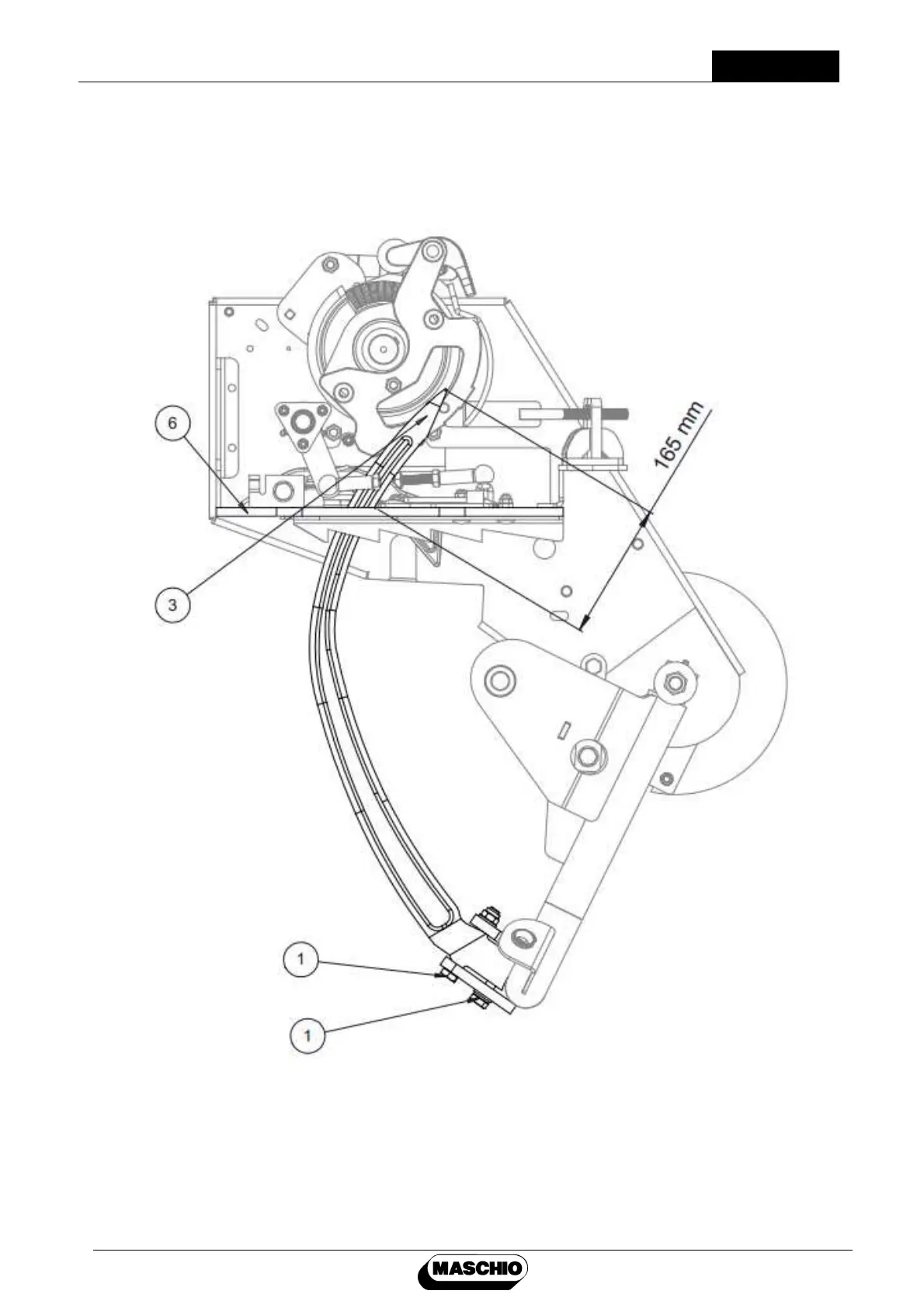

• Loosen needle adjustment bolts (1) and protrude needle (3) tip from needle saddle
drive rod at a distance of 165mm from the horizontal table. Figure 4.
Figure 4
