Matrox Display Wall – User Guide 31
Mura MPX-V16 and MPX-V8

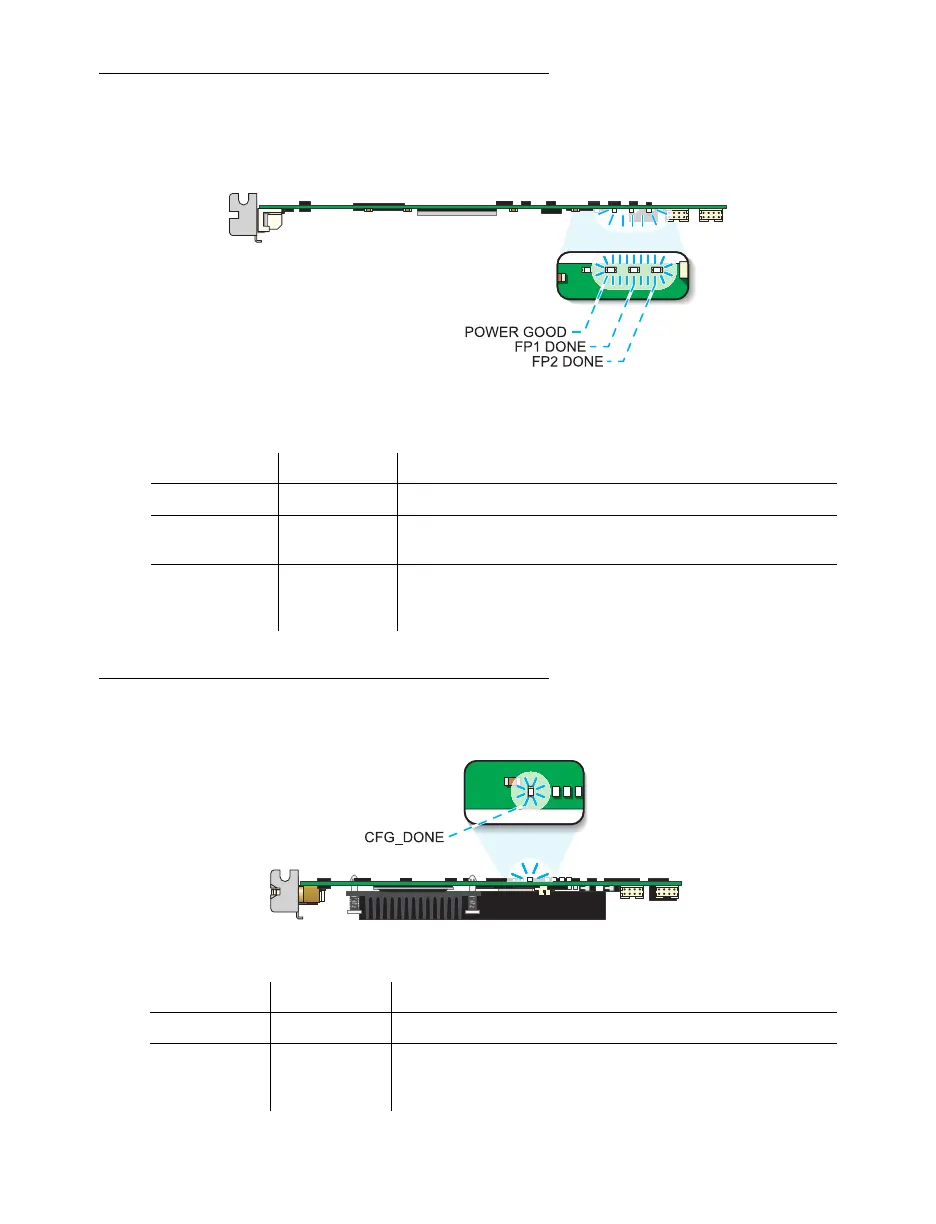

Your Matrox Mura MPX-V16 card has three LED indicators labeled (
Power Good
,
FP1 Done
,
FP2
Done
) and your Mura MPX-V8 card has two LED indicators labeled (
Power Good
,
FP2 Done
).
The following describes the behavior of these LED indicators.
Mura MPX-SDI
Your Matrox Mura MPX-SDI card has one LED indicator labeled (
CFG_Done
).
The following describes the behavior of these LED indicators.
LED Color Behavior
Power Good Green Card is properly powered.
FP1 Done or
FP2 Done
Green Card is active.
FP1 Done or
FP2 Done
Black (off)
Problem occured while programming your card. For more
information, contact your vendor (see “Customer support”,
page 94).
LED Color Behavior
CFG_Done Green Card is active.
CFG_Done Black (off)
Problem occured while programming your card. For more
information, contact your vendor (see “Customer support”,
page 94).
