78 Matrox Display Wall – User Guide
Matrox P690 Plus LP PCIe ×16 (dual-monitor cable)

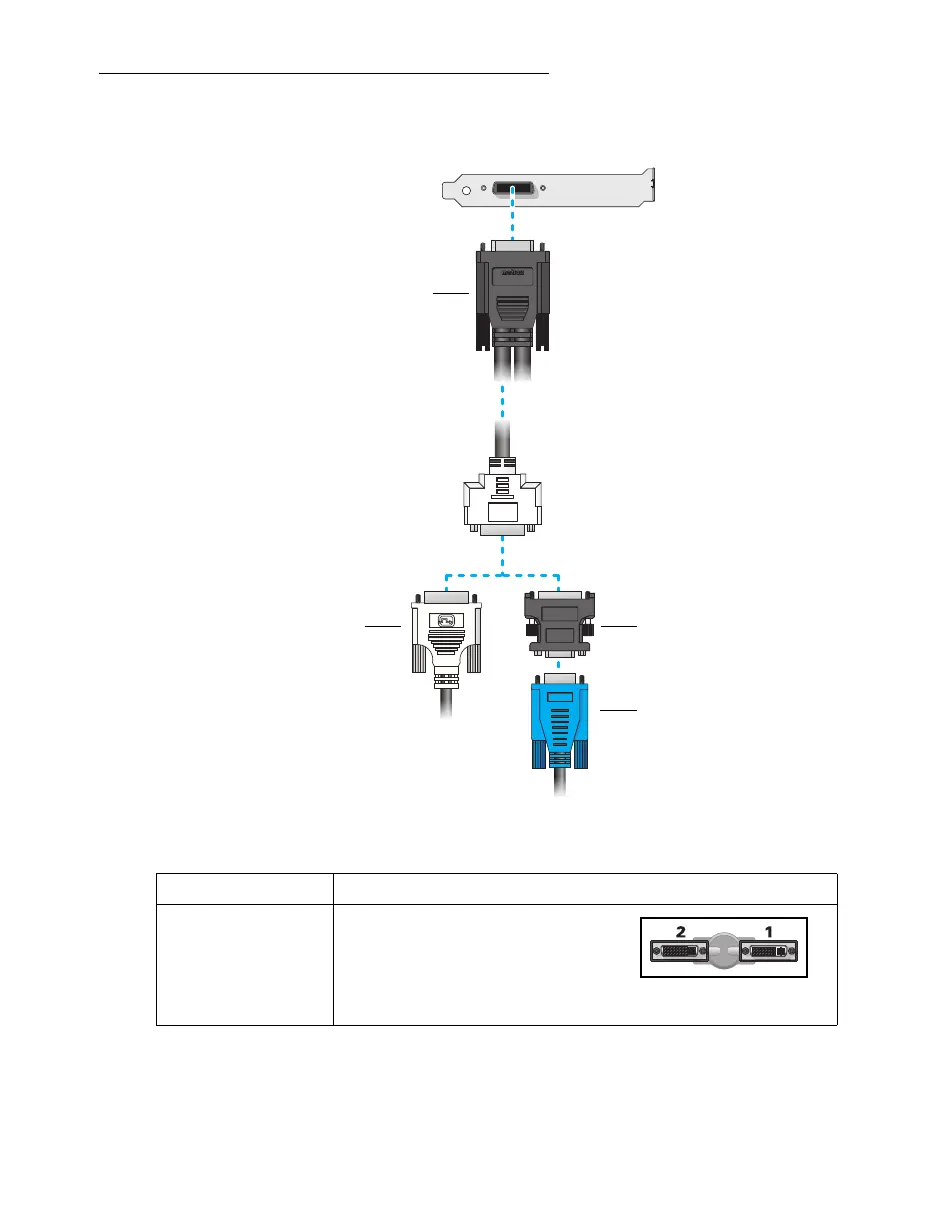

Connection overview
Description of cable
Cable Description
Output Matrox P690 cards use an LFH-60 to
dual-DVI cable to connect up to
two (2) monitors per card. Monitors
are numbered consecutively based
on which connector each is attached
to, starting with connector labeled 1.
Monitor
connector
(HD-15)
Monitor
connector
(DVI)
DVI to HD-15
adapter
Output cable
(LFH-60 to Dual-DVI)
